Allis Chalmers B-207
The Allis Chalmers B-207 is a tractor produced by Allis Chalmers Lawn Tractors. It is equipped with a 275 cc 16.8 ci engine. The listed engine power is Gasoline (listed): 7 hp / 5.2 kW. Transmission: 3 forward and 1 reverse. Operating weight: 530 lbs 240 kg.
Overview
 | 1968 - 1970
B Series |
|---|
Production | |
|---|---|
Manufacturer | Allis Chalmers |
Built in Lexington, South Carolina, USA | |
Variants | |
|---|---|
B-207E | electric start |
Allis Chalmers B-207 Engine | |
|---|---|
7HP Briggs & Stratton 275cc 1-cyl gasoline | |
Fuel tank | 0.88 gal
3.3 L |
Engine details ...  | |
Allis Chalmers B-207 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Wheelbase | 41 inches
104 cm |
Weight | 530 lbs
240 kg |
Front tire | 5.30-4.80x8 |
Rear tire | 9.50x8 |
Full dimensions and tires ...  | |
Links | |
|---|---|
Allis-Chalmers B-207: information, photos and old advertising literature at SimpleTractors.com |
References | |
|---|---|
 | |
Service Manual B Series Tractors (9003453) published in 1976 |
Engine
Engine Detail — 275 cc / 16.8 ci Gasoline
Manufacturer | Briggs & Stratton 170700 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 275 cc
16.8 ci |
Bore/Stroke | 3.00x2.375 inches
76 x 60 mm |
Power | 7 hp
5.2 kW |
Air cleaner | oiled foam |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.13 qts
1.1 L |
Transmission
Transmission — 3 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 3 forward and 1 reverse |
 | |
Dimensions
Allis Chalmers B-207 Tires | |
|---|---|
Lawn/turf front | 5.30-4.80x8 |
Lawn/turf rear | 9.50x8 |
Dimensions | |
|---|---|
Wheelbase | 41 inches
104 cm |
Length | 58 inches
147 cm |
Width | 31.5 inches
80 cm |
Height (steering wheel) | 35 inches
88 cm |
Weight | 530 lbs
240 kg |
Clearance (rear axle) | 5 inches
12 cm |
Attachments
36" Mower deck | |
|---|---|
Type | mid-mount Allis-Chalmers |
3-blade | |
Cutting width | 36 inches
91 cm |
Photos

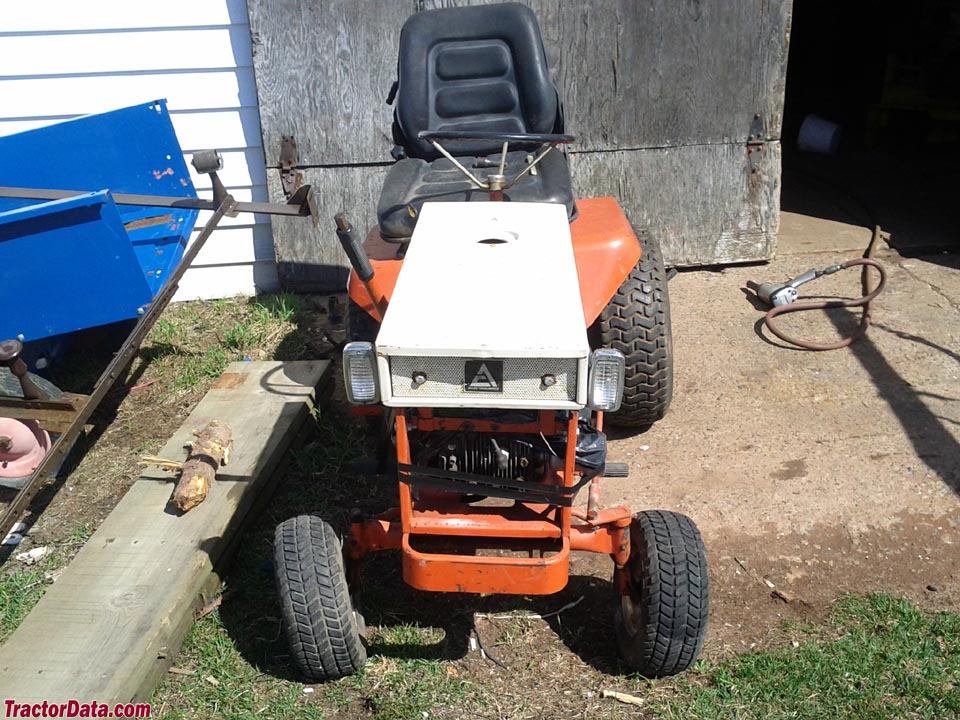

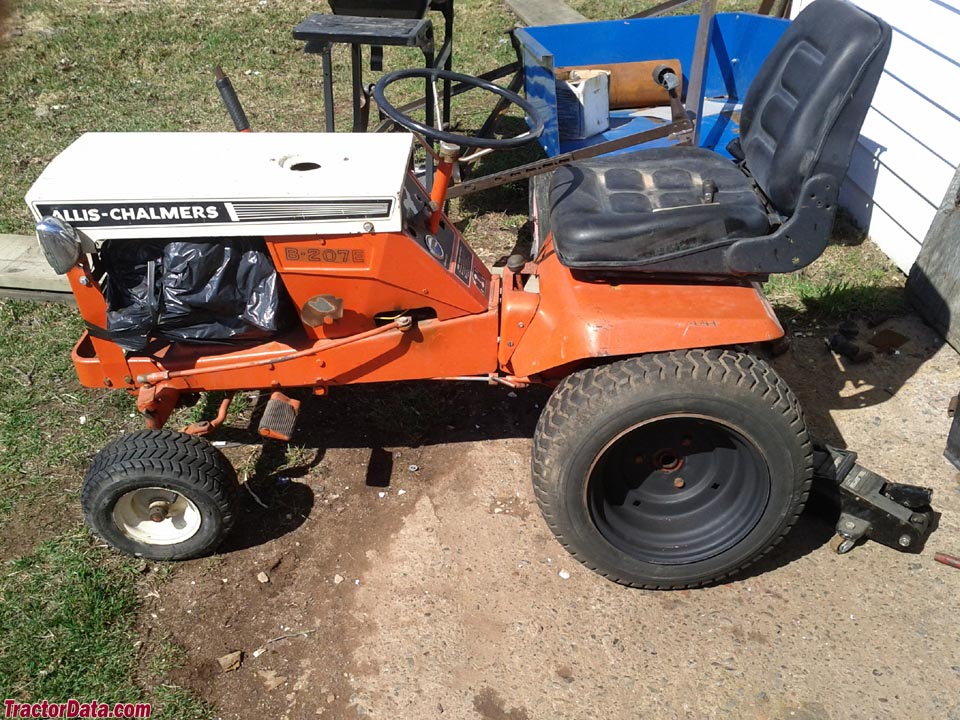

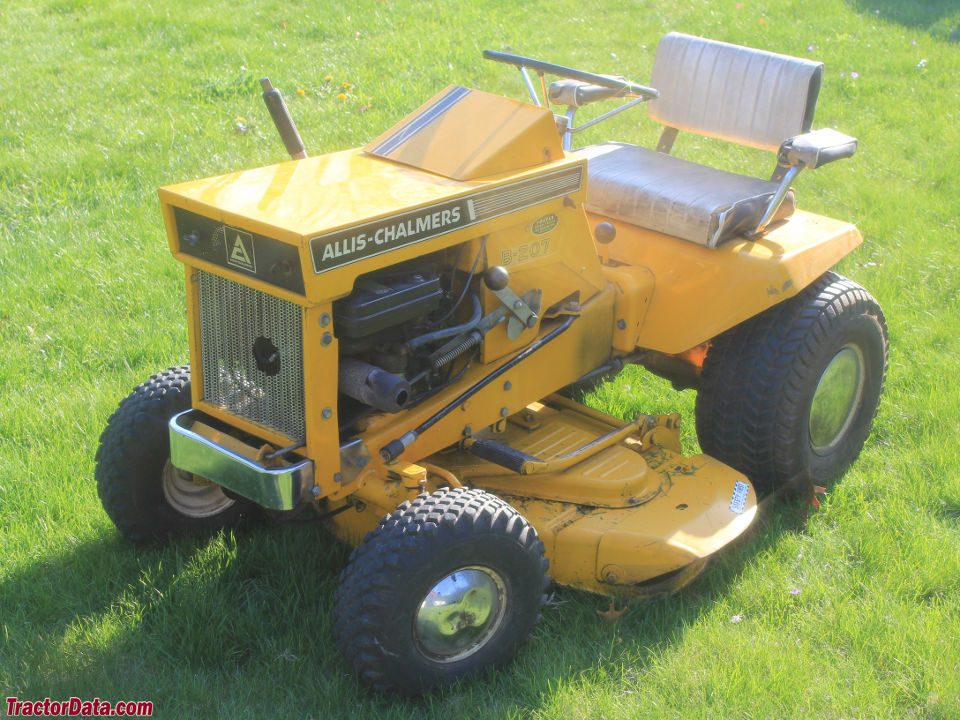

Allis-Chalmers B-207E

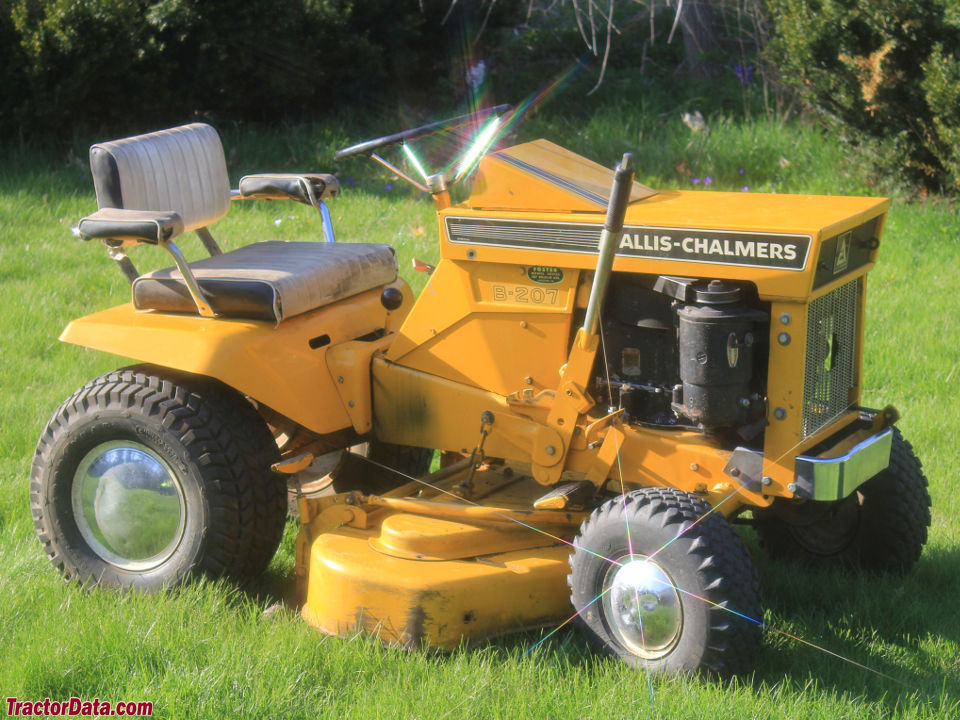

Allis-Chalmers B-207E

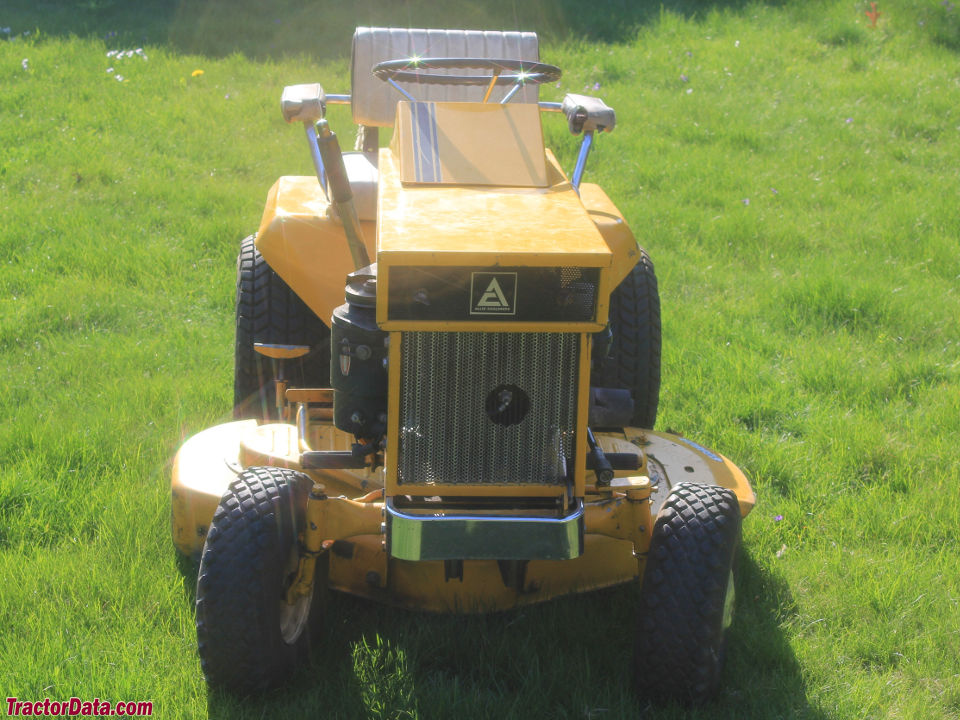

Allis-Chalmers B-207E

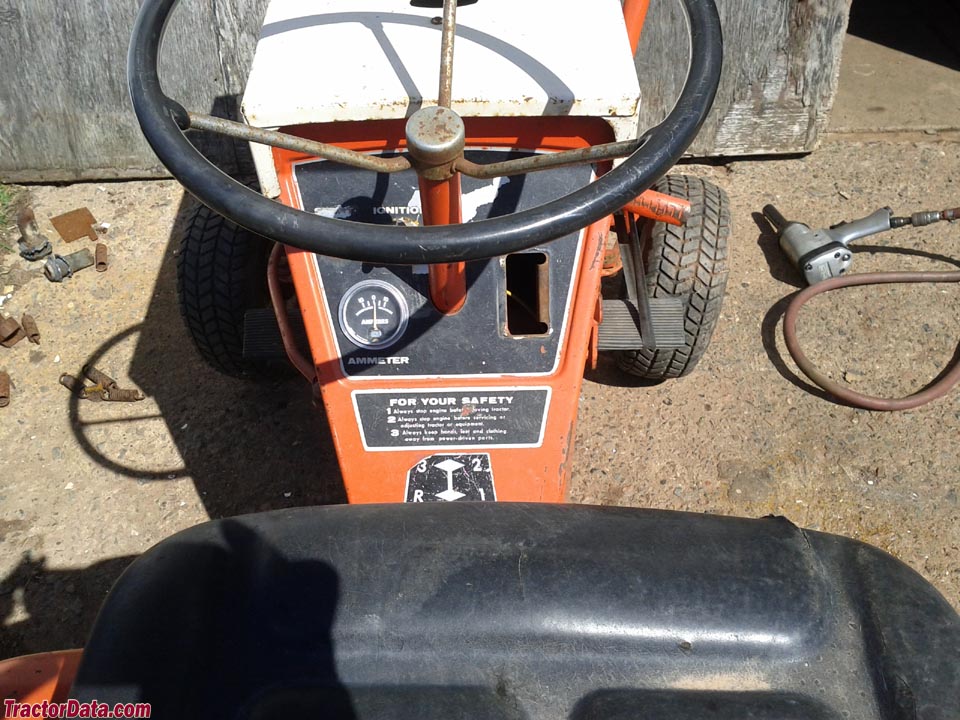

Allis-Chalmers B-207E operator station and controls.

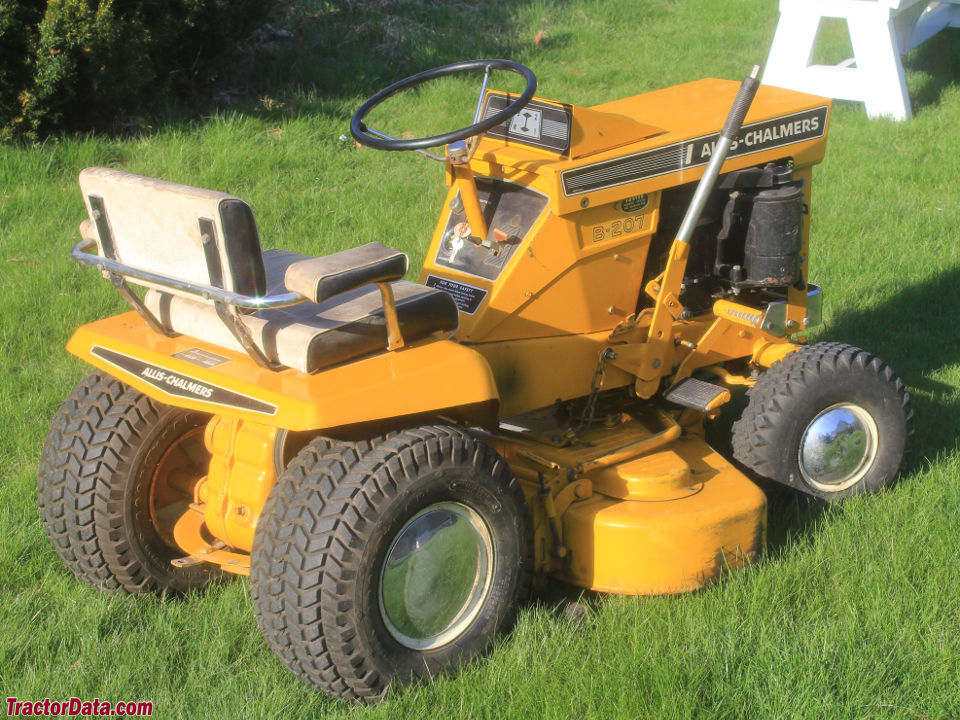

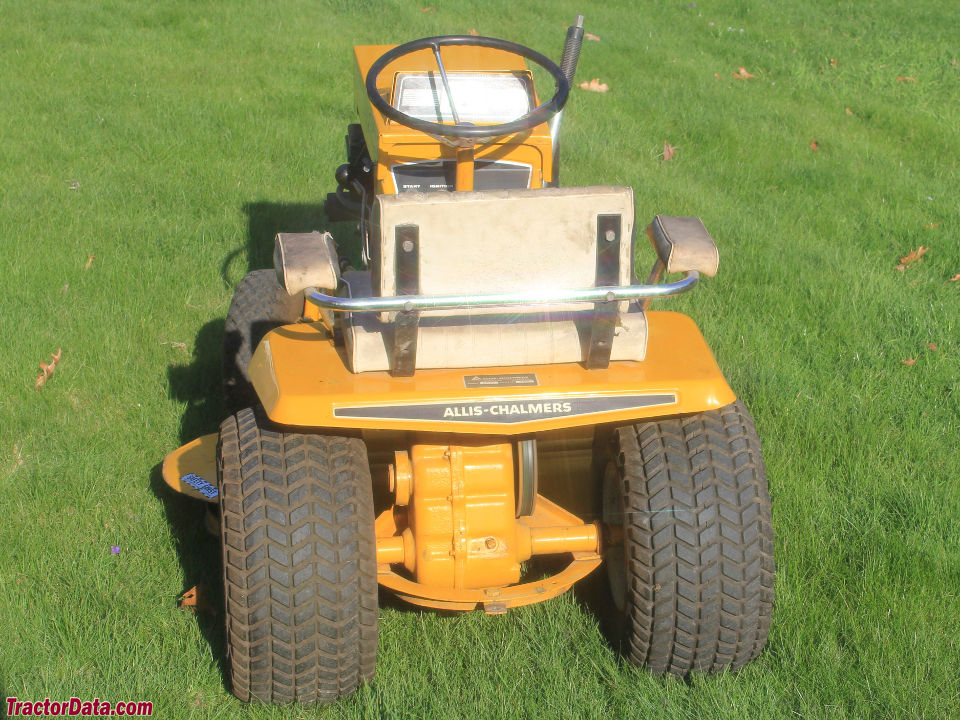

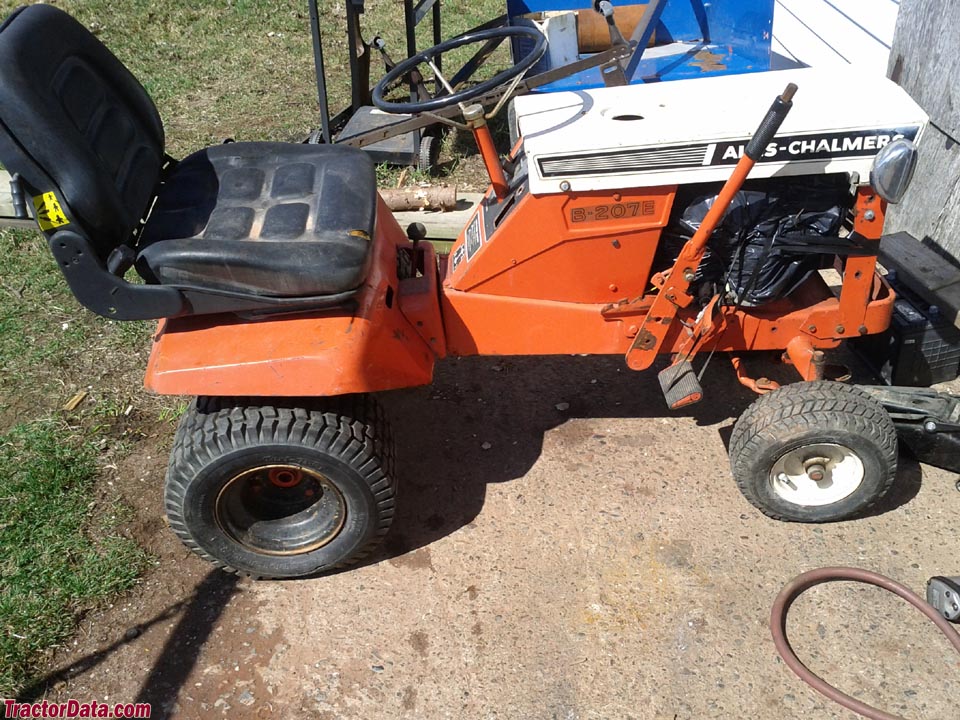

Allis-Chalmers B-207
Allis-Chalmers B-207
Allis-Chalmers B-207
Allis-Chalmers B-207
Allis-Chalmers B-207

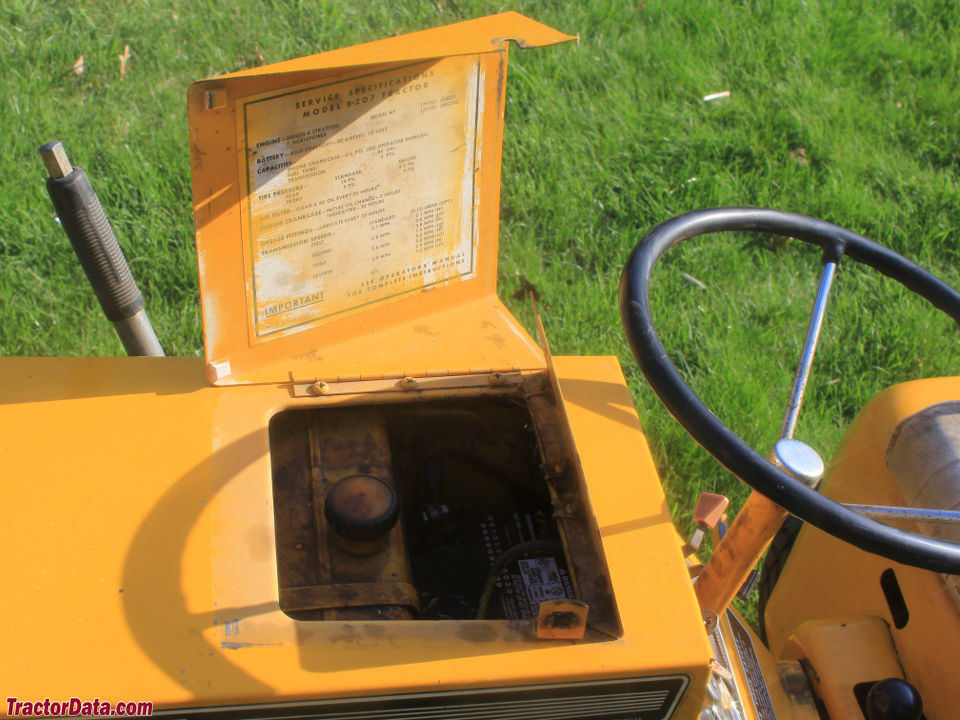

Hood hatch with service decal on the Allis B-207.
