Allis Chalmers Scamper 7
The Allis Chalmers Scamper 7 is a tractor produced by Allis Chalmers Lawn Tractors. It is equipped with a 245 cc 15 ci engine. The listed engine power is Gasoline (listed): 7 hp / 5.2 kW. Transmission: 5 forward and 1 reverse. Operating weight: 320 lbs 145 kg.
Engine Power
Gasoline (listed): 7 hp / 5.2 kW
Fuel & Capacities
0.5 gal
1.9 L
Transmission
5 forward and 1 reverse
Operating Weight
320 lbs
145 kg
Overview
 | 1970 - 1971
Riding lawn mower |
|---|
Production | |
|---|---|
Manufacturer | Allis Chalmers |
Riding lawn mower | |
Variants | |
|---|---|
1600017 | manual start |
160018 | electric start |
Allis Chalmers Scamper 7 Engine | |
|---|---|
7HP Tecumseh 245cc 1-cyl gasoline | |
Fuel tank | 0.5 gal
1.9 L |
Engine details ...  | |
Allis Chalmers Scamper 7 Transmission | |
|---|---|
5-speed | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station |
Dimensions & Tires | |
|---|---|
Weight | 320 lbs
145 kg |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 245 cc / 15 ci Gasoline
Manufacturer | Tecumseh V70 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 245 cc
15 ci |
Bore/Stroke | 2.75x2.53 inches
70 x 64 mm |
Power | 7 hp
5.2 kW |
Starter | manual recoil |
electric OptOptional | |
Starter volts | 12 |
Transmission
Transmission — 5 forward and 1 reverse
Gears | 5 forward and 1 reverse |
Dimensions
Allis Chalmers Scamper 7 Tires |
|---|
Dimensions | |
|---|---|
Height | 29.5 inches
74 cm |
Weight | 320 lbs
145 kg |
Attachments
36" Mower deck | |
|---|---|
Type | mid-mount Allis Chalmers |
2-blade | |
Cutting width | 36 inches
91 cm |
Overall width | 37 inches
93 cm |
Photos

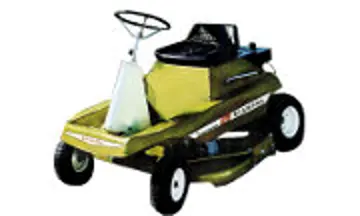

Allis Chalmers Scamper 7 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Allis Chalmers Lawn Tractors Allis Chalmers Scamper 7.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Allis Chalmers Lawn Tractors Allis Chalmers Scamper 7 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Allis Chalmers Lawn Tractors Allis Chalmers Scamper 7.
Converted Equivalents:
Horsepower (HP)7 hp
Kilowatts (kW)5.2 kW
Metric Horsepower (PS / CV)7.1 PS
