Allis Chalmers Homesteader 7
The Allis Chalmers Homesteader 7 is a tractor produced by Allis Chalmers Lawn Tractors. It is equipped with a 275 cc 16.79 ci engine. The listed engine power is Gasoline (gross): 7 hp / 5.2 kW. Transmission: 3 forward and 1 reverse. Operating weight: 450 lbs 204 kg.
Engine Power
Gasoline (gross): 7 hp / 5.2 kW
Fuel & Capacities
Gasoline
Transmission
3 forward and 1 reverse
Operating Weight
450 lbs
204 kg
Overview
 | 1971 - 1972
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Allis Chalmers |
Lawn tractor | |
Built in Lexington, South Carolina, USA | |
Allis Chalmers Homesteader 7 Engine | |
|---|---|
7HP Briggs & Stratton 275cc 1-cyl gasoline | |
Engine details ...  |
Allis Chalmers Homesteader 7 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual gear-and-sector |
Open operator station. | |
Dimensions & Tires | |
|---|---|
Wheelbase | 44 inches
111 cm |
Weight | 450 lbs
204 kg |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | generator |
Battery volts | 12 |
Battery AH | 40 |
References | |
|---|---|
 | |
Yardpower published in 1973, by Allis-Chalmers |
Engine
Engine Detail — 275 cc / 16.79 ci Gasoline
Manufacturer | Briggs & Stratton 170702 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 275 cc
16.79 ci |
Bore/Stroke | 3.00x2.375 inches
76 x 60 mm |
Power (gross) | 7 hp
5.2 kW |
Rated RPM | 3600 |
Starter volts | 12 |
Transmission
Transmission — 3 forward and 1 reverse gear
Type | gear |
Gears | 3 forward and 1 reverse |
 | |
Dimensions
Allis Chalmers Homesteader 7 Tires |
|---|
Dimensions | |
|---|---|
Wheelbase | 44 inches
111 cm |
Length | 57.125 inches
145 cm |
Width | 30 inches
76 cm |
Height (steering wheel) | 34.75 inches
88 cm |
Shipping weight | 450 lbs
204 kg |
Front tread | 22 inches
55 cm |
Rear tread | 23.5 inches
59 cm |
Attachments
Attachment overview | |
|---|---|
30" mid-mount mower deck | |
Blade |
30" Mower deck | |
|---|---|
Type | mid-mount Allis-Chalmers |
1-blade | |
Cutting width | 30 inches
76 cm |
Photos

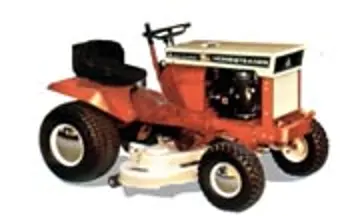

Allis Chalmers Homesteader 7 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Allis Chalmers Lawn Tractors Allis Chalmers Homesteader 7.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Allis Chalmers Lawn Tractors Allis Chalmers Homesteader 7 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Allis Chalmers Lawn Tractors Allis Chalmers Homesteader 7.
Converted Equivalents:
Horsepower (HP)7 hp
Kilowatts (kW)5.2 kW
Metric Horsepower (PS / CV)7.1 PS
