AMF 1010
The AMF 1010 is a tractor produced by Amf Lawn Tractors. It is equipped with a 389 cc 23.75 ci engine. The listed engine power is Gasoline (gross): 10 hp / 7.5 kW. Transmission: 4 forward and 1 reverse. Operating weight: 135 lbs 61 kg.
Engine Power
Gasoline (gross): 10 hp / 7.5 kW
Fuel & Capacities
1.75 gal
6.6 L
Transmission
4 forward and 1 reverse
Operating Weight
135 lbs
61 kg
Overview
 | 1971 - 1972
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | AMF |
Garden tractor | |
Built in Des Moines, Iowa, USA | |
Original price was $1,095 in 1971 | |
AMF 1010 Engine | |
|---|---|
10HP Tecumseh 389cc 1-cyl gasoline | |
Fuel tank | 1.75 gal
6.6 L |
Engine details ...  | |
AMF 1010 Transmission | |
|---|---|
4-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical drum brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | mechanical |
Dimensions & Tires | |
|---|---|
Wheelbase | 44 inches
111 cm |
Front tire | 6.50-8 |
Rear tire | 8.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Owner's Manual Model 1010 Tractor (1448-176-M2) published in 1971 |
Engine
Engine Detail — 389 cc / 23.75 ci Gasoline
Manufacturer | Tecumseh HH-100 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 389 cc
23.75 ci |
Bore/Stroke | 3.3125x2.75 inches
84 x 70 mm |
Power (gross) | 10 hp
7.5 kW |
Air cleaner | dry |
Idle RPM | 1650-3600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.6 qts
1.5 L |
Sparkplug | Champion J-8 |
Sparkplug gap | 0.028 inches
0.711 mm |
Intake valve clearance | 0.010 inches*Cold
0.254 mm |
Exhaust valve clearance | 0.020 inches*Cold
0.508 mm |
Transmission
Transmission — 4 forward and 1 reverse gear
Type | gear |
Gears | 4 forward and 1 reverse |
Clutch | mechanical idler pulley |
Oil capacity | 2 qts
1.9 L |
Four-speed gear transmission with five-speed vairator. | |
 | |
Dimensions
AMF 1010 Tires | |
|---|---|
Lawn/turf front | 6.50-8 |
Lawn/turf rear | 8.50-12 |
Dimensions | |
|---|---|
Wheelbase | 44 inches
111 cm |
Length | 67 inches
170 cm |
Width | 35.5 inches
90 cm |
Height (steering wheel) | 41.75 inches
106 cm |
Ground clearance | 7 inches
17 cm |
Front tread | 28 inches
71 cm |
Rear tread | 27 to 33 inches
68 to 83 cm |
Attachments
42" Mower deck | |
|---|---|
Type | mid-mount AMF |
3-blade | |
Cutting width | 42 inches
106 cm |
Weight | 135 lbs
61 kg |
Cut height | 1.5 to 3 inch
3 to 7 cm |
Photos

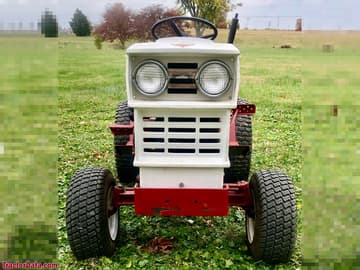

AMF 1010
AMF 1010
AMF 1010
AMF 1010
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Amf Lawn Tractors AMF 1010.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Amf Lawn Tractors AMF 1010 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Amf Lawn Tractors AMF 1010.
Converted Equivalents:
Horsepower (HP)10 hp
Kilowatts (kW)7.5 kW
Metric Horsepower (PS / CV)10.1 PS
