AMF 1414

The AMF 1414 is a tractor produced by Amf Lawn Tractors. It is equipped with a 512 cc 31.27 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: Sundstrand 90. Operating weight: 135 lbs 61 kg.

Engine Power
Gasoline (gross): 14 hp / 10.4 kW
Fuel & Capacities
2.75 gal 10.4 L
Transmission
Sundstrand 90
Operating Weight
135 lbs 61 kg

Overview

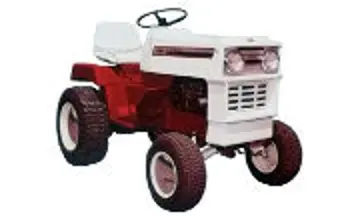

AMF 1414 tractor photo
1969 - 1973 Garden tractor
Production
Manufacturer
AMF
Garden tractor
Built in Des Moines, Iowa, USA
Original price was $1,295 in 1971
AMF 1414 Engine
14HP Kohler 512cc 1-cyl gasoline
Fuel tank
2.75 gal 10.4 L
Engine details ...
AMF 1414 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Power Take-off (PTO)
Mid PTO
independent
Clutch
electric
Dimensions & Tires
Wheelbase
46 inches 116 cm
Weight
750 lbs 340 kg
Front tire
16x6.50-8
Rear tire
23x8.50-12
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
Battery AH
46
References
1414 references literature
New AMFTRAC 1414 published in 1969
We think lawn mowers are for mowing. published in 1970, by AMF*
*Publication contains known errors.

Engine

Engine Detail — 512 cc / 31.27 ci Gasoline

Manufacturer
Kohler K321S
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled
Displacement
512 cc 31.27 ci
Bore/Stroke
3.50x3.25 inches 89 x 83 mm
Power (gross)
14 hp 10.4 kW
Air cleaner
dry
Starter
electric
Starter volts
12
Oil capacity
2 qts 1.9 L
Sparkplug gap
0.025 inches 0.635 mm

Transmission

Transmission — Sundstrand 90

Transmission
Sundstrand 90
Type
shaft-driven hydrostatic
Gears
infinite forward and reverse
Oil capacity
4.5 qts 4.3 L
1414 90 shaft-driven hydrostatic speeds

Dimensions

AMF 1414 Tires
Lawn/turf front
16x6.50-8
Lawn/turf rear
23x8.50-12
Dimensions
Wheelbase
46 inches 116 cm
Length
66.5 inches 168 cm
Width
38.25 inches 97 cm
Height (steering wheel)
43 inches 109 cm
Weight
750 lbs 340 kg
Front tread
29 inches 73 cm
Rear tread
30 inches 76 cm

Attachments

Attachment overview
42" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.
42" Mower deck
Type
mid-mount AMF
3-blade with hydraulic lift
Cutting width
42 inches 106 cm
Weight
135 lbs 61 kg
Cut height
1.5 to 3 inch 3 to 7 cm

Photos

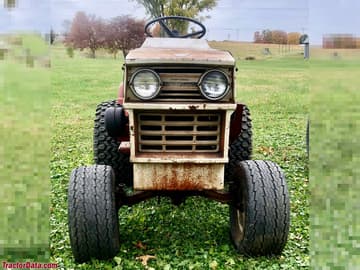

AMF 1414

AMF 1414

AMF 1414

AMF 1414

AMF 1414

AMF 1414

AMF 1414

AMF 1414

AMF 1414 with front-mount blade.

AMF 1414 with front-mount blade.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Amf Lawn Tractors AMF 1414.

Estimated Continuous Field Runtime: 3.8 hrs

Approximately 3.8 hours of continuous field operation at ~75% rated power on a full tank (2.8 gal / 10.4 L).

Estimated 75% Load Fuel Burn~0.7 gal/hr (2.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Amf Lawn Tractors AMF 1414 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Amf Lawn Tractors AMF 1414.

Converted Equivalents:

Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
