Antonio Carraro TRX 7800S

The Antonio Carraro TRX 7800S is a tractor produced by Antonio Carraro. It is equipped with a 202.5 ci 3.3 L engine. The listed engine power is Diesel (gross): 71 hp / 52.9 kW. Transmission: 16 forward and reverse. Operating weight: 4806 to 5115 pounds.

Engine Power

Diesel (gross): 71 hp / 52.9 kW

Fuel & Capacities

15.9 gal (ROPS) 60.2 L

Transmission

16 forward and reverse

Operating Weight

4806 to 5115 pounds

Overview

	Utility tractor	Utility tractor

Production
Manufacturer	Antonio Carraro
Utility tractor
Built in Italy

Variants
TX	single-direction
TRX	reversible

Antonio Carraro TRX 7800S Engine
Yanmar 3.3L 4-cyl diesel
Fuel tank	15.9 gal (ROPS) 60.2 L
	13.2 gal (Cab) 50.0 L
Engine details ...

Antonio Carraro TRX 7800S Transmission
16-speed
Transmission details ...

Antonio Carraro TRX 7800S Power
Engine (gross)	71 hp 52.9 kW

Mechanical
Four-wheel drive
Steering	hydraulic power
Hydraulic wet disc brakes
Reversible operator platform with two-post ROPS. Optional EasyStar six-post canopy with optional windscreens. Optional StarLight cab with air-conditioning.

Tractor hitch
Rear Type	I
Rear lift	4740 lbs 2150 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/540E (1.375)

Dimensions & Tires
Wheelbase	58.9 inches 149 cm
Weight	4806 to 5115 pounds
Front tire	250/80-18
Rear tire	250/80-18
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 202.5 ci / 3.3 L Diesel

Manufacturer	Yanmar
Fuel Type	Diesel
Configuration	4-cylinder 16-valve, liquid-cooled
Displacement	202.5 ci 3.3 L
Bore/Stroke	3.86x4.33 inches 98 x 110 mm
Emissions	Stage 3A
Rated Power (gross)	71 hp 52.9 kW
Fuel system	direct injection
Rated RPM	2500
Torque	174.1 lb-ft 236.1 Nm
Torque RPM	1600
Starter	electric
Starter volts	12

Transmission

Transmission — 16 forward and reverse

Gears

16 forward and reverse

Dimensions

Antonio Carraro TRX 7800S Tires
Ag front	250/80-18
	300/50/15.3
	320/65R18
	300/70R20
	280/70R18
	320/70R20
	400/55-17.5
Ag rear	250/80-18
	300/50/15.3
	320/65R18
	300/70R20
	280/70R18
	320/70R20
	400/55-17.5

Dimensions
Wheelbase	58.9 inches 149 cm
Length	133.6 inches 339 cm
Width	54.3 inches (min) 137 cm

Antonio Carraro TRX 7800S Weight
	4806 lbs (ROPS) 2180 kg
	4916 lbs (EasyStar) 2229 kg
	5115 lbs (StarLight) 2320 kg

Antonio Carraro TRX 7800S Height
ROPS	93.3 inches (ROPS) 236 cm
	83.7 inches (EasyStar) 212 cm
Cab	87.7 inches 222 cm

Photos

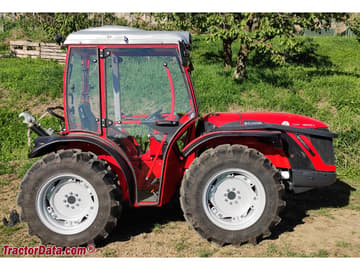

Antonio Carraro TRX 7800S

Recommended Implements & Sizing Guide

Engineering recommendations for Antonio Carraro TRX 7800S based on its 71 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Antonio Carraro TRX 7800S.

Estimated Continuous Field Runtime: 4.3 hrs

Approximately 4.3 hours of continuous field operation at ~75% rated power on a full tank (15.9 gal / 60.2 L).

Estimated 75% Load Fuel Burn~3.7 gal/hr (14 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
