Ariens Emperor 6 925013
The Ariens Emperor 6 925013 is a tractor produced by Ariens Lawn Tractors. It is equipped with a 221 cc 13.53 ci engine. The listed engine power is Gasoline (listed): 6 hp / 4.5 kW. Transmission: Disc-O-Matic.
Engine Power
Gasoline (listed): 6 hp / 4.5 kW
Fuel & Capacities
Gasoline
Transmission
Disc-O-Matic
Overview
 | 1975 - 1976
Emperor 925 SeriesRiding lawn mower
Emperor 925 Series
Riding lawn mower |
|---|
Production | |
|---|---|
Manufacturer | Ariens |
Riding lawn mower | |
Built in Brillion, Wisconsin, USA | |
Ariens Emperor 6 Engine | |
|---|---|
6HP Tecumseh 221cc 1-cyl gasoline | |
Engine details ...  |
Ariens Emperor 6 Transmission | |
|---|---|
6-speed friction disc | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | mechanical idler |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
References | |
|---|---|
 | |
Emperor Tractor and Attachments (PM 25000) published in 1978 |
Engine
Engine Detail — 221 cc / 13.53 ci Gasoline
Manufacturer | Tecumseh V60 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 221 cc
13.53 ci |
Bore/Stroke | 2.625x2.50 inches
67 x 64 mm |
Power | 6 hp
4.5 kW |
Starter type | manual recoil |
Transmission
Transmission — Disc-O-Matic
Transmission | Disc-O-Matic |
Type | friction disc |
Gears | 6 forward and 1 reverse |
Dimensions
Ariens Emperor 6 Tires |
|---|
Dimensions |
|---|
Attachments
Attachment overview | |
|---|---|
30" mid-mount mower deck | |
Blade |
30" Mower deck | |
|---|---|
Type | mid-mount Ariens |
1-blade | |
Cutting width | 30 inches
76 cm |
Photos

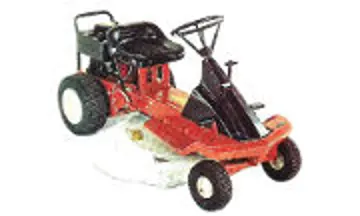

Ariens Emperor 6 925013 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Ariens Lawn Tractors Ariens Emperor 6 925013.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Ariens Lawn Tractors Ariens Emperor 6 925013 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Ariens Lawn Tractors Ariens Emperor 6 925013.
Converted Equivalents:
Horsepower (HP)6 hp
Kilowatts (kW)4.5 kW
Metric Horsepower (PS / CV)6.1 PS
