Ariens Fairway 5 12M5

The Ariens Fairway 5 12M5 is a tractor produced by Ariens Lawn Tractors. The listed engine power is Gasoline (listed): 5 hp / 3.7 kW. Transmission: Disc-O-Matic. Operating weight: 260 lbs 117 kg.

Engine Power
Gasoline (listed): 5 hp / 3.7 kW
Fuel & Capacities
Gasoline
Transmission
Disc-O-Matic
Operating Weight
260 lbs 117 kg

Overview

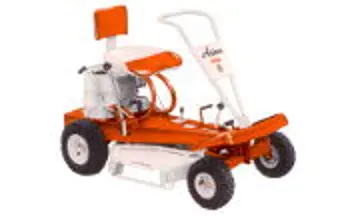

Ariens Fairway 5 12M5 tractor photo
1967 - 1976 Model year 1967-196819691970-19711972-1976 Fairway SeriesRiding lawn mower Fairway Series Riding lawn mower
Production
Manufacturer
Ariens
Riding lawn mower
Built in Brillion, Wisconsin, USA
Original price was $350 in 1968
Ariens Fairway 5 Engine
5HP Tecumseh 1-cyl gasoline
Engine details ...
Ariens Fairway 5 Transmission
4-speed friction disk
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.
Power Take-off (PTO)
Mid PTO
independent
Clutch
mechanical idler
Dimensions & Tires
Wheelbase
37.5 inches 95 cm
Weight
260 lbs 117 kg
Full dimensions and tires ...
References
Fairway 5 12M5 references literature
Riding Mowers published in 1968, by Ariens

Engine

Engine Detail — Gasoline

Manufacturer
Tecumseh
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled vertical-shaft
Power
5 hp 3.7 kW
Starter type
manual recoil

Transmission

Transmission — Disc-O-Matic

Transmission
Disc-O-Matic
Type
friction disk
Gears
4 forward and 1 reverse
Fairway 5 12M5 Disc-O-Matic friction disk speeds

Dimensions

Ariens Fairway 5 Tires
Dimensions
Wheelbase
37.5 inches 95 cm
Length
52 inches 132 cm
Width
24 inches 60 cm
Height (steering wheel)
35 inches 88 cm
Shipping weight
260 lbs 117 kg

Attachments

26" Mower deck
Type
mid-mount Ariens
1-blade
Cutting width
26 inches 66 cm
Overall width
28.5 inches 72 cm
Cut height
1.5 to 3.25 inch 3 to 8 cm

Photos

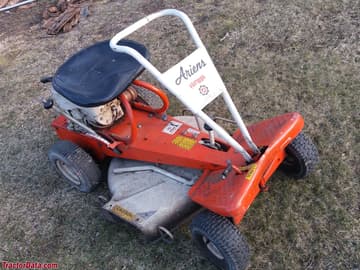

Ariens Fairway 5 12M5

Ariens Fairway 5 12M5

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Ariens Lawn Tractors Ariens Fairway 5 12M5.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Ariens Lawn Tractors Ariens Fairway 5 12M5 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Ariens Lawn Tractors Ariens Fairway 5 12M5.

Converted Equivalents:

Horsepower (HP)5 hp
Kilowatts (kW)3.7 kW
Metric Horsepower (PS / CV)5.1 PS
