Ariens FM26

The Ariens FM26 is a tractor produced by Ariens Lawn Tractors. It is equipped with a 222 cc 13.55 ci engine. The listed engine power is Gasoline (listed): 6 hp / 4.5 kW. Transmission: Disc-O-Matic. Operating weight: 250 lbs 113 kg.

Overview

	1987 - 1989 Fairway SeriesRiding lawn mower Fairway Series Riding lawn mower

Production
Manufacturer	Ariens
Riding lawn mower
Built in Brillion, Wisconsin, USA
Original price	$980 (1987 recoil )
	$1,080 (1987 electric )

Variants
912010	FM26 recoil start
912011	FM26e electric start

Ariens FM26 Engine
6HP Tecumseh 222cc 1-cyl gasoline
Fuel tank	0.5 gal 1.9 L
Engine details ...

Ariens FM26 Transmission
4-speed friction disk
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	mechanical idler

Dimensions & Tires
Wheelbase	37.5 inches 95 cm
Weight	250 lbs 113 kg
Front tire	4x4.10/3.5
Rear tire	13x5.00-6
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Mowers - Tractors - Tillers published in 1987, by Ariens
Tractors published in 1988, by Ariens

Engine

Engine Detail — 222 cc / 13.55 ci Gasoline

Manufacturer	Tecumseh TVM140
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	222 cc 13.55 ci
Bore/Stroke	2.63x2.50 inches 67 x 64 mm
Power	6 hp 4.5 kW
Starter	manual recoil
	electric OptOptional
Starter volts	12

Transmission

Transmission — Disc-O-Matic

Transmission	Disc-O-Matic
Type	friction disk
Gears	4 forward and 1 reverse

Dimensions

Ariens FM26 Tires
Lawn/turf front	4x4.10/3.5
Lawn/turf rear	13x5.00-6

Dimensions
Wheelbase	37.5 inches 95 cm
Length	52 inches 132 cm
Height (steering wheel)	38 inches 96 cm
Weight	250 lbs 113 kg

Attachments

26" Mower deck
Type	mid-mount Ariens
	1-blade
Cutting width	26 inches 66 cm
Overall width	38 inches 96 cm
Cut height	1.5 to 3.5 inch 3 to 8 cm

Photos

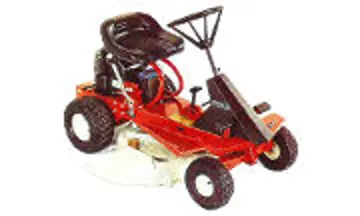

Ariens FM26 tractor photo
