Ariens Fairway 4 12M4
The Ariens Fairway 4 12M4 is a tractor produced by Ariens Lawn Tractors. The listed engine power is Gasoline (listed): 4 hp / 3.0 kW. Transmission: Disc-O-Matic. Operating weight: 218 lbs 98 kg.
Engine Power
Gasoline (listed): 4 hp / 3.0 kW
Fuel & Capacities
Gasoline
Transmission
Disc-O-Matic
Operating Weight
218 lbs
98 kg
Overview
 | 1966 - 1968
Fairway SeriesRiding lawn mower
Fairway Series
Riding lawn mower |
|---|
Production | |
|---|---|
Manufacturer | Ariens |
Riding lawn mower | |
Built in Brillion, Wisconsin, USA | |
Original price was $280 in 1968 | |
Ariens Fairway 4 Engine | |
|---|---|
4HP Tecumseh 1-cyl gasoline | |
Engine details ...  |
Ariens Fairway 4 Transmission | |
|---|---|
4-speed friction disk | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical band brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | mechanical idler |
Dimensions & Tires | |
|---|---|
Wheelbase | 37.5 inches
95 cm |
Weight | 218 lbs
98 kg |
Front tire | 10x2.75 |
Rear tire | 4.10/3.50x6 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Riding Mowers published in 1965, by Ariens | |
Riding Mowers published in 1968, by Ariens |
Engine
Engine Detail — Gasoline
Manufacturer | Tecumseh |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Power | 4 hp
3.0 kW |
Starter type | manual recoil |
Transmission
Transmission — Disc-O-Matic
Transmission | Disc-O-Matic |
Type | friction disk |
Gears | 4 forward and 1 reverse |
 | |
Dimensions
Ariens Fairway 4 Tires | |
|---|---|
Lawn/turf front | 10x2.75 |
Lawn/turf rear | 4.10/3.50x6 |
Dimensions | |
|---|---|
Wheelbase | 37.5 inches
95 cm |
Length | 52 inches
132 cm |
Width | 24 inches
60 cm |
Height (steering wheel) | 35 inches
88 cm |
Shipping weight | 218 lbs
98 kg |
Attachments
26" Mower deck | |
|---|---|
Type | mid-mount Ariens |
1-blade | |
Cutting width | 26 inches
66 cm |
Overall width | 28.5 inches
72 cm |
Cut height | 1.5 to 3.25 inch
3 to 8 cm |
Photos

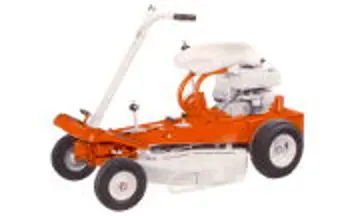

Ariens Fairway 4 12M4 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Ariens Lawn Tractors Ariens Fairway 4 12M4.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Ariens Lawn Tractors Ariens Fairway 4 12M4 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Ariens Lawn Tractors Ariens Fairway 4 12M4.
Converted Equivalents:
Horsepower (HP)4 hp
Kilowatts (kW)3 kW
Metric Horsepower (PS / CV)4.1 PS
