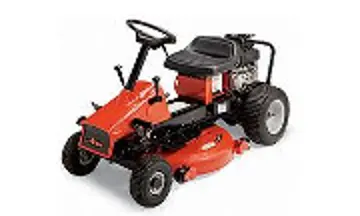

Ariens RM1028

The Ariens RM1028 is a tractor produced by Ariens Lawn Tractors. It is equipped with a 465 cc 28.4 ci engine. The listed engine power is Gasoline (gross): 10 hp / 7.5 kW. Transmission: Disc-O-Matic. Operating weight: 320 lbs 145 kg.

Overview

	2000 - 2002 927 SeriesRiding lawn mower 927 Series Riding lawn mower

Production
Manufacturer	Ariens
Riding lawn mower
Built in Brillion, Wisconsin, USA
Original price was $1,499 in 2002

Variants

Ariens RM1028 Engine
10HP Briggs & Stratton 465cc 1-cyl gasoline
Fuel tank	0.75 gal 2.8 L
Engine details ...

Ariens RM1028 Transmission
6-speed friction disc
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	idler pulley

Dimensions & Tires
Wheelbase	45.5 inches 115 cm
Weight	320 lbs 145 kg
Front tire	4.10-3.50x4.00
Rear tire	16.6x5x8.00
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 465 cc / 28.4 ci Gasoline

Manufacturer	Briggs & Stratton 28B707
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	465 cc 28.4 ci
Bore/Stroke	3.44x3.06 inches 87 x 78 mm
Power (gross)	10 hp 7.5 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Disc-O-Matic

Transmission	Disc-O-Matic
Type	friction disc
Gears	6 forward and 1 reverse

Dimensions

Ariens RM1028 Tires
Lawn/turf front	4.10-3.50x4.00
Lawn/turf rear	16.6x5x8.00

Dimensions
Wheelbase	45.5 inches 115 cm
Length	62.5 inches 158 cm
Height (steering wheel)	39 inches 99 cm
Weight	320 lbs 145 kg

Attachments

Attachment overview
28" mid-mount mower deck
Blade

28" Mower deck
Type	mid-mount Ariens
	1-blade with manual lift
Cutting width	28 inches 71 cm
Overall width	35 inches 88 cm
Cut height	1.5 to 3.5 inch 3 to 8 cm
Cut positions	5

Photos

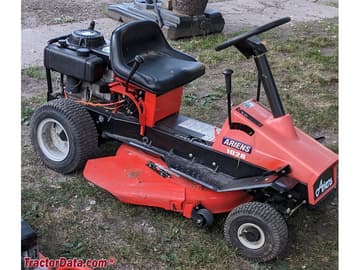

Ariens RM1028
