Ariens GT16 931023
The Ariens GT16 931023 is a tractor produced by Ariens Lawn Tractors. It is equipped with a 588 cc 35.90 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW. Transmission: infinite forward and reverse. Operating weight: 500 lbs 226 kg.
Engine Power
Gasoline (gross): 16 hp / 11.9 kW
Fuel & Capacities
4.5 gal
17.0 L
Transmission
infinite forward and reverse
Operating Weight
500 lbs
226 kg
Overview
 | 1979 - 1982
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Ariens |
Garden tractor | |
Built in Brillion, Wisconsin, USA | |
Ariens GT16 Engine | |
|---|---|
16HP Kohler 588cc 1-cyl gasoline | |
Fuel tank | 4.5 gal
17.0 L |
Engine details ...  | |
Ariens GT16 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent OptOptional |
Clutch | electric |
Front PTO | independent |
Clutch | electric |
Front PTO Type | 3600 |
Dimensions & Tires | |
|---|---|
Wheelbase | 48 inches
121 cm |
Weight | 895 lbs
405 kg |
Front tire | 16x6.50-8 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 15 |
Battery CCA | 255 |
Battery volts | 12 |
Battery AH | 39 |
References | |
|---|---|
 | |
Lawn & Garden Tractors published in 1979, by Ariens | |
Lawn and Garden Tractors published in 1980, by Ariens |
Engine
Engine Detail — 588 cc / 35.90 ci Gasoline
Manufacturer | Kohler K341 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 588 cc
35.90 ci |
Bore/Stroke | 3.75x3.25 inches
95 x 83 mm |
Power (gross) | 16 hp
11.9 kW |
Fuel use | 1.50 gal/hour
5.7 l/hour |
Air cleaner | dry element with foam precleaner |
Compression | 7.3:1 |
Starter | electric |
Starter volts | 12 |
Sparkplug gap | 0.025 inches
0.635 mm |
Oil capacity | 2 qts
1.9 L |
Transmission
Transmission — infinite forward and reverse hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 5.5 qts
5.2 L |
Oil type | SAE 5W-30 |
 | |
Dimensions
Ariens GT16 Tires | |
|---|---|
Lawn/turf front | 16x6.50-8 |
Lawn/turf rear | 23x10.50-12 |
Dimensions | |
|---|---|
Wheelbase | 48 inches
121 cm |
Length | 74.75 inches
189 cm |
Width | 43 inches
109 cm |
Height (steering wheel) | 47.75 inches
121 cm |
Shipping weight | 895 lbs
405 kg |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
48" mid-mount mower deck | |
Snowblower | |
Blade | |
Front-end loader | |
Backhoe | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Brantly LD6 Backhoe | |
|---|---|
Backhoe type | Brantly LD6 Backhoe |
Weight | 500 lbs
226 kg |
Transport height | 72 inches
182 cm |
2-Foot flat digging depth | 72 inches
182 cm |
Reach from pivot | 108 inches
274 cm |
Swing Arc | 135° |
Bucket force | 3000 lbs
1360 kg |
Dipperstick force | 1560 lbs
707 kg |
Photos

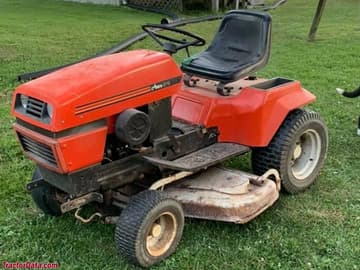

Ariens GT16 931023
Recommended Implements & Sizing Guide
Engineering recommendations for Ariens Lawn Tractors Ariens GT16 931023 based on its 16 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Ariens Lawn Tractors Ariens GT16 931023.
Estimated Continuous Field Runtime: 5.4 hrs
Approximately 5.4 hours of continuous field operation at ~75% rated power on a full tank (4.5 gal / 17 L).
Estimated 75% Load Fuel Burn~0.8 gal/hr (3.1 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Ariens Lawn Tractors Ariens GT16 931023 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Ariens Lawn Tractors Ariens GT16 931023.
Converted Equivalents:
Horsepower (HP)16 hp
Kilowatts (kW)11.9 kW
Metric Horsepower (PS / CV)16.2 PS
Direct Competitor Comparison
Compare Ariens GT16 931023 against same-era industry alternatives in the same horsepower class.
Current Model
Ariens Lawn Tractors
Ariens GT16 931023
Engine Power:Gasoline (gross): 16 hp / 11.9 kW
★ Baseline Reference
