Ariens HT16 934001

The Ariens HT16 934001 is a tractor produced by Ariens Lawn Tractors. It is equipped with a 655 cc 40 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW. Transmission: 4 forward and 1 reverse. Operating weight: 547 lbs 248 kg.

Engine Power

Gasoline (gross): 16 hp / 11.9 kW

Fuel & Capacities

4.5 gal 17.0 L

Transmission

4 forward and 1 reverse

Operating Weight

547 lbs 248 kg

Overview

	1982 - 1995 Model year 1982-198719881989-19931994-1995 Garden tractor

Production
Manufacturer	Ariens
Garden tractor
Built in Brillion, Wisconsin, USA

Ariens HT16 Engine
16HP Briggs & Stratton 655cc 2-cyl gasoline
Fuel tank	4.5 gal 17.0 L
Engine details ...

Ariens HT16 Transmission
4-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Disc brakes
Open operator station.

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Mid PTO	independent
Clutch	mechanical pulley

Dimensions & Tires
Wheelbase	48 inches 121 cm
Weight	547 lbs 248 kg
Front tire	15x6.00-6
Rear tire	23x8.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References

HT16 Garden Tractor published in 1983, by Ariens
Mowers - Tractors - Tillers published in 1987, by Ariens
Tractors published in 1988, by Ariens

Engine

Engine Detail — 655 cc / 40 ci Gasoline

Manufacturer	Briggs & Stratton 402707
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft horizontally-opposed
Displacement	655 cc 40 ci
Bore/Stroke	3.438x2.156 inches 87 x 55 mm
Power (gross)	16 hp 11.9 kW
Starter	electric
Starter volts	12
Oil capacity	1.5 qts 1.4 L

Transmission

Transmission — 4 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	4 forward and 1 reverse

Dimensions

Ariens HT16 Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	23x8.50-12

Dimensions
Wheelbase	48 inches 121 cm
Length	67 inches 170 cm
Width	35 inches 88 cm
Shipping weight	547 lbs 248 kg

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

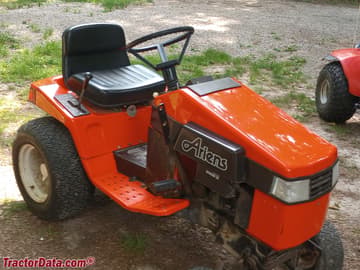

Ariens HT16 lawn tractor.

Recommended Implements & Sizing Guide

Engineering recommendations for Ariens Lawn Tractors Ariens HT16 934001 based on its 16 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Ariens Lawn Tractors Ariens HT16 934001.

Estimated Continuous Field Runtime: 5.4 hrs

Approximately 5.4 hours of continuous field operation at ~75% rated power on a full tank (4.5 gal / 17 L).

Estimated 75% Load Fuel Burn~0.8 gal/hr (3.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Ariens Lawn Tractors Ariens HT16 934001 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Ariens Lawn Tractors Ariens HT16 934001.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)16 hp

Kilowatts (kW)11.9 kW

Metric Horsepower (PS / CV)16.2 PS
