ATC Terratrac GT-34
The ATC Terratrac GT-34 is a tractor produced by Atc. It is equipped with a 140 ci 2.3 L engine. The listed engine power is Gasoline (listed): 30 hp / 22.4 kW. Transmission: 3 forward and 1 reverse. Drive type: crawler.
Engine Power
Gasoline (listed): 30 hp / 22.4 kW
Drive & Traction
crawler
Fuel & Capacities
Gasoline
Transmission
3 forward and 1 reverse
Overview
 | 1951 - 1954
Agricultural Crawler tractor |
|---|
Production | |
|---|---|
Manufacturer | ATC |
Agricultural Crawler tractor | |
Built in Churubusco, Indiana, USA | |
ATC GT-34 Engine | |
|---|---|
Continental 2.3L 4-cyl gasoline | |
Engine details ...  |
ATC GT-34 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
ATC GT-34 Power | |
|---|---|
Engine | 30 hp
22.4 kW |
Plows | 3 *14-inch |
Mechanical | |
|---|---|
Drive | crawler |
Open operator station. | |
Dimensions & Tracks | |
|---|---|
Tracks | |
Full dimensions and tracks ...  |
Engine
Engine Detail — 140 ci / 2.3 L Gasoline
Manufacturer | Continental F-140 |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 140 ci
2.3 L |
Bore/Stroke | 3.1875x4.375 inches
81 x 111 mm |
Power | 30 hp
22.4 kW |
Transmission
Transmission — 3 forward and 1 reverse gear
Type | gear |
Gears | 3 forward and 1 reverse |
Dimensions
ATC GT-34 Tracks |
|---|
Dimensions |
|---|
Photos

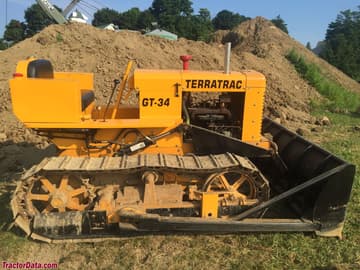

ATC Terratrac GT-34
ATC Terratrac GT-34
Recommended Implements & Sizing Guide
Engineering recommendations for Atc Terratrac GT-34 based on its 30 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Atc Terratrac GT-34.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Atc Terratrac GT-34 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Atc Terratrac GT-34.
Converted Equivalents:
Horsepower (HP)30 hp
Kilowatts (kW)22.4 kW
Metric Horsepower (PS / CV)30.4 PS
Direct Competitor Comparison
Compare ATC Terratrac GT-34 against same-era industry alternatives in the same horsepower class.
Current Model
Atc
ATC Terratrac GT-34
Engine Power:Gasoline (listed): 30 hp / 22.4 kW
★ Baseline Reference
