ATC GT-32 Terratrac
The ATC GT-32 Terratrac is a tractor produced by Atc. It is equipped with a 140 ci 2.3 L engine. Transmission: 3 forward and 1 reverse. Drive type: crawler. Operating weight: 4504 lbs 2043 kg.
Drive & Traction
crawler
Fuel & Capacities
Gasoline
Transmission
3 forward and 1 reverse
Operating Weight
4504 lbs
2043 kg
Atc GT-32 Terratrac Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1953 - 1954
Agricultural Crawler tractor |
|---|---|
1953 - 1954 | |
Agricultural Crawler tractor | |
Production | |
|---|---|
Manufacturer | ATC |
Agricultural Crawler tractor | |
Built in Churubusco, Indiana, USA | |
ATC GT-32 Engine | |
|---|---|
Continental 2.3L 4-cyl gasoline | |
Engine details ...  |
ATC GT-32 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
ATC GT-32 Power | |
|---|---|
Plows | 3 |
Mechanical | |
|---|---|
Drive | crawler |
Open operator station. | |
Dimensions & Tracks | |
|---|---|
Weight | 4504 lbs
2043 kg |
11-inch tracks | |
Full dimensions and tracks ...  | |
Belt Pulley | |
|---|---|
Diameter | 6 inches
15 cm |
Width | 7 inches
17 cm |
RPM | 664 |
Speed | 1043 ft/min
317.91 meters/min |
Engine
Engine Detail — 140 ci / 2.3 L Gasoline
Manufacturer | Continental F-140 |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 140 ci
2.3 L |
Bore/Stroke | 3.1875x4.375 inches
81 x 111 mm |
Rated RPM | 1850 |
Transmission
Transmission — 3 forward and 1 reverse gear
Type | gear |
Gears | 3 forward and 1 reverse |
Dimensions
ATC GT-32 Tracks | |
|---|---|
Width | 11 inches
27 cm |
Area on ground | 1248 in²
0.8 m² |
Dimensions | |
|---|---|
Length | 98 inches
248 cm |
Height | 65 inches
165 cm |
Shipping weight | 4504 lbs
2043 kg |
Ground clearance | 18 inches
45 cm |
Gauge | 36 inches
91 cm |
Photos

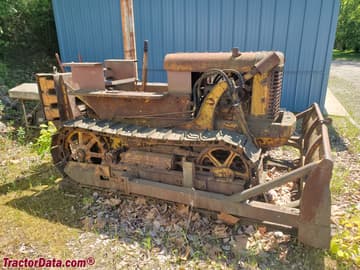

ATC GT-32 Terratrac
ATC GT-32 Terratrac
