CaseIH 1140

The CaseIH 1140 is a tractor produced by Caseih. It is equipped with a 91.3 ci 1.5 L engine. The rated power output is 27 hp 20.1 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 1050 lbs 476 kg.

Overview

	1991 1100 SeriesCompact Utility tractorMitsubishi built
1991
1100 Series
Compact Utility tractor
Mitsubishi built

1991
1100 Series
Compact Utility tractor
Mitsubishi built

Production
Distributor	CaseIH
Manufacturer	Mitsubishi
Compact Utility tractor
Original price was $14,000 in 1991

CaseIH 1140 Engine
Mitsubishi 1.5L 3-cyl diesel
Fuel tank	7.9 gal 29.9 L
Engine details ...

CaseIH 1140 Power
Engine	27 hp 20.1 kW
Gear PTO (claimed)	23 hp 17.2 kW
Hydro PTO (claimed)	21 hp 15.7 kW

Mechanical
Two- or four-wheel drive
Power steering
Wet disc brakes
Two-post folding ROPS.

Hydraulics
Type	open center
Pressure	2133 psi 147.1 bar
Valves	1
Pump flow	7.2 gpm 27.3 lpm
Steering flow	3.2 gpm 12.1 lpm

Tractor hitch
Rear Type	I
Rear lift (at ends)	2205 lbs 1000 kg
Rear lift (at 24"/610mm)	1653 lbs 749 kg

Power Take-off (PTO)
Rear PTO	live
Rear PTO Type	540 (1.375)
Mid PTO	independent
Mid PTO Type	2000

Dimensions & Tires
Wheelbase	67 inches 170 cm
Weight	2060 lbs 934 kg
Front tire	5.00-15
2WD Rear tire	11.2-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
1100 Series Tractors published in 1991, by CaseIH

Engine

	1991 1100 SeriesCompact Utility tractorMitsubishi built
1991
1100 Series
Compact Utility tractor
Mitsubishi built

1991
1100 Series
Compact Utility tractor
Mitsubishi built

Engine Detail — 91.3 ci / 1.5 L Diesel

Manufacturer	Mitsubishi
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	91.3 ci 1.5 L
Bore/Stroke	3.307x3.543 inches 84 x 90 mm
Power	27 hp 20.1 kW
Fuel system	direct injection
Rated RPM	2500
Starter volts	12

Transmission

	1991 1100 SeriesCompact Utility tractorMitsubishi built
1991
1100 Series
Compact Utility tractor
Mitsubishi built

1991
1100 Series
Compact Utility tractor
Mitsubishi built

Transmission options
9-speed gear
hydrostatic

Transmission — 9 forward and 3 reverse gear

Type	gear
Gears	9 forward and 3 reverse
Three gears (1-3) plus reverse (R) in three ranges.

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)

Dimensions

	1991 1100 SeriesCompact Utility tractorMitsubishi built
1991
1100 Series
Compact Utility tractor
Mitsubishi built

1991
1100 Series
Compact Utility tractor
Mitsubishi built

CaseIH 1140 Tires
2WD Standard tires (ag)	Front: 5.00-15. Rear: 11.2-24
4WD Standard tires (ag)	Front: 6.70-15. Rear: 11.2-24
2WD Lawn/turf front	25x10.50-15
4WD Lawn/turf front	27x10.50-15
Lawn/turf rear	41x14.00-20

Dimensions
Wheelbase	67 inches 170 cm
Length	115 inches 292 cm
Width	53.7 inches 136 cm
Height (ROPS)	84.3 inches 214 cm
Weight	2060 lbs 934 kg
2WD Front tread	38 to 50.2 inches 96 to 127 cm
4WD Front tread	41.9 inches 106 cm
Rear tread	42.5 to 55.1 inches 107 to 139 cm

Attachments

	1991 1100 SeriesCompact Utility tractorMitsubishi built
1991
1100 Series
Compact Utility tractor
Mitsubishi built

1991
1100 Series
Compact Utility tractor
Mitsubishi built

Attachment overview
60" mid-mount mower deck
72" mid-mount mower deck
Snowblower
Blade
Front-end loader
Backhoe

Case IH H180 Backhoe
Backhoe type	Case IH H180 Backhoe
Weight	1050 lbs 476 kg
Digging depth	100 inches 254 cm
Reach from pivot	130 inches 330 cm
Loading height	67.25 inches 170 cm
Bucket Rotation	175°
Swing Arc	180°
Bucket force	2500 lbs 1134 kg
Dipperstick force	1100 lbs 498 kg

Photos

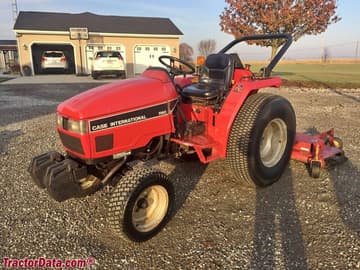

CaseIH 1140
