Baldwin DP600
The Baldwin DP600 is a tractor produced by Baldwin. It is equipped with a 1150 ci 18.8 L engine. The listed engine power is Diesel (listed): 600 hp / 447.4 kW.
Engine Power
Diesel (listed): 600 hp / 447.4 kW
Fuel & Capacities
Diesel
Overview
 | 1982 - 1986
Four-wheel Drive (4WD) tractor |
|---|
Production | |
|---|---|
Manufacturer | Baldwin |
Four-wheel Drive (4WD) tractor | |
Built in Rooty Hill, New South Wales, Australia | |
Baldwin DP600 Engine | |
|---|---|
Cummins 18.8L 6-cyl diesel | |
Engine details ...  |
Baldwin DP600 Transmission | |
|---|---|
power shift | |
Transmission details ...  |
Baldwin DP600 Power | |
|---|---|
Engine | 600 hp
447.4 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | articulated power |
Cab standard with air-conditioning. | |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Engine
Engine Detail — 1150 ci / 18.8 L Diesel
Manufacturer | Cummins KTA 1150 |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 1150 ci
18.8 L |
Bore/Stroke | 6.25x6.25 inches
159 x 159 mm |
Power | 600 hp
447.4 kW |
Starter type | electric |
Transmission
Transmission — power shift
Type | power shift |
Dimensions
Baldwin DP600 Tires |
|---|
Dimensions |
|---|

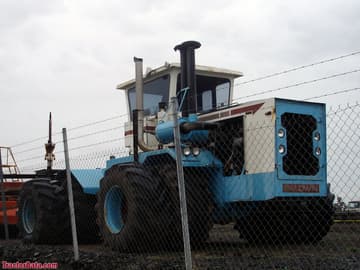

Photos
Baldwin DP600
Baldwin DP600
Recommended Implements & Sizing Guide
Engineering recommendations for Baldwin DP600 based on its 600 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁 | Commercial / Field Scale | High horsepower articulated/4WD field plowing. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙 | Commercial / Field Scale | Broad-acre grain tillage for high-drawbar tractors. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Baldwin DP600.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Baldwin DP600 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Baldwin DP600.
Converted Equivalents:
Horsepower (HP)600 hp
Kilowatts (kW)447.4 kW
Metric Horsepower (PS / CV)608.3 PS
Direct Competitor Comparison
Compare Baldwin DP600 against same-era industry alternatives in the same horsepower class.
Current Model
Baldwin
Baldwin DP600
Engine Power:Diesel (listed): 600 hp / 447.4 kW
★ Baseline Reference
