John Deere 9560R

The John Deere 9560R is a tractor produced by John Deere. It is equipped with a 826.7 ci 13.5 L engine. The rated power output is 560 hp 417.6 kW. Transmission: John Deere PowerShift. Operating weight: 41540 to 43410 pounds.

Overview

	2012 - 2014 9R/RT SeriesFour-wheel Drive (4WD) tractor
2012 - 2014
9R/RT Series
Four-wheel Drive (4WD) tractor

Production
Manufacturer	John Deere
Four-wheel Drive (4WD) tractor
Built in Waterloo, Iowa, USA
Original price was $406,839 in 2014

Variants
9560R	4WD
9560RT	crawler

John Deere 9560R Engine
John Deere 13.5L 6-cyl diesel
Fuel tank	350 gal 1324.8 L
Engine details ...

John Deere 9560R Transmission
18-speed full power shift
Transmission details ...

John Deere 9560R Power
Engine (gross)	560 hp 417.6 kW
Engine (max)	616 hp 459.4 kW
PTO (claimed)	319 hp 237.9 kW
Drawbar (tested)	454.33 hp 338.8 kW
PTO (tested)	364.23 hp 271.6 kW
Performance test details ...

Mechanical
Four-wheel drive
Final drives	inboard planetary with double-reduction axle
Differential lock	fully-locking electro-hydraulic
Steering	hydraulic power
Hydraulic wet disc brakes
Trailer brakes	hydraulic OptOptional
CommandView II cab standard with air-conditioning.

Hydraulics
Type	closed center pressure flow compensated
Pressure	2900 psi 200.0 bar
Valves	4 to 6
Pump flow	48 gpm 181.7 lpm
	78 gpm (High-Flow) 295.2 lpm
SCV flow	37 gpm 140.0 lpm
	45 gpm (19.1mm SCV) 170.3 lpm

Tractor hitch
Rear Type	4N/4
Control	electronic draft sensing
Rear lift	15,300 lbs 6940 kg
	20,000 lbs (optional) 9072 kg
Drawbar	Category 5 standard heavy-duty support and 5,440 kg load rating. (12,000 pound)

Power Take-off (PTO)
Rear PTO	independent (optional)
Rear PTO Type	1000 (1.75)

Dimensions & Tires
Wheelbase	137.8 inches 350 cm
Weight	41540 to 43410 pounds
Front tire	800/70R38
Rear tire	800/70R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	200
Charging volts	12
Batteries	3
Battery CCA	925
Battery volts	12

Engine

Engine Detail — 826.7 ci / 13.5 L Diesel

Manufacturer	John Deere PowerTech PSX
Configuration	turbocharged diesel, 6-cylinder 24-valve, liquid-cooled inline
Displacement	826.7 ci 13.5 L
Bore/Stroke	5.197x6.496 inches 132 x 165 mm
Emissions	Tier 4A
Emission control	exhaust gas recirculation (EGR)
Rated Power (gross)	560 hp 417.6 kW
Maximum Power (gross)	616 hp 459.4 kW
Fuel system	electronic unit injectors
Compression	16:1
Rated RPM	2100
Starter volts	12

Transmission

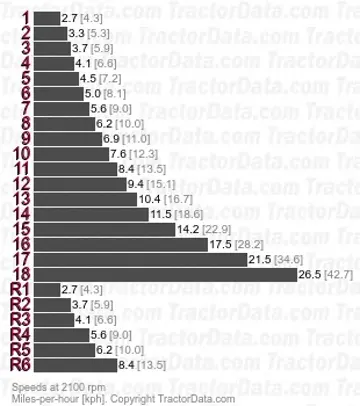

Transmission — John Deere PowerShift

Transmission	John Deere PowerShift
Type	full power shift
Gears	18 forward and 6 reverse
Clutch	hydraulic wet disc
With Group 48 rear tires.

Dimensions

John Deere 9560R Tires
Ag front	800/70R38
Ag rear	800/70R38

Dimensions
Wheelbase	137.8 inches 350 cm
Length	282 inches 716 cm
With hitch Length	295 inches 749 cm
Width	120 inches 304 cm
Front axle	4.72 by 120 inches 119 by 3048 mm
Rear axle	4.72 by 120 inches 119 by 3048 mm

John Deere 9560R Weight
Shipping	41540 lbs 18842 kg
Operating	43410 lbs*Weight with 480/80R46 triples. 19690 kg
Max capacity	60000 lbs 27216 kg

John Deere 9560R Height
Hood	108 inches 274 cm
Cab	145 inches 368 cm
	151 inches (GPS) 383 cm
Exhaust	177 inches 449 cm

Tests

OCED Tractor Test 2044
Diesel 18-speed 4WD October 9 - 26, 2012 Link: OCED Tractor Test 2044 file
PTO performance
Max power	364.23 hp 271.6 kW
Fuel use	21.1 gal/hour 79.9 l/hour
Power at rated engine speed	321.78 hp 240.0 kW
Fuel use	21.1 gal/hour 79.9 l/hour
Power at rated PTO speed	357.53 hp 266.6 kW
Fuel use	21.3 gal/hour 80.6 l/hour
Drawbar performance
Max power	454.33 hp 338.8 kW
Fuel use	29.0 gal/hour 109.8 l/hour
Gear 7 used for power test.
Max pull	44000 lbs 19958 kg
Gear 1 used for pull test.
