Belarus 7010

The Belarus 7010 is a tractor produced by Belarus. It is equipped with a 907 ci 14.9 L engine. The rated power output is 235 hp 175.2 kW. Transmission: 16 forward and 8 reverse. Operating weight: 29735 lbs 13487 kg.

Overview

	1976 - 1986 Four-wheel Drive (4WD) tractorKirovets built
1976 - 1986
Four-wheel Drive (4WD) tractor
Kirovets built

1976 - 1986
Four-wheel Drive (4WD) tractor
Kirovets built

Production
Distributor	Belarus
Manufacturer	Kirovets
Four-wheel Drive (4WD) tractor
Built in Saint Petersburg, Russia

Belarus 7010 Engine
YaMZ 14.9L 8-cyl diesel
Engine details ...

Belarus 7010 Transmission
16-speed partially synchronized
Transmission details ...

Belarus 7010 Power
Engine	235 hp 175.2 kW
PTO (claimed)	215 hp 160.3 kW

Mechanical
Four-wheel drive
Articulated power steering
Pneumatic shoe brakes
Cab standard with heater. Optional air-conditioning.

Capacity
Fuel	170 gal 643.5 L
Hydraulic system	33 gal 124.9 L

Hydraulics
Capacity	33 gal 124.9 L
Valves	2
Pump flow	17.8 gpm 67.4 lpm
Steering flow	42.3 gpm 160.1 lpm

Tractor hitch
Rear Type	III

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000 (2.125)

Dimensions & Tires
Wheelbase	126 inches 320 cm
Weight	29735 lbs 13487 kg
Front tire	28.1-26
Rear tire	28.1-26
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	80
Battery volts	12

References
Facts about Belarus published in 1979

Engine

	1976 - 1986 Four-wheel Drive (4WD) tractorKirovets built
1976 - 1986
Four-wheel Drive (4WD) tractor
Kirovets built

1976 - 1986
Four-wheel Drive (4WD) tractor
Kirovets built

Engine Detail — 907 ci / 14.9 L Diesel

Manufacturer	YaMZ
Configuration	turbocharged diesel, 8-cylinder, liquid-cooled
Displacement	907 ci 14.9 L
Bore/Stroke	5.12x5.51 inches 130 x 140 mm
Power	235 hp 175.2 kW
Air cleaner	dry
Compression	16.5:1
Rated RPM	1700
Starter	electric
Starter volts	24
Oil capacity	31 qts 29.3 L
Coolant capacity	69 qts 65.3 L

Transmission

	1976 - 1986 Four-wheel Drive (4WD) tractorKirovets built
1976 - 1986
Four-wheel Drive (4WD) tractor
Kirovets built

1976 - 1986
Four-wheel Drive (4WD) tractor
Kirovets built

Transmission — 16 forward and 8 reverse partially synchronized

Type	partially synchronized
Gears	16 forward and 8 reverse
Clutch	hydraulic disc
Oil capacity	24 qts 22.7 L

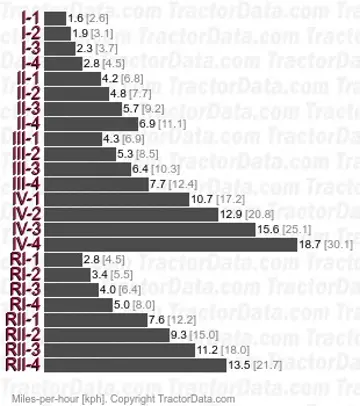

Four gears (1-4) in four ranges (I-IV) plus two reverse ranges. Gear shifts within a range are synchronized.

Dimensions

	1976 - 1986 Four-wheel Drive (4WD) tractorKirovets built
1976 - 1986
Four-wheel Drive (4WD) tractor
Kirovets built

1976 - 1986
Four-wheel Drive (4WD) tractor
Kirovets built

Belarus 7010 Tires
Ag front	28.1-26
Ag rear	28.1-26

Dimensions
Wheelbase	126 inches 320 cm
Length	291 inches 739 cm
Height (cab)	139 inches 353 cm
Weight	29735 lbs 13487 kg
Ground clearance	17 inches 43 cm
Front tread	83 inches 210 cm
Rear tread	83 inches 210 cm

Photos

Belarus 7010 tractor photo
