Benye 254
The Benye 254 is a tractor produced by Benye. It is equipped with a 99.5 ci 1.6 L engine. The listed engine power is Diesel (listed): 23.7 hp / 17.7 kW. Transmission: 8 forward and 2 reverse. Operating weight: 2712 lbs 1230 kg.
Engine Power
Diesel (listed): 23.7 hp / 17.7 kW
Fuel & Capacities
Diesel
Transmission
8 forward and 2 reverse
Operating Weight
2712 lbs
1230 kg
Overview
 | 1986 - ????
Compact Utility tractor |
|---|---|
1986 - ???? | |
Compact Utility tractor | |
1986 - ???? | |
|---|---|
Compact Utility tractor |
Production | |
|---|---|
Manufacturer | Benye |
Compact Utility tractor | |
Built in Ningbo, China | |
Variants | |
|---|---|
250 | 2WD |
254 | 4WD |
Benye 254 Engine | |
|---|---|
Ningbo Engine Works 1.6L 2-cyl diesel | |
Engine details ...  |
Benye 254 Transmission | |
|---|---|
8-speed gear | |
Transmission details ...  |
Benye 254 Power | |
|---|---|
Engine | 23.7 hp
17.7 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | spur gear |
Manual steering | |
Mechanical drum brakes | |
Open operator station. | |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift (at ends) | 1969 lbs
893 kg |
Power Take-off (PTO) | |
|---|---|
Clutch | 540:1773 |
Rear PTO Type | 540 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 61 inches
154 cm |
Weight | 2712 lbs
1230 kg |
Front tire | 4.00-16 |
Rear tire | 9.5-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
| 1986 - ????
Compact Utility tractor |
|---|---|
1986 - ???? | |
Compact Utility tractor | |
1986 - ???? | |
|---|---|
Compact Utility tractor |
Engine Detail — 99.5 ci / 1.6 L Diesel
Manufacturer | Ningbo Engine Works 295 |
Fuel Type | Diesel |
Configuration | 2-cylinder, liquid-cooled |
Displacement | 99.5 ci
1.6 L |
Bore/Stroke | 3.74x4.53 inches
95 x 115 mm |
Power | 23.7 hp
17.7 kW |
Rated RPM | 2000 |
Starter | electric |
Starter volts | 12 |
Transmission
| 1986 - ????
Compact Utility tractor |
|---|---|
1986 - ???? | |
Compact Utility tractor | |
1986 - ???? | |
|---|---|
Compact Utility tractor |
Transmission — 8 forward and 2 reverse gear
Type | gear |
Gears | 8 forward and 2 reverse |
Four gears, plus reverse, in two ranges. | |
 | |
Dimensions
| 1986 - ????
Compact Utility tractor |
|---|---|
1986 - ???? | |
Compact Utility tractor | |
1986 - ???? | |
|---|---|
Compact Utility tractor |
Benye 254 Tires | |
|---|---|
Ag front | 4.00-16 |
Ag rear | 9.5-24 |
Dimensions | |
|---|---|
Wheelbase | 61 inches
154 cm |
Length | 108.6 inches
275 cm |
Height (exhaust) | 83.1 inches
211 cm |
Weight | 2712 lbs
1230 kg |
Front tread | 39.4 to 55.1 inches
100 to 139 cm |
Rear tread | 39.4 to 55.1 inches
100 to 139 cm |
Photos

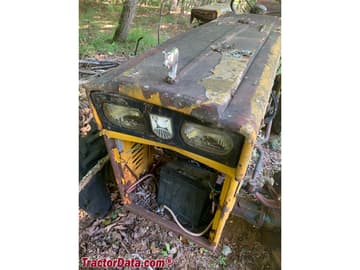

Chinakat branded Ningbo Benye 254 compact tractor.
Ningbo Benye 254 operator station and controls.
Recommended Implements & Sizing Guide
Engineering recommendations for Benye 254 based on its 23.7 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Benye 254.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Benye 254 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Benye 254.
Converted Equivalents:
Horsepower (HP)23.7 hp
Kilowatts (kW)17.7 kW
Metric Horsepower (PS / CV)24 PS
Direct Competitor Comparison
Compare Benye 254 against same-era industry alternatives in the same horsepower class.
Current Model
Benye
Benye 254
Engine Power:Diesel (listed): 23.7 hp / 17.7 kW
★ Baseline Reference
