Bobcat CT235

The Bobcat CT235 is a tractor produced by Bobcat. It is equipped with a 100.5 ci 1.6 L engine. The rated power output is 34 hp 25.4 kW. Transmission: infinite forward and infinite reverse (3-range). Operating weight: 1,047 lbs 474 kg.

Overview

	2008 - 2013 Compact Utility tractorDaedong built
2008 - 2013
Compact Utility tractor
Daedong built

2008 - 2013
Compact Utility tractor
Daedong built

Production
Distributor	Bobcat
Manufacturer	Daedong
Compact Utility tractor
Built in Daegu, South Korea

Bobcat CT235 Engine
Daedong 1.6L 3-cyl diesel
Fuel tank	7.9 gal 29.9 L
Engine details ...

Bobcat CT235 Transmission
hydrostatic
Transmission details ...

Bobcat CT235 Power
Engine	34 hp 25.4 kW
PTO (claimed)	26.5 hp 19.8 kW

Mechanical
Four-wheel drive
Steering	hydrostatic power
Integral wet disc brakes
ROPS. Cab optional with heat and air-conditioning.

Hydraulics
Valves	1 or 2
Pump flow	7.9 gpm 29.9 lpm
Total flow	12.2 gpm 46.2 lpm
Steering flow	4.3 gpm 16.3 lpm

Tractor hitch
Rear Type	I
Rear lift (at 24"/610mm)	1,508 lbs 684 kg

Power Take-off (PTO)
Rear PTO	live
Rear PTO Type	540
Mid PTO	optional
Mid PTO Type	2000

Dimensions & Tires
Wheelbase	66.1 inches 167 cm
Weight	3,056 lbs 1386 kg
Front tire	7x14
Rear tire	11.24x24
Full dimensions and tires ...

References
Compact Tractors published in 2010, by Bobcat

Engine

	2008 - 2013 Compact Utility tractorDaedong built
2008 - 2013
Compact Utility tractor
Daedong built

2008 - 2013
Compact Utility tractor
Daedong built

Engine Detail — 100.5 ci / 1.6 L Diesel

Manufacturer	Daedong 3A165
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	100.5 ci 1.6 L
Power	34 hp 25.4 kW

Transmission

	2008 - 2013 Compact Utility tractorDaedong built
2008 - 2013
Compact Utility tractor
Daedong built

2008 - 2013
Compact Utility tractor
Daedong built

Transmission — infinite forward and infinite reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and infinite reverse (3-range)

Dimensions

	2008 - 2013 Compact Utility tractorDaedong built
2008 - 2013
Compact Utility tractor
Daedong built

2008 - 2013
Compact Utility tractor
Daedong built

Bobcat CT235 Tires
Ag front	7x14
Ag rear	11.24x24
Lawn/turf front	27x8.5-15
Lawn/turf rear	41x14-20
Industrial front	25x8.5-14
Industrial rear	15x19.5

Dimensions
Wheelbase	66.1 inches 167 cm
Length	122.2 inches 310 cm
Width	55.4 inches 140 cm
Height (ROPS)	95.9 inches 243 cm
Height (cab)	94.3 inches 239 cm
Weight	3,056 lbs 1386 kg
Ground clearance	9.9 inches 25 cm

Attachments

	2008 - 2013 Compact Utility tractorDaedong built
2008 - 2013
Compact Utility tractor
Daedong built

2008 - 2013
Compact Utility tractor
Daedong built

Attachment overview
66" mid-mount mower deck
Snowblower
Front-end loader
Backhoe

66" Mower deck
Type	mid-mount Bobcat
	3-blade with hydraulic lift
Cutting width	66 inches 167 cm
Weight	285 lbs 129 kg

Bobcat 6TB Backhoe
Backhoe type	Bobcat 6TB Backhoe
Weight	1,032 lbs 468 kg
Digging depth	78 inches 198 cm
Reach from pivot	107 inches 271 cm
Bucket force	2,875 lbs 1304 kg
Dipperstick force	1,744 lbs 791 kg

Bobcat 7TB Backhoe
Backhoe type	Bobcat 7TB Backhoe
Weight	1,047 lbs 474 kg
Digging depth	90 inches 228 cm
Reach from pivot	117.6 inches 298 cm
Bucket force	2,827 lbs 1282 kg
Dipperstick force	2,022 lbs 917 kg

Photos

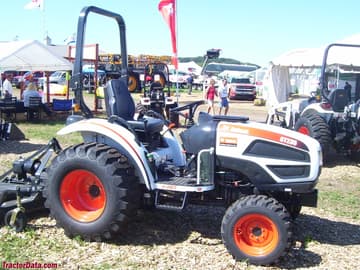

Bobcat CT235

Bobcat CT235 with 7TL front-end loader.
