CaseIH 275

The CaseIH 275 is a tractor produced by Caseih. It is equipped with a 91.3 ci 1.5 L engine. The rated power output is 31 hp 23.1 kW. Transmission: 9 forward and 3 reverse. Drive type: shaft. Operating weight: 1420 lbs 644 kg.

Overview

	1986 - 1991 200 SeriesCompact Utility tractorMitsubishi built
1986 - 1991
200 Series
Compact Utility tractor
Mitsubishi built

1986 - 1991
200 Series
Compact Utility tractor
Mitsubishi built

Production
Distributor	CaseIH
Manufacturer	Mitsubishi
Compact Utility tractor
Original price was $13,100 in 1991

CaseIH 275 Engine
Mitsubishi 1.5L 3-cyl diesel
Engine details ...

CaseIH 275 Transmission
9-speed synchromesh
Transmission details ...

CaseIH 275 Power
Engine (net)	31 hp 23.1 kW
PTO (claimed)	27 hp 20.1 kW

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Steering	manual
	power optional
Hydraulic wet disc brakes
Two-post folding ROPS. Optional sunshade.

Capacity
Fuel	7.4 gal 28.0 L
Hydraulic system	7.7 gal 29.1 L

Hydraulics
Type	open center
Capacity	7.7 gal 29.1 L
Valves	0 to 2
Total flow	7.3 gpm 27.6 lpm

Tractor hitch
Rear Type	I
Rear lift (at ends)	2,000 lbs 907 kg
Rear lift (at 24"/610mm)	1,544 lbs 700 kg

Power Take-off (PTO)
Rear PTO	live
Rear PTO Type	540/1150
Mid PTO	live
Mid PTO Type	2400 OptOptional

Dimensions & Tires
Wheelbase	70.9 inches 180 cm
Weight	2600 to 2800 pounds
Front tire	5.50-16
Rear tire	12.4-24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	35
Battery volts	12

References
Model H180 and H185 Backhoes published by Case IH
Model 54F Dozer Blade published by Case IH
200 Series Tractor/Implement Model Fit-Up published in 1990, by Case IH
Models 5QA, 7QA and 10QA Loaders published by Case IH
Rotary Mowers published by Case IH
Case IH 200 Series tractor never have an off-season published in 1987, by CaseIH
200 Series Tractors published in 1986, by CaseIH
Model 275 Tractor published by CaseIH

Engine

	1986 - 1991 200 SeriesCompact Utility tractorMitsubishi built
1986 - 1991
200 Series
Compact Utility tractor
Mitsubishi built

1986 - 1991
200 Series
Compact Utility tractor
Mitsubishi built

Engine Detail — 91.3 ci / 1.5 L Diesel

Manufacturer	Mitsubishi
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	91.3 ci 1.5 L
Bore/Stroke	3.31x3.54 inches 84 x 90 mm
Power (net)	31 hp 23.1 kW
Rated RPM	2700
Starter volts	12
Oil capacity	4.4 qts 4.2 L
Coolant capacity	6.4 qts 6.1 L

Transmission

	1986 - 1991 200 SeriesCompact Utility tractorMitsubishi built
1986 - 1991
200 Series
Compact Utility tractor
Mitsubishi built

1986 - 1991
200 Series
Compact Utility tractor
Mitsubishi built

Transmission — 9 forward and 3 reverse synchromesh

Type	synchromesh
Gears	9 forward and 3 reverse
Three gears in each of high, medium, low, and reverse ranges.
With 12.4-24 rear tires.

Dimensions

	1986 - 1991 200 SeriesCompact Utility tractorMitsubishi built
1986 - 1991
200 Series
Compact Utility tractor
Mitsubishi built

1986 - 1991
200 Series
Compact Utility tractor
Mitsubishi built

CaseIH 275 Tires
2WD Ag front	5.50-16
4WD Ag front	7-16
Ag rear	12.4-24
2WD Ag front	6.00-16
4WD Ag front	8-16
Ag rear	13.6-24
Lawn/turf front	27x8.50-15
2WD Lawn/turf front	24x8.50-14
4WD Lawn/turf front	212/80D15
Lawn/turf rear	355/80D20
	18.4-16.1

Dimensions
Wheelbase	70.9 inches 180 cm
Length	111.8 inches 283 cm
Width	54 inches 137 cm
2WD Shipping weight	2600 lbs 1179 kg
4WD Shipping weight	2,800 lbs 1270 kg
Ground clearance	13.9 inches (frame) 35 cm
2WD Clearance (front axle)	12.4 inches 31 cm
4WD Clearance (front axle)	11.8 inches 29 cm
Front tread	43.2 to 63.2 inches 109 to 160 cm 2WD}
4WD Front tread	47.2 inches 119 cm
Rear tread	41.9 to 61.9 inches 106 to 157 cm

CaseIH 275 Height
2WD Steering wheel	57.7 inches 146 cm
4WD Steering wheel	58.9 inches 149 cm
ROPS	85 inches 215 cm

Attachments

	1986 - 1991 200 SeriesCompact Utility tractorMitsubishi built
1986 - 1991
200 Series
Compact Utility tractor
Mitsubishi built

1986 - 1991
200 Series
Compact Utility tractor
Mitsubishi built

Attachment overview
72" mid-mount mower deck
Snowblower
Blade
Front-end loader
Backhoe

72" Mower deck
Type	mid-mount Case IH 72MS
	3-blade with hydraulic lift
Cutting width	72 inches 182 cm
Drive	shaft
Cut height	1.5 to 4 inch 3 to 10 cm

Case IH H180 Backhoe
Backhoe type	Case IH H180 Backhoe
Weight	1050 lbs 476 kg
Digging depth	100 inches 254 cm
Reach from pivot	130 inches 330 cm
Loading height	67.25 inches 170 cm
Bucket Rotation	175°
Swing Arc	180°
Bucket force	2500 lbs 1134 kg
Dipperstick force	1100 lbs 498 kg

Case IH H185 Backhoe
Backhoe type	Case IH H185 Backhoe
Weight	1420 lbs 644 kg
Digging depth	104 inches 264 cm
Reach from pivot	133 inches 337 cm
Loading height	59.5 inches 151 cm
Bucket Rotation	170°
Swing Arc	180°
Bucket force	3600 lbs 1632 kg
Dipperstick force	1500 lbs 680 kg

Photos

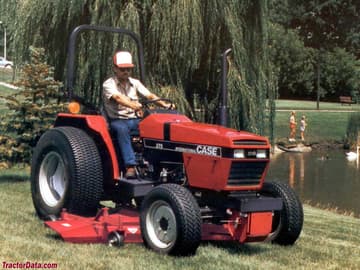

CaseIH 275
