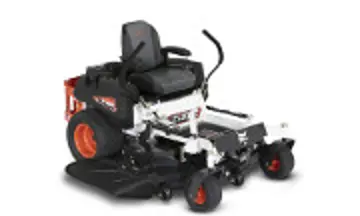

Bobcat 9992002
The Bobcat 9992002 is a tractor produced by Bobcat Lawn Tractors. It is equipped with a 726 cc 44.3 ci engine. The listed engine power is Gasoline (listed): 21.5 hp / 16.0 kW. Transmission: Hydro-Gear ZT-2800. Operating weight: 736 lbs 333 kg.
Overview
![]() | 2020 -
ZT2000 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT2000 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT2000 Series | |
Zero-turn mower |
Production | |
|---|---|
Manufacturer | Bobcat |
Zero-turn mower | |
Built in Johnson Creek, Wisconsin, USA | |
Bobcat 9992002 Engine | |
|---|---|
21.5HP Kawasaki 726cc 2-cyl gasoline | |
Fuel tank | 3.8 gal
14.4 L |
Engine details ... | |
Bobcat 9992002 Transmission | |
|---|---|
hydrostatic | |
Transmission details ... |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Open operator station. ROPS optional. |
Dimensions & Tires | |
|---|---|
Weight | 736 lbs
333 kg |
Front tire | 11x6.0-5 |
Rear tire | 20x8.0-10 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 15 |
Battery volts | 12 |
References | |
|---|---|
![]() | |
Zero-Turn Mowers published in 2020, by Bobcat |
Engine
![]() | 2020 -
ZT2000 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT2000 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT2000 Series | |
Zero-turn mower |
Engine Detail — 726 cc / 44.3 ci Gasoline
Manufacturer | Kawasaki FR651V |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 726 cc
44.3 ci |
Bore/Stroke | 3.07x2.99 inches
78 x 76 mm |
Power | 21.5 hp
16.0 kW |
Air cleaner | dry |
Starter | electric |
Starter volts | 12 |
Transmission
![]() | 2020 -
ZT2000 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT2000 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT2000 Series | |
Zero-turn mower |
Transmission — Hydro-Gear ZT-2800
Transmission | Hydro-Gear ZT-2800 |
Type | hydrostatic |
Gears | infinite forward and reverse |
![]() | |
Dimensions
![]() | 2020 -
ZT2000 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT2000 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT2000 Series | |
Zero-turn mower |
Bobcat 9992002 Tires | |
|---|---|
Lawn/turf front | 11x6.0-5 |
Lawn/turf rear | 20x8.0-10 |
Dimensions | |
|---|---|
Length | 76 inches
193 cm |
Weight | 736 lbs
333 kg |
Attachments
![]() | 2020 -
ZT2000 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT2000 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT2000 Series | |
Zero-turn mower |
48" Mower deck | |
|---|---|
Type | mid-mount Bobcat |
3-blade | |
Cutting width | 48 inches
121 cm |
Cut height | 1.5 to 4.8 inch
3 to 12 cm |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Bobcat Lawn Tractors Bobcat 9992002 based on its 21.5 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Bobcat Lawn Tractors Bobcat 9992002.
Estimated Continuous Field Runtime: 3.4 hrs
Approximately 3.4 hours of continuous field operation at ~75% rated power on a full tank (3.8 gal / 14.4 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Bobcat Lawn Tractors Bobcat 9992002 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Bobcat Lawn Tractors Bobcat 9992002.
Converted Equivalents:
Direct Competitor Comparison
Compare Bobcat 9992002 against same-era industry alternatives in the same horsepower class.
Bobcat 9992002
