Bobcat 9994001

The Bobcat 9994001 is a tractor produced by Bobcat Lawn Tractors. It is equipped with a 603 cc 36.8 ci engine. The listed engine power is Gasoline (listed): 19 hp / 14.2 kW. Transmission: Hydro-Gear ZT-3100. Operating weight: 800 lbs 362 kg.

Engine Power
Gasoline (listed): 19 hp / 14.2 kW
Fuel & Capacities
5.1 gal 19.3 L
Transmission
Hydro-Gear ZT-3100
Operating Weight
800 lbs 362 kg

Overview

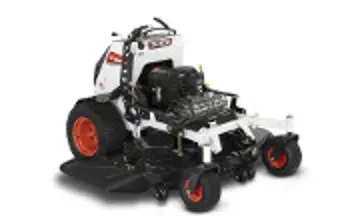

Bobcat 9994001 tractor photo
2020 - ZS4000 SeriesZero-turn mower
2020 -
ZS4000 Series
Zero-turn mower
2020 -
ZS4000 Series
Zero-turn mower
Production
Manufacturer
Bobcat
Zero-turn mower
Built in Johnson Creek, Wisconsin, USA
Bobcat 9994001 Engine
19HP Kawasaki 603cc 2-cyl gasoline
Fuel tank
5.1 gal 19.3 L
Engine details ...
Bobcat 9994001 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Power steering
Stand-on open station.
Dimensions & Tires
Weight
800 lbs 362 kg
Front tire
11x6.0-5
Rear tire
20x8.0-10
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
15
Battery volts
12
References
9994001 references literature
Zero-Turn Mowers published in 2020, by Bobcat

Engine

Bobcat 9994001 tractor photo
2020 - ZS4000 SeriesZero-turn mower
2020 -
ZS4000 Series
Zero-turn mower
2020 -
ZS4000 Series
Zero-turn mower

Engine Detail — 603 cc / 36.8 ci Gasoline

Manufacturer
Kawasaki FX600V
Fuel Type
Gasoline
Configuration
2-cylinder, air-cooled vertical-shaft V-Twin
Displacement
603 cc 36.8 ci
Bore/Stroke
2.87x2.83 inches 73 x 72 mm
Power
19 hp 14.2 kW
Air cleaner
dry
Starter
electric
Starter volts
12

Transmission

Bobcat 9994001 tractor photo
2020 - ZS4000 SeriesZero-turn mower
2020 -
ZS4000 Series
Zero-turn mower
2020 -
ZS4000 Series
Zero-turn mower

Transmission — Hydro-Gear ZT-3100

Transmission
Hydro-Gear ZT-3100
Type
hydrostatic
Gears
infinite forward and reverse
9994001 ZT-3100 hydrostatic speeds

Dimensions

Bobcat 9994001 tractor photo
2020 - ZS4000 SeriesZero-turn mower
2020 -
ZS4000 Series
Zero-turn mower
2020 -
ZS4000 Series
Zero-turn mower
Bobcat 9994001 Tires
Lawn/turf front
11x6.0-5
Lawn/turf rear
20x8.0-10
Dimensions
Length
64 inches 162 cm
Weight
800 lbs 362 kg

Attachments

Bobcat 9994001 tractor photo
2020 - ZS4000 SeriesZero-turn mower
2020 -
ZS4000 Series
Zero-turn mower
2020 -
ZS4000 Series
Zero-turn mower
36" Mower deck
Type
mid-mount Bobcat
3-blade
Cutting width
36 inches 91 cm
Cut height
1.5 to 4.5 inch 3 to 11 cm

Photos

Bobcat 9994001 tractor photo

Bobcat 9994001 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Bobcat Lawn Tractors Bobcat 9994001 based on its 19 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Bobcat Lawn Tractors Bobcat 9994001.

Estimated Continuous Field Runtime: 5.2 hrs

Approximately 5.2 hours of continuous field operation at ~75% rated power on a full tank (5.1 gal / 19.3 L).

Estimated 75% Load Fuel Burn~1 gal/hr (3.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Bobcat Lawn Tractors Bobcat 9994001 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Bobcat Lawn Tractors Bobcat 9994001.

Converted Equivalents:

Horsepower (HP)19 hp
Kilowatts (kW)14.2 kW
Metric Horsepower (PS / CV)19.3 PS

Direct Competitor Comparison

Compare Bobcat 9994001 against same-era industry alternatives in the same horsepower class.

Current Model
Bobcat Lawn Tractors

Bobcat 9994001

Engine Power:Gasoline (listed): 19 hp / 14.2 kW
★ Baseline Reference
KubotaMarket Competitor

Kubota A-175

Engine Power:17.3
Production Years:1992 - 1996
International HarvesterMarket Competitor

International Harvester 8-16

Engine Power:17.8
Production Years:1917 - 1922
IsekiMarket Competitor

Iseki TF173

Engine Power:17.3
PasqualiMarket Competitor

Pasquali 409

Engine Power:17.4
