Bobcat 9993001
The Bobcat 9993001 is a tractor produced by Bobcat Lawn Tractors. It is equipped with a 726 cc 44.3 ci engine. The listed engine power is Gasoline (listed): 20.5 hp / 15.3 kW. Transmission: Hydro-Gear ZT-3100. Operating weight: 758 lbs 343 kg.
Engine Power
Gasoline (listed): 20.5 hp / 15.3 kW
Fuel & Capacities
3.8 gal
14.4 L
Transmission
Hydro-Gear ZT-3100
Operating Weight
758 lbs
343 kg
Overview
 | 2020 -
ZT3000 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT3000 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT3000 Series | |
Zero-turn mower |
Production | |
|---|---|
Manufacturer | Bobcat |
Zero-turn mower | |
Built in Johnson Creek, Wisconsin, USA | |
Bobcat 9993001 Engine | |
|---|---|
20.5HP Kawasaki 726cc 2-cyl gasoline | |
Fuel tank | 3.8 gal
14.4 L |
Engine details ...  | |
Bobcat 9993001 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Open operator station. ROPS optional. |
Dimensions & Tires | |
|---|---|
Weight | 758 lbs
343 kg |
Front tire | 13x6.5-6 |
Rear tire | 22x11.0-10 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 15 |
Battery volts | 12 |
References | |
|---|---|
 | |
Zero-Turn Mowers published in 2020, by Bobcat |
Engine
| 2020 -
ZT3000 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT3000 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT3000 Series | |
Zero-turn mower |
Engine Detail — 726 cc / 44.3 ci Gasoline
Manufacturer | Kawasaki FT651V |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 726 cc
44.3 ci |
Bore/Stroke | 3.07x2.99 inches
78 x 76 mm |
Power | 20.5 hp
15.3 kW |
Air cleaner | dry |
Starter | electric |
Starter volts | 12 |
Transmission
| 2020 -
ZT3000 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT3000 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT3000 Series | |
Zero-turn mower |
Transmission — Hydro-Gear ZT-3100
Transmission | Hydro-Gear ZT-3100 |
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
| 2020 -
ZT3000 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT3000 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT3000 Series | |
Zero-turn mower |
Bobcat 9993001 Tires | |
|---|---|
Lawn/turf front | 13x6.5-6 |
Lawn/turf rear | 22x11.0-10 |
Dimensions | |
|---|---|
Length | 76 inches
193 cm |
Weight | 758 lbs
343 kg |
Attachments
| 2020 -
ZT3000 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT3000 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT3000 Series | |
Zero-turn mower |
48" Mower deck | |
|---|---|
Type | mid-mount Bobcat |
3-blade | |
Cutting width | 48 inches
121 cm |
Cut height | 1.5 to 4.8 inch
3 to 12 cm |
Photos

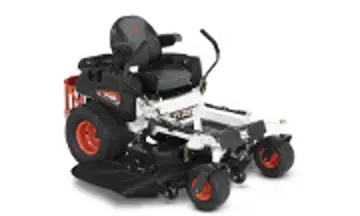

Bobcat 9993001 tractor photo
Bobcat Lawn Tractors Bobcat 9993001 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Bobcat Lawn Tractors Bobcat 9993001.
Converted Equivalents:
Horsepower (HP)20.5 hp
Kilowatts (kW)15.3 kW
Metric Horsepower (PS / CV)20.8 PS
