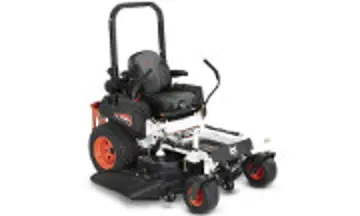

Bobcat 9993502
The Bobcat 9993502 is a tractor produced by Bobcat Lawn Tractors. It is equipped with a 726 cc 44.3 ci engine. The listed engine power is Gasoline (listed): 22 hp / 16.4 kW. Transmission: Hydro-Gear ZT-3400. Operating weight: 789 lbs 357 kg.
Overview
![]() | 2020 -
ZT3500 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT3500 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT3500 Series | |
Zero-turn mower |
Production | |
|---|---|
Manufacturer | Bobcat |
Zero-turn mower | |
Built in Johnson Creek, Wisconsin, USA | |
Bobcat 9993502 Engine | |
|---|---|
22HP Kawasaki 726cc 2-cyl gasoline | |
Fuel tank | 7.8 gal
29.5 L |
Engine details ... | |
Bobcat 9993502 Transmission | |
|---|---|
hydrostatic | |
Transmission details ... |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Two-post folding ROPS. |
Dimensions & Tires | |
|---|---|
Weight | 789 lbs
357 kg |
Front tire | 13x6.5-6 |
Rear tire | 23x8.5-12 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 15 |
Battery volts | 12 |
References | |
|---|---|
![]() | |
Zero-Turn Mowers published in 2020, by Bobcat |
Engine
![]() | 2020 -
ZT3500 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT3500 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT3500 Series | |
Zero-turn mower |
Engine Detail — 726 cc / 44.3 ci Gasoline
Manufacturer | Kawasaki FX691V |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 726 cc
44.3 ci |
Bore/Stroke | 3.07x2.99 inches
78 x 76 mm |
Power | 22 hp
16.4 kW |
Air cleaner | dry |
Starter | electric |
Starter volts | 12 |
Transmission
![]() | 2020 -
ZT3500 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT3500 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT3500 Series | |
Zero-turn mower |
Transmission — Hydro-Gear ZT-3400
Transmission | Hydro-Gear ZT-3400 |
Type | hydrostatic |
Gears | infinite forward and reverse |
![]() | |
Dimensions
![]() | 2020 -
ZT3500 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT3500 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT3500 Series | |
Zero-turn mower |
Bobcat 9993502 Tires | |
|---|---|
Lawn/turf front | 13x6.5-6 |
Lawn/turf rear | 23x8.5-12 |
Dimensions | |
|---|---|
Length | 76 inches
193 cm |
Weight | 789 lbs
357 kg |
Attachments
![]() | 2020 -
ZT3500 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT3500 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT3500 Series | |
Zero-turn mower |
52" Mower deck | |
|---|---|
Type | mid-mount Bobcat |
3-blade | |
Cutting width | 52 inches
132 cm |
Cut height | 1.5 to 4.8 inch
3 to 12 cm |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Bobcat Lawn Tractors Bobcat 9993502 based on its 22 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Bobcat Lawn Tractors Bobcat 9993502.
Estimated Continuous Field Runtime: 6.8 hrs
Approximately 6.8 hours of continuous field operation at ~75% rated power on a full tank (7.8 gal / 29.5 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Bobcat Lawn Tractors Bobcat 9993502 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Bobcat Lawn Tractors Bobcat 9993502.
Converted Equivalents:
Direct Competitor Comparison
Compare Bobcat 9993502 against same-era industry alternatives in the same horsepower class.
Bobcat 9993502
