Bobcat 9996012

The Bobcat 9996012 is a tractor produced by Bobcat Lawn Tractors. It is equipped with a 852 cc 52 ci engine. The listed engine power is Gasoline (listed): 27 hp / 20.1 kW. Transmission: Hydro-Gear ZT-4400. Operating weight: 1464 lbs 664 kg.

Engine Power
Gasoline (listed): 27 hp / 20.1 kW
Fuel & Capacities
15 gal 56.8 L
Transmission
Hydro-Gear ZT-4400
Operating Weight
1464 lbs 664 kg

Overview

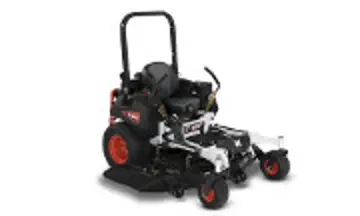

Bobcat 9996012 tractor photo
2020 - ZT6100 SeriesZero-turn mower
2020 -
ZT6100 Series
Zero-turn mower
2020 -
ZT6100 Series
Zero-turn mower
Production
Manufacturer
Bobcat
Zero-turn mower
Built in Johnson Creek, Wisconsin, USA
Bobcat 9996012 Engine
27HP Kawasaki 852cc 2-cyl gasoline
Fuel tank
15 gal 56.8 L
Engine details ...
Bobcat 9996012 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Power steering
Two-post folding ROPS.
Dimensions & Tires
Weight
1464 lbs 664 kg
Front tire
13x6.5-6
Rear tire
24x12.0-12
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
15
Battery volts
12
References
9996012 references literature
Zero-Turn Mowers published in 2020, by Bobcat

Engine

Bobcat 9996012 tractor photo
2020 - ZT6100 SeriesZero-turn mower
2020 -
ZT6100 Series
Zero-turn mower
2020 -
ZT6100 Series
Zero-turn mower

Engine Detail — 852 cc / 52 ci Gasoline

Manufacturer
Kawasaki FX850V
Fuel Type
Gasoline
Configuration
2-cylinder, air-cooled vertical-shaft V-Twin
Displacement
852 cc 52 ci
Bore/Stroke
3.33x2.99 inches 85 x 76 mm
Power
27 hp 20.1 kW
Air cleaner
dry
Starter
electric
Starter volts
12

Transmission

Bobcat 9996012 tractor photo
2020 - ZT6100 SeriesZero-turn mower
2020 -
ZT6100 Series
Zero-turn mower
2020 -
ZT6100 Series
Zero-turn mower

Transmission — Hydro-Gear ZT-4400

Transmission
Hydro-Gear ZT-4400
Type
hydrostatic
Gears
infinite forward and reverse
9996012 ZT-4400 hydrostatic speeds

Dimensions

Bobcat 9996012 tractor photo
2020 - ZT6100 SeriesZero-turn mower
2020 -
ZT6100 Series
Zero-turn mower
2020 -
ZT6100 Series
Zero-turn mower
Bobcat 9996012 Tires
Lawn/turf front
13x6.5-6
Lawn/turf rear
24x12.0-12
Dimensions
Length
83 inches 210 cm
Weight
1464 lbs 664 kg

Attachments

Bobcat 9996012 tractor photo
2020 - ZT6100 SeriesZero-turn mower
2020 -
ZT6100 Series
Zero-turn mower
2020 -
ZT6100 Series
Zero-turn mower
61" Mower deck
Type
mid-mount Bobcat
3-blade
Cutting width
61 inches 154 cm
Cut height
1 to 5.5 inch 2 to 13 cm

Photos

Bobcat 9996012 tractor photo

Bobcat 9996012 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Bobcat Lawn Tractors Bobcat 9996012 based on its 27 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
5 ft (60 in)1.5 mMedium DutyPasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep
54 to 60 in135 - 150 cmMedium DutyThorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Bobcat Lawn Tractors Bobcat 9996012.

Estimated Continuous Field Runtime: 10.7 hrs

Approximately 10.7 hours of continuous field operation at ~75% rated power on a full tank (15 gal / 56.8 L).

Estimated 75% Load Fuel Burn~1.4 gal/hr (5.3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Bobcat Lawn Tractors Bobcat 9996012 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Bobcat Lawn Tractors Bobcat 9996012.

Converted Equivalents:

Horsepower (HP)27 hp
Kilowatts (kW)20.1 kW
Metric Horsepower (PS / CV)27.4 PS

Direct Competitor Comparison

Compare Bobcat 9996012 against same-era industry alternatives in the same horsepower class.

Current Model
Bobcat Lawn Tractors

Bobcat 9996012

Engine Power:Gasoline (listed): 27 hp / 20.1 kW
★ Baseline Reference
Massey FergusonMarket Competitor

Massey Ferguson 1225

Engine Power:24.3
Production Years:1999 - 2002
DeereMarket Competitor

Deere 3025D

Engine Power:24.4
Production Years:2019 - 2026
New HollandMarket Competitor

New Holland Workmaster 25

Engine Power:24.4
Production Years:2018 - 2026
AGCOMarket Competitor

AGCO ST25

Engine Power:24.3
Production Years:2001 - 2004
