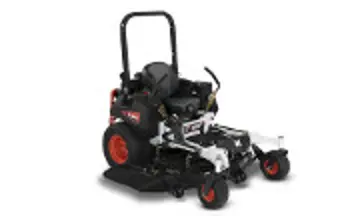

Bobcat 9996013
The Bobcat 9996013 is a tractor produced by Bobcat Lawn Tractors. It is equipped with a 852 cc 52 ci engine. The listed engine power is Gasoline (listed): 29.5 hp / 22.0 kW. Transmission: Hydro-Gear ZT-4400. Operating weight: 1464 lbs 664 kg.
Overview
![]() | 2020 -
ZT6100 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT6100 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT6100 Series | |
Zero-turn mower |
Production | |
|---|---|
Manufacturer | Bobcat |
Zero-turn mower | |
Built in Johnson Creek, Wisconsin, USA | |
Bobcat 9996013 Engine | |
|---|---|
29.5HP Kawasaki 852cc 2-cyl gasoline | |
Fuel tank | 15 gal
56.8 L |
Engine details ... | |
Bobcat 9996013 Transmission | |
|---|---|
hydrostatic | |
Transmission details ... |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Two-post folding ROPS. |
Dimensions & Tires | |
|---|---|
Weight | 1464 lbs
664 kg |
Front tire | 13x6.5-6 |
Rear tire | 24x12.0-12 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 15 |
Battery volts | 12 |
References | |
|---|---|
![]() | |
Zero-Turn Mowers published in 2020, by Bobcat |
Engine
![]() | 2020 -
ZT6100 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT6100 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT6100 Series | |
Zero-turn mower |
Engine Detail — 852 cc / 52 ci Gasoline
Manufacturer | Kawasaki FX850V-EFI |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 852 cc
52 ci |
Bore/Stroke | 3.33x2.99 inches
85 x 76 mm |
Power | 29.5 hp
22.0 kW |
Air cleaner | dry |
Starter | electric |
Starter volts | 12 |
Transmission
![]() | 2020 -
ZT6100 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT6100 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT6100 Series | |
Zero-turn mower |
Transmission — Hydro-Gear ZT-4400
Transmission | Hydro-Gear ZT-4400 |
Type | hydrostatic |
Gears | infinite forward and reverse |
![]() | |
Dimensions
![]() | 2020 -
ZT6100 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT6100 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT6100 Series | |
Zero-turn mower |
Bobcat 9996013 Tires | |
|---|---|
Lawn/turf front | 13x6.5-6 |
Lawn/turf rear | 24x12.0-12 |
Dimensions | |
|---|---|
Length | 83 inches
210 cm |
Weight | 1464 lbs
664 kg |
Attachments
![]() | 2020 -
ZT6100 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT6100 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT6100 Series | |
Zero-turn mower |
61" Mower deck | |
|---|---|
Type | mid-mount Bobcat |
3-blade | |
Cutting width | 61 inches
154 cm |
Cut height | 1 to 5.5 inch
2 to 13 cm |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Bobcat Lawn Tractors Bobcat 9996013 based on its 29.5 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Bobcat Lawn Tractors Bobcat 9996013.
Estimated Continuous Field Runtime: 9.8 hrs
Approximately 9.8 hours of continuous field operation at ~75% rated power on a full tank (15 gal / 56.8 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Bobcat Lawn Tractors Bobcat 9996013 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Bobcat Lawn Tractors Bobcat 9996013.
Converted Equivalents:
Direct Competitor Comparison
Compare Bobcat 9996013 against same-era industry alternatives in the same horsepower class.
