Bobcat 9996011
The Bobcat 9996011 is a tractor produced by Bobcat Lawn Tractors. It is equipped with a 852 cc 52 ci engine. The listed engine power is Gasoline (listed): 25.5 hp / 19.0 kW. Transmission: Hydro-Gear ZT-4400. Operating weight: 1421 lbs 644 kg.
Engine Power
Gasoline (listed): 25.5 hp / 19.0 kW
Fuel & Capacities
15 gal
56.8 L
Transmission
Hydro-Gear ZT-4400
Operating Weight
1421 lbs
644 kg
Overview
 | 2020 -
ZT6000 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT6000 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT6000 Series | |
Zero-turn mower |
Production | |
|---|---|
Manufacturer | Bobcat |
Zero-turn mower | |
Built in Johnson Creek, Wisconsin, USA | |
Bobcat 9996011 Engine | |
|---|---|
25.5HP Kawasaki 852cc 2-cyl gasoline | |
Fuel tank | 15 gal
56.8 L |
Engine details ...  | |
Bobcat 9996011 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Two-post folding ROPS. |
Dimensions & Tires | |
|---|---|
Weight | 1421 lbs
644 kg |
Front tire | 13x6.5-6 |
Rear tire | 24x10.5-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 15 |
Battery volts | 12 |
References | |
|---|---|
 | |
Zero-Turn Mowers published in 2020, by Bobcat |
Engine
| 2020 -
ZT6000 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT6000 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT6000 Series | |
Zero-turn mower |
Engine Detail — 852 cc / 52 ci Gasoline
Manufacturer | Kawasaki FX801V |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 852 cc
52 ci |
Bore/Stroke | 3.33x2.99 inches
85 x 76 mm |
Power | 25.5 hp
19.0 kW |
Air cleaner | dry |
Starter | electric |
Starter volts | 12 |
Transmission
| 2020 -
ZT6000 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT6000 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT6000 Series | |
Zero-turn mower |
Transmission — Hydro-Gear ZT-4400
Transmission | Hydro-Gear ZT-4400 |
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
| 2020 -
ZT6000 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT6000 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT6000 Series | |
Zero-turn mower |
Bobcat 9996011 Tires | |
|---|---|
Lawn/turf front | 13x6.5-6 |
Lawn/turf rear | 24x10.5-12 |
Dimensions | |
|---|---|
Length | 83 inches
210 cm |
Weight | 1421 lbs
644 kg |
Attachments
| 2020 -
ZT6000 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT6000 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT6000 Series | |
Zero-turn mower |
61" Mower deck | |
|---|---|
Type | mid-mount Bobcat |
3-blade | |
Cutting width | 61 inches
154 cm |
Cut height | 1 to 5.5 inch
2 to 13 cm |
Photos

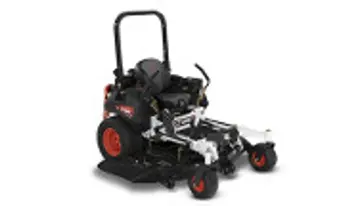

Bobcat 9996011 tractor photo
Bobcat Lawn Tractors Bobcat 9996011 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Bobcat Lawn Tractors Bobcat 9996011.
Converted Equivalents:
Horsepower (HP)25.5 hp
Kilowatts (kW)19 kW
Metric Horsepower (PS / CV)25.9 PS
