Bobcat 9996010

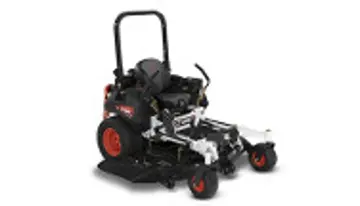

The Bobcat 9996010 is a tractor produced by Bobcat Lawn Tractors. It is equipped with a 852 cc 52 ci engine. The listed engine power is Gasoline (listed): 25.5 hp / 19.0 kW. Transmission: Hydro-Gear ZT-4400. Operating weight: 1371 lbs 621 kg.
Overview
![]() | 2020 -
ZT6000 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT6000 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT6000 Series | |
Zero-turn mower |
Production | |
|---|---|
Manufacturer | Bobcat |
Zero-turn mower | |
Built in Johnson Creek, Wisconsin, USA | |
Bobcat 9996010 Engine | |
|---|---|
25.5HP Kawasaki 852cc 2-cyl gasoline | |
Fuel tank | 15 gal
56.8 L |
Engine details ... | |
Bobcat 9996010 Transmission | |
|---|---|
hydrostatic | |
Transmission details ... |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Two-post folding ROPS. |
Dimensions & Tires | |
|---|---|
Weight | 1371 lbs
621 kg |
Front tire | 13x6.5-6 |
Rear tire | 24x10.5-12 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 15 |
Battery volts | 12 |
References | |
|---|---|
![]() | |
Zero-Turn Mowers published in 2020, by Bobcat |
Engine
![]() | 2020 -
ZT6000 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT6000 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT6000 Series | |
Zero-turn mower |
Engine Detail — 852 cc / 52 ci Gasoline
Manufacturer | Kawasaki FX801V |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 852 cc
52 ci |
Bore/Stroke | 3.33x2.99 inches
85 x 76 mm |
Power | 25.5 hp
19.0 kW |
Air cleaner | dry |
Starter | electric |
Starter volts | 12 |
Transmission
![]() | 2020 -
ZT6000 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT6000 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT6000 Series | |
Zero-turn mower |
Transmission — Hydro-Gear ZT-4400
Transmission | Hydro-Gear ZT-4400 |
Type | hydrostatic |
Gears | infinite forward and reverse |
![]() | |
Dimensions
![]() | 2020 -
ZT6000 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT6000 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT6000 Series | |
Zero-turn mower |
Bobcat 9996010 Tires | |
|---|---|
Lawn/turf front | 13x6.5-6 |
Lawn/turf rear | 24x10.5-12 |
Dimensions | |
|---|---|
Length | 83 inches
210 cm |
Weight | 1371 lbs
621 kg |
Attachments
![]() | 2020 -
ZT6000 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT6000 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT6000 Series | |
Zero-turn mower |
52" Mower deck | |
|---|---|
Type | mid-mount Bobcat |
3-blade | |
Cutting width | 52 inches
132 cm |
Cut height | 1 to 5.5 inch
2 to 13 cm |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Bobcat Lawn Tractors Bobcat 9996010 based on its 25.5 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Bobcat Lawn Tractors Bobcat 9996010.
Estimated Continuous Field Runtime: 11.3 hrs
Approximately 11.3 hours of continuous field operation at ~75% rated power on a full tank (15 gal / 56.8 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Bobcat Lawn Tractors Bobcat 9996010 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Bobcat Lawn Tractors Bobcat 9996010.
Converted Equivalents:
Direct Competitor Comparison
Compare Bobcat 9996010 against same-era industry alternatives in the same horsepower class.
