Bobcat 9997013

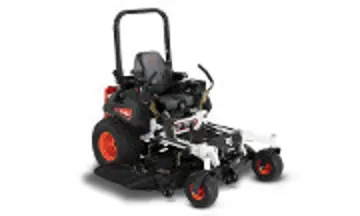

The Bobcat 9997013 is a tractor produced by Bobcat Lawn Tractors. It is equipped with a 993 cc 60.6 ci engine. The listed engine power is Gasoline (listed): 35 hp / 26.1 kW. Transmission: Hydro-Gear ZT-5400. Operating weight: 1541 lbs 698 kg.
Overview
![]() | 2020 -
ZT7000 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT7000 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT7000 Series | |
Zero-turn mower |
Production | |
|---|---|
Manufacturer | Bobcat |
Zero-turn mower | |
Built in Johnson Creek, Wisconsin, USA | |
Bobcat 9997013 Engine | |
|---|---|
35HP Vanguard 993cc 2-cyl gasoline | |
Fuel tank | 15 gal
56.8 L |
Engine details ... | |
Bobcat 9997013 Transmission | |
|---|---|
hydrostatic | |
Transmission details ... |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Two-post folding ROPS. |
Dimensions & Tires | |
|---|---|
Weight | 1541 lbs
698 kg |
Front tire | 15x6.5-6 |
Rear tire | 26x10.0-12 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 15 |
Battery volts | 12 |
References | |
|---|---|
![]() | |
Zero-Turn Mowers published in 2020, by Bobcat |
Engine
![]() | 2020 -
ZT7000 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT7000 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT7000 Series | |
Zero-turn mower |
Engine Detail — 993 cc / 60.6 ci Gasoline
Manufacturer | Vanguard 61E6 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 993 cc
60.6 ci |
Bore/Stroke | 3.37x3.41 inches
86 x 87 mm |
Power | 35 hp
26.1 kW |
Air cleaner | dry |
Starter | electric |
Starter volts | 12 |
Transmission
![]() | 2020 -
ZT7000 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT7000 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT7000 Series | |
Zero-turn mower |
Transmission — Hydro-Gear ZT-5400
Transmission | Hydro-Gear ZT-5400 |
Type | hydrostatic |
Gears | infinite forward and reverse |
![]() | |
Dimensions
![]() | 2020 -
ZT7000 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT7000 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT7000 Series | |
Zero-turn mower |
Bobcat 9997013 Tires | |
|---|---|
Lawn/turf front | 15x6.5-6 |
Lawn/turf rear | 26x10.0-12 |
Dimensions | |
|---|---|
Length | 87 inches
220 cm |
Weight | 1541 lbs
698 kg |
Attachments
![]() | 2020 -
ZT7000 SeriesZero-turn mower |
|---|---|
2020 - | |
ZT7000 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
ZT7000 Series | |
Zero-turn mower |
72" Mower deck | |
|---|---|
Type | mid-mount Bobcat |
3-blade | |
Cutting width | 72 inches
182 cm |
Cut height | 1 to 5.5 inch
2 to 13 cm |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Bobcat Lawn Tractors Bobcat 9997013 based on its 35 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Bobcat Lawn Tractors Bobcat 9997013.
Estimated Continuous Field Runtime: 8.2 hrs
Approximately 8.2 hours of continuous field operation at ~75% rated power on a full tank (15 gal / 56.8 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Bobcat Lawn Tractors Bobcat 9997013 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Bobcat Lawn Tractors Bobcat 9997013.
Converted Equivalents:
Direct Competitor Comparison
Compare Bobcat 9997013 against same-era industry alternatives in the same horsepower class.
Bobcat 9997013
