Bolens G212 G2102

The Bolens G212 G2102 is a tractor produced by Bolens. It is equipped with a 71.4 ci 1.2 L engine. The listed engine power is Diesel (listed): 21 hp / 15.7 kW. Transmission: 12 forward and 4 reverse. Drive type: belt. Operating weight: 600 lbs 272 kg.

Engine Power

Diesel (listed): 21 hp / 15.7 kW

Drive & Traction

belt

Fuel & Capacities

6.1 gal 23.1 L

Transmission

12 forward and 4 reverse

Operating Weight

600 lbs 272 kg

Overview

	1984 - 1990 Compact Utility tractorIseki built Compact Utility tractor Iseki built

Production
Distributor	Bolens
Manufacturer	Iseki
Compact Utility tractor

Variants
G212	2WD
G214	4WD
TE3210	similar Iseki model

Bolens G212 Engine
Isuzu 1.2L 3-cyl diesel
Fuel tank	6.1 gal 23.1 L
Engine details ...

Bolens G212 Transmission
12-speed gear
Transmission details ...

Bolens G212 Power
Engine	21 hp 15.7 kW

Mechanical
Two-wheel drive
Differential lock	mechanical rear
Manual steering
Mechanical internal expanding brakes
Open operator station.

Hydraulics
Type	open center
Pressure	2000 psi 137.9 bar
Pump flow	4.8 gpm 18.2 lpm

Tractor hitch
Rear Type	0
Control	position control
Rear lift	1400 lbs 635 kg

Power Take-off (PTO)
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@2108
	1000@2444

Dimensions & Tires
Wheelbase	59 inches 149 cm
Weight	1588 lbs 720 kg
Front tire	4.00-12
Rear tire	12.4-16
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	35
Battery CCA	305
Battery volts	12
Battery AH	45

References

High Performance published in 1987, by Bolens
Bolens Diesel published in 1983

Engine

Engine Detail — 71.4 ci / 1.2 L Diesel

Manufacturer	Isuzu E3AF1
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	71.4 ci 1.2 L
Bore/Stroke	2.99x3.39 inches 76 x 86 mm
Power	21 hp 15.7 kW
Air cleaner	dry
Pre-heating	glow plugs
Compression	22.5:1
Rated RPM	2600
Starter	electric
Starter volts	12
Oil capacity	3.2 qts 3.0 L
Coolant capacity	7.4 qts 7.0 L

Transmission

Transmission — 12 forward and 4 reverse gear

Type	gear
Gears	12 forward and 4 reverse
Clutch	dry disc
Oil capacity	13 qts 12.3 L

Dimensions

Bolens G212 Tires
Standard tires (ag)	Front: 4.00-12. Rear: 12.4-16
Lawn/turf front	20x8.00-0
Lawn/turf rear	13.6-16

Dimensions
Wheelbase	59 inches 149 cm
Length	105.5 inches 267 cm
Width	42.9 inches 108 cm
Height	75.2 inches 191 cm
Weight	1588 lbs 720 kg
Clearance (rear axle)	13.8 inches 35 cm
Front tread	33.5/37.8 inches 85/96 cm
Rear tread	34.6/40.9 inches 87/103 cm

Attachments

Attachment overview
60" mid-mount mower deck
Snowblower
Blade
Front-end loader
Backhoe

60" Mower deck
Type	mid-mount Bolens 17660
	3-blade with hydraulic lift
Cutting width	60 inches 152 cm
Drive	belt
Weight	350 lbs 158 kg
Cut height	1 to 5 inch 2 to 12 cm

Bolens 17385 Backhoe
Backhoe type	Bolens 17385 Backhoe
Weight	600 lbs 272 kg
Digging depth	78 inches 198 cm
Reach from pivot	94 inches 238 cm
Loading height	53 inches 134 cm
Bucket Rotation	162°
Swing Arc	180°

Photos

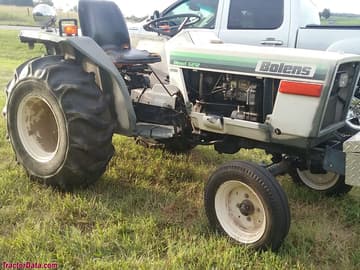

Bolens G212 G2102

Recommended Implements & Sizing Guide

Engineering recommendations for Bolens G212 G2102 based on its 21 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.
Disc HarrowSecondary Tillage	5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)	Light Duty	Small acreage soil break-up and secondary aeration.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Bolens G212 G2102.

Estimated Continuous Field Runtime: 5.6 hrs

Approximately 5.6 hours of continuous field operation at ~75% rated power on a full tank (6.1 gal / 23.1 L).

Estimated 75% Load Fuel Burn~1.1 gal/hr (4.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
