Bolens G194
The Bolens G194 is a tractor produced by Bolens. It is equipped with a 59.5 ci 1.0 L engine. The listed engine power is Diesel (listed): 19 hp / 14.2 kW. Transmission: 18 forward and 6 reverse. Operating weight: 600 lbs 272 kg.
Engine Power
Diesel (listed): 19 hp / 14.2 kW
Fuel & Capacities
4.3 gal
16.3 L
Transmission
18 forward and 6 reverse
Operating Weight
600 lbs
272 kg
Overview
 | 1979 - 1983
Compact Utility tractorIseki built
Compact Utility tractor
Iseki built |
|---|
Production | |
|---|---|
Distributor | Bolens |
Manufacturer | Iseki |
Compact Utility tractor | |
Variants | |
|---|---|
G192 | 2WD |
G194 | 4WD |
TS1910 | similar Iseki model |
Bolens G194 Engine | |
|---|---|
Isuzu 1.0L 2-cyl diesel | |
Fuel tank | 4.3 gal
16.3 L |
Engine details ...  | |
Bolens G194 Transmission | |
|---|---|
18-speed gear | |
Transmission details ...  |
Bolens G194 Power | |
|---|---|
Engine | 19 hp
14.2 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | mechanical rear |
Manual steering | |
Mechanical shoe brakes | |
Open operator station. Two-post ROPS (#1960) optional with available canopy. Soft-side cab (#19706) optional | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2000 psi
137.9 bar |
Pump flow | 3.1 gpm
11.7 lpm |
Tractor hitch | |
|---|---|
Rear Type | 1 |
Control | Position control |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 54.1 inches
137 cm |
Weight | 1903 lbs
863 kg |
Front tire | 6.00-14 |
Rear tire | 8.3/8-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Equipment Seminar published in 1982 | |
Diesel Tractors published in 1979, by Bolens | |
Diesel Tractors - The Work Machines published in 1980, by Bolens |
Engine
Engine Detail — 59.5 ci / 1.0 L Diesel
Manufacturer | Isuzu 2AA1 |
Fuel Type | Diesel |
Configuration | 2-cylinder, liquid-cooled |
Displacement | 59.5 ci
1.0 L |
Power | 19 hp
14.2 kW |
Pre-heating | glow plugs |
Rated RPM | 2600 |
Torque | 41 lb-ft
55.6 Nm |
Torque RPM | 2000 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 18 forward and 6 reverse gear
Type | gear |
Gears | 18 forward and 6 reverse |
Clutch | dry disc |
Three gears (1-3), plus reverse (R) in three ranges (L/M/H) with additional two-range shift. | |
 | |
Dimensions
Bolens G194 Tires | |
|---|---|
Standard tires (ag) | Front: 6.00-14. Rear: 8.3/8-24 |
Dimensions | |
|---|---|
Wheelbase | 54.1 inches
137 cm |
Length | 105.5 inches
267 cm |
Width | 49 inches
124 cm |
Height | 76.8 inches
195 cm |
Weight | 1903 lbs
863 kg |
Ground clearance | 10.2 inches
25 cm |
Front tread | 37.8 inches
96 cm |
Rear tread | 38 to 48 inches
96 to 121 cm |
Attachments
Attachment overview | |
|---|---|
54" mid-mount mower deck | |
Snowblower | |
Blade | |
Front-end loader | |
Backhoe |
54" Mower deck | |
|---|---|
Type | mid-mount Bolens 1954 |
3-blade with hydraulic lift | |
Cutting width | 54 inches
137 cm |
Weight | 300 lbs
136 kg |
Cut height | 1 to 5 inch
2 to 12 cm |
Bolens 17380 Backhoe | |
|---|---|
Backhoe type | Bolens 17380 Backhoe |
Weight | 600 lbs
272 kg |
Digging depth | 78 inches
198 cm |
Reach from pivot | 94 inches
238 cm |
Loading height | 53 inches
134 cm |
Photos

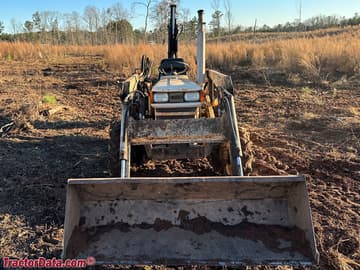

Bolens G194
Bolens G194
Bolens G194
Bolens G194
Bolens G194
Recommended Implements & Sizing Guide
Engineering recommendations for Bolens G194 based on its 19 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Bolens G194.
Estimated Continuous Field Runtime: 4.4 hrs
Approximately 4.4 hours of continuous field operation at ~75% rated power on a full tank (4.3 gal / 16.3 L).
Estimated 75% Load Fuel Burn~1 gal/hr (3.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Bolens G194 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Bolens G194.
Converted Equivalents:
Horsepower (HP)19 hp
Kilowatts (kW)14.2 kW
Metric Horsepower (PS / CV)19.3 PS
