Bolens G214 G2104

The Bolens G214 G2104 is a tractor produced by Bolens. It is equipped with a 71.4 ci 1.2 L engine. The rated power output is 21 hp 15.7 kW. Transmission: 12 forward and 4 reverse. Drive type: belt. Operating weight: 600 lbs 272 kg.

Overview

	1984 - 1990 Compact Utility tractorIseki built
1984 - 1990
Compact Utility tractor
Iseki built

1984 - 1990
Compact Utility tractor
Iseki built

Production
Distributor	Bolens
Manufacturer	Iseki
Compact Utility tractor

Variants
G212	2WD
G214	4WD
TE3210	similar Iseki model

Bolens G214 Engine
Isuzu 1.2L 3-cyl diesel
Fuel tank	6 gal 22.7 L
Engine details ...

Bolens G214 Transmission
12-speed gear
Transmission details ...

Bolens G214 Power
Engine	21 hp 15.7 kW

Mechanical
Four-wheel drive
Differential lock	mechanical rear
Manual steering
Mechanical internal expanding brakes
Open operator station.

Hydraulics
Type	open center
Pressure	2000 psi 137.9 bar
Pump flow	4.8 gpm 18.2 lpm

Tractor hitch
Rear Type	0
Control	position control
Rear lift	1400 lbs 635 kg

Power Take-off (PTO)
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@2108
	1000@2444

Dimensions & Tires
Wheelbase	59 inches 149 cm
Weight	1676 lbs 760 kg
Front tire	6.00-12
Rear tire	12.4-16
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	35
Battery CCA	305
Battery volts	12
Battery AH	45

References
High Performance published in 1987, by Bolens
Bolens Diesel published in 1983

Engine

	1984 - 1990 Compact Utility tractorIseki built
1984 - 1990
Compact Utility tractor
Iseki built

1984 - 1990
Compact Utility tractor
Iseki built

Engine Detail — 71.4 ci / 1.2 L Diesel

Manufacturer	Isuzu E3AF1
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	71.4 ci 1.2 L
Bore/Stroke	2.99x3.39 inches 76 x 86 mm
Power	21 hp 15.7 kW
Air cleaner	dry
Pre-heating	glow plugs
Compression	22.5:1
Rated RPM	2600
Starter	electric
Starter volts	12
Oil capacity	3.2 qts 3.0 L
Coolant capacity	7.4 qts 7.0 L

Transmission

	1984 - 1990 Compact Utility tractorIseki built
1984 - 1990
Compact Utility tractor
Iseki built

1984 - 1990
Compact Utility tractor
Iseki built

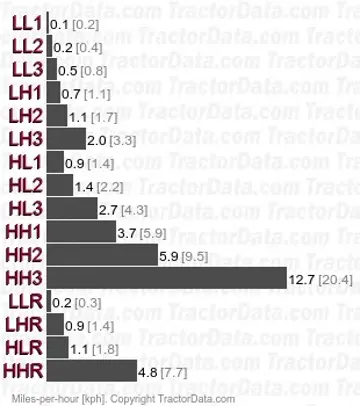

Transmission — 12 forward and 4 reverse gear

Type	gear
Gears	12 forward and 4 reverse
Clutch	dry disc
Oil capacity	13 qts 12.3 L

Dimensions

	1984 - 1990 Compact Utility tractorIseki built
1984 - 1990
Compact Utility tractor
Iseki built

1984 - 1990
Compact Utility tractor
Iseki built

Bolens G214 Tires
Standard tires (ag)	Front: 6.00-12. Rear: 12.4-16
Lawn/turf front	24x8.50-12
Lawn/turf rear	13.6-16

Dimensions
Wheelbase	59 inches 149 cm
Length	105.5 inches 267 cm
Width	42.9 inches 108 cm
Height	75.2 inches 191 cm
Weight	1676 lbs 760 kg
Clearance (front axle)	11.8 inches 29 cm
Front tread	37.4 inches 94 cm
Rear tread	34.6/40.9 inches 87/103 cm

Attachments

	1984 - 1990 Compact Utility tractorIseki built
1984 - 1990
Compact Utility tractor
Iseki built

1984 - 1990
Compact Utility tractor
Iseki built

Attachment overview
60" mid-mount mower deck
Snowblower
Blade
Front-end loader
Backhoe

60" Mower deck
Type	mid-mount Bolens 17660
	3-blade with hydraulic lift
Cutting width	60 inches 152 cm
Drive	belt
Weight	350 lbs 158 kg
Cut height	1 to 5 inch 2 to 12 cm

Bolens 17385 Backhoe
Backhoe type	Bolens 17385 Backhoe
Weight	600 lbs 272 kg
Digging depth	78 inches 198 cm
Reach from pivot	94 inches 238 cm
Loading height	53 inches 134 cm
Bucket Rotation	162°
Swing Arc	180°

Photos

Bolens G214 G2104 tractor photo
