Buhler Versatile 2375

The Buhler Versatile 2375 is a tractor produced by Buhler Versatile. It is equipped with a 659 ci 10.8 L engine. The listed engine power is Diesel (listed): 375 hp / 279.6 kW. Transmission: PowerShift.

Engine Power

Diesel (listed): 375 hp / 279.6 kW

Fuel & Capacities

230 gal 870.6 L

Transmission

PowerShift

Overview

	2003 - 2008 Four-wheel Drive (4WD) tractor

Production
Manufacturer	Buhler Versatile
Four-wheel Drive (4WD) tractor
Built in Winnipeg, Manitoba, Canada

Buhler Versatile 2375 Engine
Cummins 10.8L 6-cyl diesel
Fuel tank	230 gal 870.6 L
Engine details ...

Buhler Versatile 2375 Transmission
12-speed
Transmission details ...

Buhler Versatile 2375 Power
Engine	375 hp 279.6 kW

Mechanical
Four-wheel drive
Final drives	outboard planetary
Articulated power steering
Wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Type	closed center load sensing
Valves	4
	5 *With 3-point hitch
Total flow	45 gpm 170.3 lpm

Tractor hitch
Rear Type	IVN/III OptOptional
Rear lift	13000 lbs 5896 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	1000

Dimensions & Tires
Wheelbase	134.9 inches 342 cm
Front tire	520/85R42
Rear tire	520/85R42
Full dimensions and tires ...

Electrical
Charging amps	130
Batteries	3
Battery CCA	625
Battery volts	12

Engine

Engine Detail — 659 ci / 10.8 L Diesel

Manufacturer	Cummins QSM11
Configuration	turbocharged diesel, 6-cylinder 24-valve, liquid-cooled inline
Displacement	659 ci 10.8 L
Bore/Stroke	4.921x5.79 inches 125 x 147 mm
Power	375 hp 279.6 kW
Compression	16.3:1
Rated RPM	2100
Oil capacity	38.8 qts 36.7 L
Coolant capacity	62.3 qts 59.0 L

Transmission

Transmission — QuadShift III

Transmission	QuadShift III
Gears	12 forward and 4 reverse
Oil capacity	40.1 qts*Without PTO 38.0 L
Four synchronized gears in three ranges, plus reverse range.

Transmission — PowerShift

Transmission	PowerShift
Gears	12 forward and 2 reverse
Oil capacity	50.1 qts*Without PTO 47.4 L

Dimensions

Buhler Versatile 2375 Tires
Ag front	520/85R42
Ag rear	520/85R42

Dimensions
Wheelbase	134.9 inches 342 cm
Length	265.7 inches 674 cm
Height (cab)	135.8 inches 344 cm
Height (exhaust)	146.5 inches 372 cm
Ground clearance	19.8 inches 50 cm

Photos

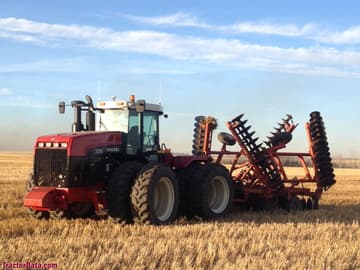

Buhler Versatile 2375

Recommended Implements & Sizing Guide

Engineering recommendations for Buhler Versatile 2375 based on its 375 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁	Commercial / Field Scale	High horsepower articulated/4WD field plowing.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙	Commercial / Field Scale	Broad-acre grain tillage for high-drawbar tractors.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Buhler Versatile 2375.

Estimated Continuous Field Runtime: 11.8 hrs

Approximately 11.8 hours of continuous field operation at ~75% rated power on a full tank (230 gal / 870.6 L).

Estimated 75% Load Fuel Burn~19.5 gal/hr (73.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
