Buhler Versatile 340
The Buhler Versatile 340 is a tractor produced by Buhler Versatile. It is equipped with a 661 ci 10.8 L engine. The rated power output is 340 hp 253.5 kW. Transmission: 12 forward and 2 reverse. Operating weight: 32,000 lbs 14515 kg.
Engine Power
340 hp
253.5 kW
Fuel & Capacities
250 gal
946.2 L
Transmission
12 forward and 2 reverse
Operating Weight
32,000 lbs
14515 kg
Buhler Versatile 340 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2008 - 2010
Four-wheel Drive (4WD) tractor |
|---|---|
2008 - 2010 | |
Four-wheel Drive (4WD) tractor | |
Production | |
|---|---|
Manufacturer | Buhler Versatile |
Four-wheel Drive (4WD) tractor | |
Built in Winnipeg, Manitoba, Canada | |
Buhler Versatile 340 Engine | |
|---|---|
Cummins 10.8L 6-cyl diesel | |
Engine details ...  |
Buhler Versatile 340 Power | |
|---|---|
Engine | 340 hp
253.5 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | outboard planetary |
Differential lock | optional |
Brakes | single dry caliper standard |
dual dry caliper optional | |
Cab standard with heat and A/C | |
Capacity | |
|---|---|
Fuel | 250 gal
946.2 L |
Hydraulic system | 20 gal
75.7 L |
Hydraulics | |
|---|---|
Type | closed center load sensing |
Capacity | 20 gal
75.7 L |
Pressure | 2900 psi
200.0 bar |
Valves | 4 to 6 |
Total flow | 50 gpm
189.2 lpm |
75 gpm (optional HydraFlow)
283.9 lpm | |
Tractor hitch | |
|---|---|
Rear Type | 3/4N optional |
Rear lift | 13,000 lbs
5896 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | optional |
Rear PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 142 inches
360 cm |
Weight | 32,000 lbs
14515 kg |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 160 |
Batteries | 3 |
Battery CCA | 950 |
Battery volts | 12 |
Engine
Engine Detail — 661 ci / 10.8 L Diesel
Manufacturer | Cummins QSM11 |
Configuration | turbocharged aftercooled diesel, 6-cylinder, liquid-cooled |
Displacement | 661 ci
10.8 L |
Bore/Stroke | 4.92x5.79 inches
125 x 147 mm |
Power | 340 hp
253.5 kW |
Torque | 1150 lb-ft
1559.4 Nm |
Torque RPM | 1400 |
Oil capacity | 38.8 qts
36.7 L |
Coolant capacity | 58 qts
54.9 L |
Transmission
Transmission options | |
|---|---|
12-speed partially synchronized | |
12-speed powershift |
Transmission — 12 forward and 4 reverse partially synchronized
Type | partially synchronized |
Gears | 12 forward and 4 reverse |
Four synchronized gears in each of three ranges. | |
Transmission — 12 forward and 2 reverse powershift
Type | powershift |
Gears | 12 forward and 2 reverse |
Dimensions
Buhler Versatile 340 Tires |
|---|
Dimensions | |
|---|---|
Wheelbase | 142 inches
360 cm |
Length | 275 inches
698 cm |
Height (cab) | 143 inches
363 cm |
Height (exhaust) | 146 inches
370 cm |
Shipping weight | 32,000 lbs
14515 kg |
Max weight | 36,000 lbs
16329 kg |
Ground clearance | 16.9 inches
42 cm |
Photos

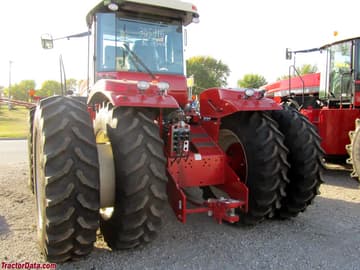

Buhler Versatile 340
Buhler Versatile 340
Buhler Versatile 340 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Buhler Versatile 340.
Converted Equivalents:
Horsepower (HP)340 hp
Kilowatts (kW)253.5 kW
Metric Horsepower (PS / CV)344.7 PS
