Buhler Versatile 400

The Buhler Versatile 400 is a tractor produced by Buhler Versatile. It is equipped with a 661 ci 10.8 L engine. The listed engine power is Diesel (listed): 400 hp / 298.3 kW. Transmission: 12 forward and 2 reverse. Operating weight: 32,000 lbs 14515 kg.

Engine Power

Diesel (listed): 400 hp / 298.3 kW

Fuel & Capacities

250 gal 946.2 L

Transmission

12 forward and 2 reverse

Operating Weight

32,000 lbs 14515 kg

Overview

	2008 - 2010 Four-wheel Drive (4WD) tractor

Production
Manufacturer	Buhler Versatile
Four-wheel Drive (4WD) tractor
Built in Winnipeg, Manitoba, Canada

Buhler Versatile 400 Engine
Cummins 10.8L 6-cyl diesel
Engine details ...

Buhler Versatile 400 Power
Engine	400 hp 298.3 kW

Mechanical
Four-wheel drive
Final drives	outboard planetary
Differential lock	optional
Dual dry caliper brakes
Cab standard with heat and A/C

Capacity
Fuel	250 gal 946.2 L
Hydraulic system	20 gal 75.7 L

Hydraulics
Type	closed center load sensing
Capacity	20 gal 75.7 L
Pressure	2900 psi 200.0 bar
Valves	4 to 6
Total flow	50 gpm 189.2 lpm
	75 gpm (optional HydraFlow) 283.9 lpm

Tractor hitch
Rear Type	3/4N optional
Rear lift	13,000 lbs 5896 kg

Power Take-off (PTO)
Rear PTO	optional
Rear PTO Type	1000

Dimensions & Tires
Wheelbase	142 inches 360 cm
Weight	32,000 lbs 14515 kg
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	160
Batteries	3
Battery CCA	950
Battery volts	12

Engine

Engine Detail — 661 ci / 10.8 L Diesel

Manufacturer	Cummins QSM11
Configuration	turbocharged aftercooled diesel, 6-cylinder, liquid-cooled
Displacement	661 ci 10.8 L
Bore/Stroke	4.92x5.79 inches 125 x 147 mm
Power	400 hp 298.3 kW
Torque	1350 lb-ft 1830.6 Nm
Torque RPM	1400
Starter volts	12
Oil capacity	38.8 qts 36.7 L
Coolant capacity	58 qts 54.9 L

Transmission

Transmission options
12-speed partially synchronized
12-speed powershift

Transmission — 12 forward and 4 reverse partially synchronized

Type	partially synchronized
Gears	12 forward and 4 reverse
Four synchronized gears in each of three ranges.

Transmission — 12 forward and 2 reverse powershift

Type	powershift
Gears	12 forward and 2 reverse

Dimensions

Buhler Versatile 400 Tires

Dimensions
Wheelbase	142 inches 360 cm
Length	275 inches 698 cm
Height (cab)	143 inches 363 cm
Height (exhaust)	146 inches 370 cm
Shipping weight	32,000 lbs 14515 kg
Max weight	40,000 lbs 18144 kg
Ground clearance	16.9 inches 42 cm

Photos

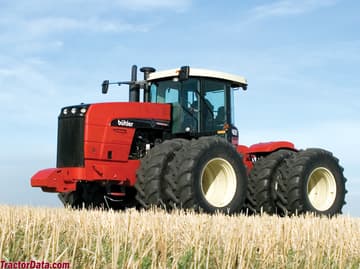

Buhler Versatile 400

Recommended Implements & Sizing Guide

Engineering recommendations for Buhler Versatile 400 based on its 400 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁	Commercial / Field Scale	High horsepower articulated/4WD field plowing.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙	Commercial / Field Scale	Broad-acre grain tillage for high-drawbar tractors.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Buhler Versatile 400.

Estimated Continuous Field Runtime: 12 hrs

Approximately 12 hours of continuous field operation at ~75% rated power on a full tank (250 gal / 946.4 L).

Estimated 75% Load Fuel Burn~20.8 gal/hr (78.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
