Bukh D-30
The Bukh D-30 is a tractor produced by Bukh. It is equipped with a 124.6 ci 2.0 L engine. The listed engine power is Diesel (listed): 30 hp / 22.4 kW. Transmission: 6 forward and 1 reverse.
Engine Power
Diesel (listed): 30 hp / 22.4 kW
Fuel & Capacities
Diesel
Transmission
6 forward and 1 reverse
Overview
 | 1958 - 1960
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Bukh |
Utility tractor | |
Built in Denmark | |
Bukh D-30 Engine | |
|---|---|
Bukh 2.0L 2-cyl diesel | |
Engine details ...  |
Bukh D-30 Transmission | |
|---|---|
6-speed gear | |
Transmission details ...  |
Bukh D-30 Power | |
|---|---|
Engine | 30 hp
22.4 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Engine
Engine Detail — 124.6 ci / 2.0 L Diesel
Manufacturer | Bukh 2EV100 |
Fuel Type | Diesel |
Configuration | 2-cylinder, liquid-cooled |
Displacement | 124.6 ci
2.0 L |
Bore/Stroke | 3.937x5.118 inches
100 x 130 mm |
Power | 30 hp
22.4 kW |
Rated RPM | 1800 |
Transmission
Transmission — 6 forward and 1 reverse gear
Type | gear |
Gears | 6 forward and 1 reverse |
Dimensions
Bukh D-30 Tires |
|---|
Dimensions |
|---|

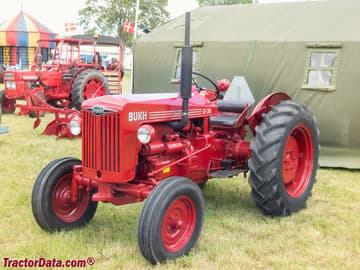

Photos
Bukh D-30
Recommended Implements & Sizing Guide
Engineering recommendations for Bukh D-30 based on its 30 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Bukh D-30.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Bukh D-30 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Bukh D-30.
Converted Equivalents:
Horsepower (HP)30 hp
Kilowatts (kW)22.4 kW
Metric Horsepower (PS / CV)30.4 PS
Direct Competitor Comparison
Compare Bukh D-30 against same-era industry alternatives in the same horsepower class.
Current Model
Bukh
Bukh D-30
Engine Power:Diesel (listed): 30 hp / 22.4 kW
★ Baseline Reference
