Cabelas LM75

The Cabelas LM75 is a tractor produced by Cabelas. It is equipped with a 178 ci 2.9 L engine. The rated power output is 74 hp 55.2 kW. Transmission: 16 forward and reverse. Operating weight: 6052 to 6110 pounds.

Overview

	2014 - 2016 LM SeriesUtility tractorTYM built
2014 - 2016
LM Series
Utility tractor
TYM built

2014 - 2016
LM Series
Utility tractor
TYM built

Production
Distributor	Cabelas
Manufacturer	TYM
Utility tractor
Built in South Korea
Original price was $43,199 in 2016

Cabelas LM75 Engine
Deutz 2.9L 4-cyl diesel
Engine details ...

Cabelas LM75 Transmission
16-speed synchronized shuttle
Transmission details ...

Cabelas LM75 Power
Engine (gross)	74 hp 55.2 kW
PTO (claimed)	64.1 hp 47.8 kW
PTO (tested)	67.21 hp 50.1 kW
Performance test details ...

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Cab standard with air-conditoning.

Capacity
Fuel	23.8 gal 90.1 L
Hydraulic system	12.4 gal 46.9 L
Front axle	17.2 qts 16.3 L

Hydraulics
Type	open center
Capacity	12.4 gal 46.9 L
Valves	2
Pump flow	11.1 gpm*Advertised. During testing, actual perfomance was 10.6 GPM. 42.0 lpm
Total flow	15.9 gpm 60.2 lpm
Steering flow	4.8 gpm 18.2 lpm

Tractor hitch
Rear Type	II
Control	position and draft control
Rear lift (at ends)	5130 lbs*Advertised, during testing actual lift was 3795 pounds. 2326 kg
Rear lift (at 24"/610mm)	3426 lbs*Advertised, during testing actual lift was 3134 pounds. 1554 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/540E (1.375)
Engine RPM	540@2198
	540E@1506

Dimensions & Tires
Wheelbase	86.1 inches 218 cm
Weight	6052 to 6110 pounds
Front tire	11.2-24
Rear tire	16.9-30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	95
Charging volts	14
Battery volts	12

Engine

	2014 - 2016 LM SeriesUtility tractorTYM built
2014 - 2016
LM Series
Utility tractor
TYM built

2014 - 2016
LM Series
Utility tractor
TYM built

Engine Detail — 178 ci / 2.9 L Diesel

Manufacturer	Deutz TCD2.9
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	178 ci 2.9 L
Bore/Stroke	3.622x4.331 inches 92 x 110 mm
Power (gross)	74 hp 55.2 kW
Fuel system	common rail direct injection
Air cleaner	dual dry element
Compression	17.8:1
Rated RPM	2200
Starter	electric
Starter volts	12
Oil capacity	7.4 qts 7.0 L
Coolant capacity	10 qts 9.5 L

Transmission

	2014 - 2016 LM SeriesUtility tractorTYM built
2014 - 2016
LM Series
Utility tractor
TYM built

2014 - 2016
LM Series
Utility tractor
TYM built

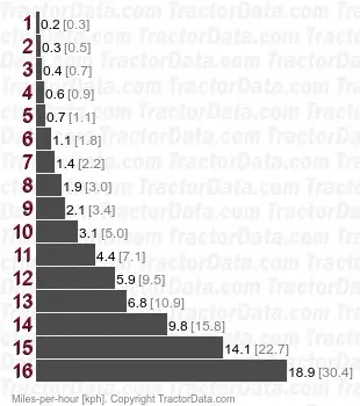

Transmission — 16 forward and reverse synchronized shuttle

Type	synchronized shuttle
Gears	16 forward and reverse
Clutch	wet disc
Oil capacity	49.7 qts 47.0 L

Dimensions

	2014 - 2016 LM SeriesUtility tractorTYM built
2014 - 2016
LM Series
Utility tractor
TYM built

2014 - 2016
LM Series
Utility tractor
TYM built

Cabelas LM75 Tires
Standard tires (ag)	Front: 11.2-24. Rear: 16.9-30

Dimensions
Wheelbase	86.1 inches 218 cm
Length	157.5 inches 400 cm
Width	73.5 inches 186 cm
Height (cab)	104.3 inches 264 cm
Shipping weight	6052 lbs 2745 kg
Operating weight	6110 lbs 2771 kg
Ground clearance	16.8 inches 42 cm

Tests

	2014 - 2016 LM SeriesUtility tractorTYM built
2014 - 2016
LM Series
Utility tractor
TYM built

2014 - 2016
LM Series
Utility tractor
TYM built

Nebraska Tractor Test 2128
Diesel 16-speed 4WD August 18 - September 3, 2015 Link: Nebraska Tractor Test 2128 file
PTO performance
Max power	67.21 hp 50.1 kW
Fuel use	4.0 gal/hour 15.1 l/hour

Photos

Cabelas LM75 tractor photo
