Captain 263
The Captain 263 is a tractor produced by Captain. It is equipped with a 80.5 ci 1.3 L engine. The listed engine power is Diesel (listed): 24.4 hp / 18.2 kW. Transmission: 9 forward and 3 reverse. Operating weight: 2048 lbs 928 kg.
Engine Power
Diesel (listed): 24.4 hp / 18.2 kW
Fuel & Capacities
5.3 gal
20.1 L
Transmission
9 forward and 3 reverse
Operating Weight
2048 lbs
928 kg
Overview
 | 2021 -
Compact Utility tractor |
|---|---|
2021 - | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Captain |
Compact Utility tractor | |
Built in Rajkot, India | |
Captain 263 Engine | |
|---|---|
Mitsubishi 1.3L 3-cyl diesel | |
Engine details ...  |
Captain 263 Transmission | |
|---|---|
9-speed partially synchronized | |
Transmission details ...  |
Captain 263 Power | |
|---|---|
Engine | 24.4 hp
18.2 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | mechanical rear |
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. | |
Capacity | |
|---|---|
Fuel | 5.3 gal
20.1 L |
Hydraulic system | 5.3 gal
20.1 L |
Hydraulics | |
|---|---|
Capacity | 5.3 gal
20.1 L |
Tractor hitch | |
|---|---|
Rear Type | IN |
Rear lift | 1653 lbs
749 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@2300 |
1000@2305 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 58.7 inches
149 cm |
Weight | 2048 lbs
928 kg |
Front tire | 5.00-12 |
Rear tire | 8.00-18 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Owner's Manual Model 263 & 223 published in 2023 | |
EU Model 263 - 8G published in 2021, by Captain |
Engine
Engine Detail — 80.5 ci / 1.3 L Diesel
Manufacturer | Mitsubishi S3L2 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 80.5 ci
1.3 L |
Bore/Stroke | 3.07x3.62 inches
78 x 92 mm |
Power | 24.4 hp
18.2 kW |
Air cleaner | dry |
Rated RPM | 2500 |
Torque | 56.3 lb-ft
76.3 Nm |
Torque RPM | 2000 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 2.9 qts
2.7 L |
Transmission
Transmission — 9 forward and 3 reverse partially synchronized
Type | partially synchronized |
Gears | 9 forward and 3 reverse |
Oil capacity | 21.1 qts
20.0 L |
Three gears, plus reverse, in three ranges. | |
With 8.3-20 rear tires. | |
 | |
Dimensions
Captain 263 Tires | |
|---|---|
Standard tires (ag) | Front: 5.00-12. Rear: 8.00-18 |
Lawn/turf front | 23x8.50-12 |
Lawn/turf rear | 33x15.5-16 |
Dimensions | |
|---|---|
Wheelbase | 58.7 inches
149 cm |
Length | 112.2 inches
284 cm |
Width | 41.3 inches
104 cm |
Height (ROPS) | 81.1 inches
205 cm |
Weight | 2048 lbs
928 kg |
Ground clearance | 6.7 inches
17 cm |
Rear tread | 29.3 to 38.9 inches
74 to 98 cm |
Photos

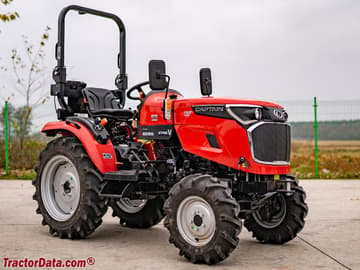

Captain 263
Captain 263
Captain 283 operator's station and controls.
Recommended Implements & Sizing Guide
Engineering recommendations for Captain 263 based on its 24.4 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Captain 263.
Estimated Continuous Field Runtime: 4.2 hrs
Approximately 4.2 hours of continuous field operation at ~75% rated power on a full tank (5.3 gal / 20.1 L).
Estimated 75% Load Fuel Burn~1.3 gal/hr (4.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Captain 263 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Captain 263.
Converted Equivalents:
Horsepower (HP)24.4 hp
Kilowatts (kW)18.2 kW
Metric Horsepower (PS / CV)24.7 PS
Direct Competitor Comparison
Compare Captain 263 against same-era industry alternatives in the same horsepower class.
Current Model
Captain
Captain 263
Engine Power:Diesel (listed): 24.4 hp / 18.2 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester D-322
Engine Power:22
Production Years:1962 - 1965
