CaseIH 1130
The CaseIH 1130 is a tractor produced by Caseih. It is equipped with a 75.4 ci 1.2 L engine. The listed engine power is Diesel (listed): 23 hp / 17.2 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 1050 lbs 476 kg.
Engine Power
Diesel (listed): 23 hp / 17.2 kW
Fuel & Capacities
7.9 gal
29.9 L
Transmission
infinite forward and reverse (3-range)
Operating Weight
1050 lbs
476 kg
Overview
 | 1991
1100 SeriesCompact Utility tractorMitsubishi built
1100 Series
Compact Utility tractor
Mitsubishi built |
|---|
Production | |
|---|---|
Distributor | CaseIH |
Manufacturer | Mitsubishi |
Compact Utility tractor | |
Original price was $13,000 in 1991 | |
CaseIH 1130 Engine | |
|---|---|
Mitsubishi 1.2L 3-cyl diesel | |
Fuel tank | 7.9 gal
29.9 L |
Engine details ...  | |
CaseIH 1130 Power | |
|---|---|
Engine | 23 hp
17.2 kW |
Gear PTO (claimed) | 20 hp
14.9 kW |
Hydro PTO (claimed) | 18 hp
13.4 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2133 psi
147.1 bar |
Valves | 1 |
Pump flow | 7.2 gpm
27.3 lpm |
Steering flow | 3.2 gpm
12.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift (at ends) | 2205 lbs
1000 kg |
Rear lift (at 24"/610mm) | 1653 lbs
749 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live |
Rear PTO Type | 540 (1.375) |
Mid PTO | independent |
Mid PTO Type | 2000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 65 inches
165 cm |
Weight | 2,000 lbs
907 kg |
Front tire | 5.00-15 |
2WD Rear tire | 9.5-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
1100 Series Tractors published in 1991, by CaseIH |
Engine
Engine Detail — 75.4 ci / 1.2 L Diesel
Manufacturer | Mitsubishi |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 75.4 ci
1.2 L |
Bore/Stroke | 3.228x3.071 inches
82 x 78 mm |
Power | 23 hp
17.2 kW |
Fuel system | direct injection |
Rated RPM | 2500 |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
9-speed gear | |
hydrostatic |
Transmission — 9 forward and 3 reverse gear
Type | gear |
Gears | 9 forward and 3 reverse |
Three gears (1-3) plus reverse (R) in three ranges. | |
Transmission — infinite forward and reverse (3-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (3-range) |
Dimensions
CaseIH 1130 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 5.00-15. Rear: 9.5-24 |
4WD Standard tires (ag) | Front: 7-14. Rear: 9.5-24 |
2WD Lawn/turf front | 23x8.50-12 |
4WD Lawn/turf front | 25x10.50-15 |
Lawn/turf rear | 38x14.00-20 |
Dimensions | |
|---|---|
Wheelbase | 65 inches
165 cm |
Length | 115 inches
292 cm |
Width | 51 inches
129 cm |
Height (ROPS) | 83.5 inches
212 cm |
Weight | 2,000 lbs
907 kg |
2WD Front tread | 38.2 to 42.1 inches
97 to 106 cm |
4WD Front tread | 43.1 inches
109 cm |
Rear tread | 41.5 to 44.3 inches
105 to 112 cm |
Attachments
Attachment overview | |
|---|---|
60" mid-mount mower deck | |
72" mid-mount mower deck | |
Snowblower | |
Blade | |
Front-end loader | |
Backhoe |
Case IH H180 Backhoe | |
|---|---|
Backhoe type | Case IH H180 Backhoe |
Weight | 1050 lbs
476 kg |
Digging depth | 100 inches
254 cm |
Reach from pivot | 130 inches
330 cm |
Loading height | 67.25 inches
170 cm |
Bucket Rotation | 175° |
Swing Arc | 180° |
Bucket force | 2500 lbs
1134 kg |
Dipperstick force | 1100 lbs
498 kg |
Photos

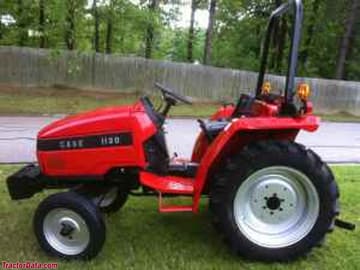

CaseIH 1130
Recommended Implements & Sizing Guide
Engineering recommendations for Caseih 1130 based on its 23 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih 1130.
Estimated Continuous Field Runtime: 6.6 hrs
Approximately 6.6 hours of continuous field operation at ~75% rated power on a full tank (7.9 gal / 29.9 L).
Estimated 75% Load Fuel Burn~1.2 gal/hr (4.5 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Caseih 1130 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Caseih 1130.
Converted Equivalents:
Horsepower (HP)23 hp
Kilowatts (kW)17.2 kW
Metric Horsepower (PS / CV)23.3 PS
Direct Competitor Comparison
Compare CaseIH 1130 against same-era industry alternatives in the same horsepower class.
Current Model
Caseih
CaseIH 1130
Engine Power:Diesel (listed): 23 hp / 17.2 kW
★ Baseline Reference
