CaseIH 245
The CaseIH 245 is a tractor produced by Caseih. It is equipped with a 59.74 ci 1.0 L engine. The listed engine power is Diesel (net): 21 hp / 15.7 kW. Transmission: 9 forward and 3 reverse. Operating weight: 1050 lbs 476 kg.
Engine Power
Diesel (net): 21 hp / 15.7 kW
Fuel & Capacities
5.5 gal
20.8 L
Transmission
9 forward and 3 reverse
Operating Weight
1050 lbs
476 kg
Overview
 | 1986 - 1990
200 SeriesCompact Utility tractorMitsubishi built
200 Series
Compact Utility tractor
Mitsubishi built |
|---|
Production | |
|---|---|
Distributor | CaseIH |
Manufacturer | Mitsubishi |
Compact Utility tractor | |
Original price was $11,000 in 1990 | |
CaseIH 245 Engine | |
|---|---|
Mitsubishi 1.0L 3-cyl diesel | |
Engine details ...  |
CaseIH 245 Power | |
|---|---|
Engine (net) | 21 hp
15.7 kW |
PTO (claimed) | 18 hp
13.4 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Steering | manual |
power optional | |
Mechanical drum brakes | |
Two-post folding ROPS. Optional sun shade. | |
Capacity | |
|---|---|
Fuel | 5.5 gal
20.8 L |
Hydraulic system | 6.6 gal
25.0 L |
Hydraulics | |
|---|---|
Capacity | 6.6 gal
25.0 L |
Valves | 0 or 1 |
Total flow | 4.5 gpm
17.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift (at ends) | 1,500 lbs
680 kg |
Rear lift (at 24"/610mm) | 1,125 lbs
510 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission |
live OptOptional | |
Rear PTO Type | 540,1150 |
Mid PTO | live |
Mid PTO Type | 2400 OptOptional |
Dimensions & Tires | |
|---|---|
Wheelbase | 65.9 inches
167 cm |
Weight | 1910 lbs
866 kg |
Front tire | 4.00-15 |
Rear tire | 9.5-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 35 |
Battery volts | 12 |
References | |
|---|---|
 | |
Model H180 and H185 Backhoes published by Case IH | |
Model 54F Dozer Blade published by Case IH | |
200 Series Tractor/Implement Model Fit-Up published in 1990, by Case IH | |
Models 5QA, 7QA and 10QA Loaders published by Case IH | |
Rotary Mowers published by Case IH | |
Case IH 200 Series tractor never have an off-season published in 1987, by CaseIH | |
200 Series Tractors published in 1986, by CaseIH |
Engine
Engine Detail — 59.74 ci / 1.0 L Diesel
Manufacturer | Mitsubishi |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 59.74 ci
1.0 L |
Bore/Stroke | 2.87x3.07 inches
73 x 78 mm |
Power (net) | 21 hp
15.7 kW |
Air cleaner | dry cyclone type |
Rated RPM | 2700 |
Starter volts | 12 |
Oil capacity | 4.4 qts
4.2 L |
Coolant capacity | 5.2 qts
4.9 L |
Transmission
Transmission options | |
|---|---|
9-speed constant mesh | |
9-speed synchromesh |
Transmission — 9 forward and 3 reverse constant mesh
Type | constant mesh |
Gears | 9 forward and 3 reverse |
Three gears in each of high, medium, low, and reverse ranges. | |
With 9.5-24 rear tires. | |
 | |
Transmission — 9 forward and 3 reverse synchromesh
Type | synchromesh |
Gears | 9 forward and 3 reverse |
Optional transmission. Three gears in each of high, medium, low, and reverse ranges. | |
With 9.5-24 rear tires. | |
 | |
Dimensions
CaseIH 245 Tires | |
|---|---|
2WD Ag front | 4.00-15 |
4WD Ag front | 6-14 |
Ag rear | 9.5-24 |
2WD Ag front | 5.00-15 |
4WD Ag front | 7-14 |
Ag rear | 11.2-24 |
Lawn/turf front | 24x8.50-14 |
2WD Lawn/turf front | 5.90-15 |
2WD Lawn/turf front | 20x8.00-10 |
4WD Lawn/turf front | 7-14 |
4WD Lawn/turf front | 27x8.50-15 |
Lawn/turf rear | 11.2/10-24 |
355/80D20 | |
13.6-16 | |
Dimensions | |
|---|---|
Wheelbase | 65.9 inches
167 cm |
Length | 111.8 inches
283 cm |
2WD Width | 43.7 inches
110 cm |
4WD Width | 46.1 inches
117 cm |
2WD Shipping weight | 1910 lbs
866 kg |
Ground clearance | 13.8 inches (frame)
35 cm |
2WD Clearance (front axle) | 13.6 inches
34 cm |
4WD Clearance (front axle) | 10.8 inches
27 cm |
2WD Front tread | 35.8 to 39.8 inches
90 to 101 cm |
4WD Front tread | 38.2 inches
97 cm |
Rear tread | 34.6 to 40.4 inches
87 to 102 cm |
CaseIH 245 Height | |
|---|---|
2WD Steering wheel | 53.9 inches
136 cm |
4WD Steering wheel | 54.1 inches
137 cm |
ROPS | 81.5 inches
207 cm |
Attachments
Attachment overview | |
|---|---|
61" mid-mount mower deck | |
72" mid-mount mower deck | |
Snowblower | |
Blade | |
Front-end loader | |
Backhoe | |
Three mid-mount mower decks were available, the 61MB used the rear PTO while the 61MS used the mid PTO. The 72 MS used the mid PTO. Also available was the 60FS (rear PTO) and 60FMS (mid PTO) front-mount mowers. |
Case IH H180 Backhoe | |
|---|---|
Backhoe type | Case IH H180 Backhoe |
Weight | 1050 lbs
476 kg |
Digging depth | 100 inches
254 cm |
Reach from pivot | 130 inches
330 cm |
Loading height | 67.25 inches
170 cm |
Bucket Rotation | 175° |
Swing Arc | 180° |
Bucket force | 2500 lbs
1134 kg |
Dipperstick force | 1100 lbs
498 kg |
Photos

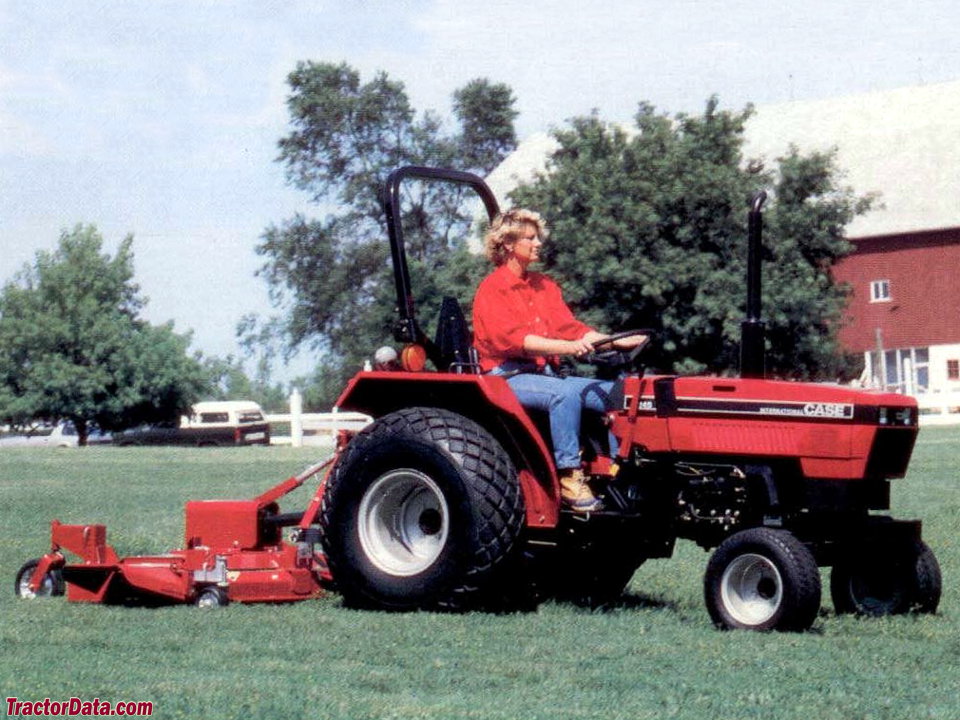

CaseIH 245
Recommended Implements & Sizing Guide
Engineering recommendations for Caseih 245 based on its 21 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih 245.
Estimated Continuous Field Runtime: 5 hrs
Approximately 5 hours of continuous field operation at ~75% rated power on a full tank (5.5 gal / 20.8 L).
Estimated 75% Load Fuel Burn~1.1 gal/hr (4.1 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Caseih 245 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Caseih 245.
Converted Equivalents:
Horsepower (HP)21 hp
Kilowatts (kW)15.7 kW
Metric Horsepower (PS / CV)21.3 PS
