CaseIH 1455 XL
The CaseIH 1455 XL is a tractor produced by Caseih. It is equipped with a 402 ci 6.6 L engine. The rated power output is 145 hp 108.1 kW. Transmission: ZF. Operating weight: 11499 lbs 5215 kg.
Engine Power
145 hp
108.1 kW
Fuel & Capacities
52.8 gal
199.8 L
Transmission
ZF
Operating Weight
11499 lbs
5215 kg
Caseih 1455 XL Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1985 - 1996
55 SeriesRow-Crop tractor |
|---|---|
1985 - 1996 | |
55 Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | CaseIH |
Row-Crop tractor | |
Built in Neuss, Germany | |
CaseIH 1455 XL Engine | |
|---|---|
International Harvester 6.6L 6-cyl diesel | |
Engine details ...  |
CaseIH 1455 XL Power | |
|---|---|
Engine | 145 hp
108.1 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Cab standard with heater. | |
Capacity | |
|---|---|
Fuel | 52.8 gal
199.8 L |
Front axle | 9.5 qts
9.0 L |
Hydraulics | |
|---|---|
Pressure | 2488 psi
171.5 bar |
Valves | up to 2 |
Pump flow | 11 gpm
41.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | III/II |
Control | position and draft control |
Rear lift | 12980 lbs
5887 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 110.2 inches
279 cm |
Weight | 11499 lbs
5215 kg |
Front tire | 16.9R28 |
Rear tire | 20.8R38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 55 |
Battery volts | 12 |
References | |
|---|---|
 | |
1255XL 1455XL published by CaseIH | |
55 Series published by CaseIH |
Engine
Engine Detail — 402 ci / 6.6 L Diesel
Manufacturer | International Harvester DT-402 |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 402 ci
6.6 L |
Bore/Stroke | 3.94x5.50 inches
100 x 140 mm |
Power | 145 hp
108.1 kW |
Fuel system | direct injection |
Rated RPM | 2200 |
Torque | 390 lb-ft
528.8 Nm |
Torque RPM | 1600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 13.2 qts
12.5 L |
Coolant capacity | 34.9 qts
33.0 L |
Transmission
Transmission options | |
|---|---|
12-speed fully synchronized | |
20-speed fully synchronized |

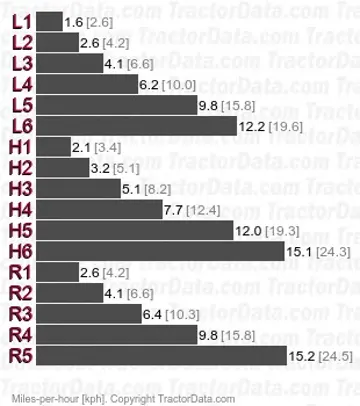

Transmission — ZF
Transmission | ZF |
Type | fully synchronized |
Gears | 12 forward and 5 reverse |
Oil capacity | 42.3 qts
40.0 L |
Six gears (1-6) in two ranges (low/high), plus reverse range. | |
 | |

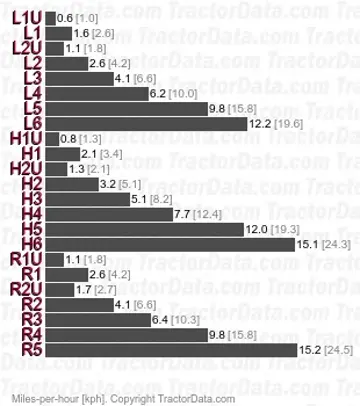

Transmission — 20 forward and 9 reverse fully synchronized
Type | fully synchronized |
Gears | 20 forward and 9 reverse |
Six gears (1-6) in two ranges (low/high), plus reverse range with a underdrive for gears 1 and 2 in both ranges. | |
 | |
Dimensions
CaseIH 1455 XL Tires | |
|---|---|
Standard tires (ag) | Front: 16.9R28. Rear: 20.8R38 |
Dimensions | |
|---|---|
Wheelbase | 110.2 inches
279 cm |
Length | 189 inches
480 cm |
Height (cab) | 115.7 inches
293 cm |
Weight | 11499 lbs
5215 kg |
Clearance (front axle) | 18.5 inches
46 cm |
Front tread | 68.5 to 76.4 inches
173 to 194 cm |
Rear tread | 71.6 to 83.6 inches
181 to 212 cm |
Photos
CaseIH 1455 XL tractor photo
