Massey Ferguson 1134

The Massey Ferguson 1134 is a tractor produced by Massey Ferguson. It is equipped with a 353.9 ci 5.8 L engine. The listed engine power is Diesel (listed): 132 hp / 98.4 kW. Transmission: 12 forward and 4 reverse. Operating weight: 11,135 lbs (2WD) 5050 kg.

Engine Power

Diesel (listed): 132 hp / 98.4 kW

Fuel & Capacities

52.8 gal 199.8 L

Transmission

12 forward and 4 reverse

Operating Weight

11,135 lbs (2WD) 5050 kg

Overview

	1978 - 1990 1004 SeriesRow-Crop tractorLandini built 1004 Series Row-Crop tractor Landini built

Production
Distributor	Massey Ferguson
Manufacturer	Landini
Row-Crop tractor

Massey Ferguson 1134 Engine
Perkins 5.8L 6-cyl diesel
Fuel tank	52.8 gal 199.8 L
Engine details ...

Massey Ferguson 1134 Transmission
12-speed partially synchronized
Transmission details ...

Massey Ferguson 1134 Power
Engine	132 hp 98.4 kW

Mechanical
Two- or four-wheel drive
Power steering
Wet disc brakes
Cab standard

Hydraulics
Total flow	16.4 gpm 62.1 lpm

Tractor hitch
Rear Type	III/II
Rear lift	10584 lbs 4800 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	110 inches 279 cm
Weight	11135 to 12458 pounds
Front tire	11.00-16
Rear tire	18.4-38
Full dimensions and tires ...

References

1114+1134 published in 1981, by Massey Ferguson
1114/1134 published in 1984, by Massey Ferguson

Engine

Engine Detail — 353.9 ci / 5.8 L Diesel

Manufacturer	Perkins AT6.354.4
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	353.9 ci 5.8 L
Bore/Stroke	3.875x5.00 inches 98 x 127 mm
Power	132 hp 98.4 kW
Rated RPM	2400
Torque	340.0 lb-ft 461.0 Nm
Torque RPM	1600

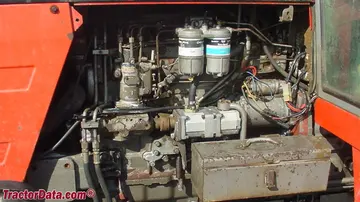

Massey Ferguson 1134 Engine

Image courtesy of Beukeveld Exports BV

Transmission

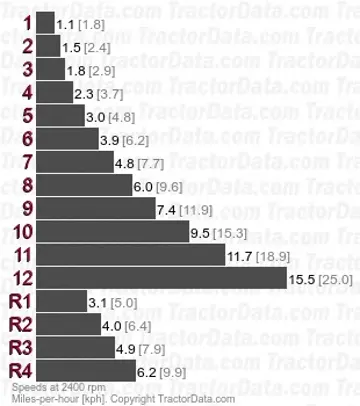

Transmission — 12 forward and 4 reverse partially synchronized

Type	partially synchronized
Gears	12 forward and 4 reverse

Dimensions

Massey Ferguson 1134 Tires
Ag front	11.00-16
Ag rear	18.4-38
Ag front	13.6-28
Ag rear	18.4-38

Dimensions
Wheelbase	110 inches 279 cm
Length	185 inches 469 cm
Width	95 inches 241 cm
Height (cab)	114.2 inches 290 cm
Height (exhaust)	124.4 inches 315 cm
Weight	11,135 lbs (2WD) 5050 kg
	12,458 lbs (4WD) 5650 kg
Ground clearance	17.7 inches 44 cm
Front tread	70.9 inches 180 cm
Rear tread	72.8 to 90.6 inches 184 to 230 cm

Photos

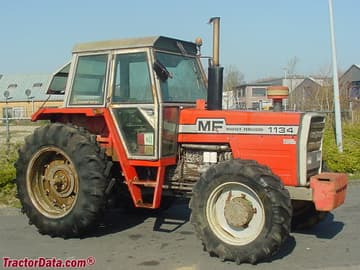

Massey Ferguson 1134

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 1134 based on its 132 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 1134.

Estimated Continuous Field Runtime: 7.7 hrs

Approximately 7.7 hours of continuous field operation at ~75% rated power on a full tank (52.8 gal / 199.9 L).

Estimated 75% Load Fuel Burn~6.9 gal/hr (26 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
