CaseIH 1494

The CaseIH 1494 is a tractor produced by Caseih. It is equipped with a 219 ci 3.6 L engine. The rated power output is 85 hp 63.4 kW. Transmission: Hydra-Shift. Operating weight: 7380 to 8180 pounds.

Overview

	1983 - 1988 94 SeriesUtility tractor
1983 - 1988
94 Series
Utility tractor

Production
Manufacturer	CaseIH
Utility tractor
Original price was $24,100 in 1988

CaseIH 1494 Engine
Case 3.6L 4-cyl diesel
Fuel tank	35.9 gal 135.9 L
Engine details ...

CaseIH 1494 Power
Engine	85 hp 63.4 kW
PTO (claimed)	75 hp 55.9 kW

Mechanical
Two- or four-wheel drive
Power steering
Disc brakes
Cab optional with air-conditioning.

Hydraulics
Type	open center
Pressure	2475 psi 170.7 bar
Valves	1 to 3
Total flow	8.5 gpm 32.2 lpm
	15.3 gpm (tandem) 57.9 lpm
Steering flow	7.7 gpm 29.1 lpm
Steering press.	1850 psi 127.6 bar

Tractor hitch
Rear Type	II
Rear lift (at ends)	5,366 lbs 2434 kg
Rear lift (at 24"/610mm)	3,210 lbs 1456 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	88.5 inches 224 cm
Weight	7380 to 8180 pounds
Front tire	7.50-16
Rear tire	18.4-34
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	45
	65 (heavy duty)
Battery CCA	420
	550 (heavy duty)
Battery volts	12
Battery AH	96
	128 (heavy duty)

References
1985 Farm Equipment Buyer's Guide published by CaseIH

Engine

Engine Detail — 219 ci / 3.6 L Diesel

Manufacturer	Case
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	219 ci 3.6 L
Bore/Stroke	3.937x4.50 inches 100 x 114 mm
Power	85 hp 63.4 kW
Compression	16:1
Rated RPM	2200
Torque	218.3 lb-ft 296.0 Nm
Torque RPM	1600
Starter volts	12
Oil capacity	7.8 qts 7.4 L
Coolant capacity	15 qts 14.2 L

Transmission

Transmission options
12-speed synchromesh
12-speed partial power shift

Transmission — 12 forward and 4 reverse synchromesh

Type	synchromesh
Gears	12 forward and 4 reverse
Oil capacity	33.6 qts 31.8 L

Transmission — Hydra-Shift

Transmission	Hydra-Shift
Type	partial power shift
Gears	12 forward and 4 reverse
Oil capacity	33.6 qts 31.8 L

Dimensions

CaseIH 1494 Tires
2WD Ag front	7.50-16
2WD Ag front	7.50-18
2WD Ag front	11L-15
2WD Ag front	10.00-16
4WD Ag front	12.4-24
Ag rear	18.4-34
	16.9-34
	13.6-38

Dimensions
Wheelbase	88.5 inches 224 cm
Length	147.5 inches 374 cm
Width	75 inches 190 cm
Height (cab)	102 inches 259 cm
4WD Ground clearance	14 inches 35 cm
2WD Ground clearance	16.5 inches 41 cm
2WD Front tread	56 to 80 inches 142 to 203 cm
4WD Front tread	60 to 76 inches 152 to 193 cm
Rear tread	56 to 80 inches 142 to 203 cm

CaseIH 1494 Weight
	7380 lbs (2WD synchro) 3347 kg
	7660 lbs (2WD Hydra-Shift) 3474 kg
	8005 lbs (4WD synchro) 3631 kg
	8180 lbs (4WD Hydra-Shift) 3710 kg
Max Drawbar	3000 lbs 1360 kg
2WD Max front axle	7000 lbs 3175 kg
4WD Max front axle	7500 lbs 3402 kg
Max rear axle	10500 lbs 4762 kg

Photos

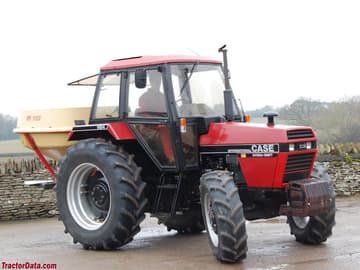

Case IH 1494 with cab, right side.

Open-station Case IH 1497, left side.
