CaseIH 685XL
The CaseIH 685XL is a tractor produced by Caseih. It is equipped with a 238.8 ci 3.9 L engine. The listed engine power is Diesel (listed): 69 hp / 51.5 kW. Transmission: Torque Amplifier. Operating weight: 6700 to 7200 pounds.
Engine Power
Diesel (listed): 69 hp / 51.5 kW
Fuel & Capacities
29.6 gal
112.0 L
Transmission
Torque Amplifier
Operating Weight
6700 to 7200 pounds
Overview
 | 1985 - 1990
85 XL SeriesUtility tractor
85 XL Series
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | CaseIH |
Utility tractor | |
Built in Doncaster, England | |
CaseIH 685XL Engine | |
|---|---|
CaseIH 3.9L 4-cyl diesel | |
Fuel tank | 29.6 gal
112.0 L |
Engine details ...  | |
CaseIH 685XL Power | |
|---|---|
Engine | 69 hp
51.5 kW |
PTO (claimed) | 64.2 hp
47.9 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
Secura cab standard. | |
Hydraulics | |
|---|---|
Pressure | 2500 psi
172.4 bar |
Pump flow | 12.4 gpm
46.9 lpm |
Steering flow | 2.6 gpm
9.8 lpm |
Steering press. | 1550 psi
106.9 bar |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Control | Top-link draft sensing. |
Rear lift | 5250 lbs
2381 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | hydraulic wet disc |
Rear PTO Type | 540/1000 |
Engine RPM | 540@2140 |
1000@2190 | |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 88.2 inches
224 cm |
4WD Wheelbase | 85.4 inches
216 cm |
Weight | 6700 to 7200 pounds |
Front tire | 10.00-16 |
2WD Rear tire | 16.9-34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 45 |
Battery CCA | 420 |
Battery volts | 12 |
Battery AH | 95 |
References | |
|---|---|
 | |
85 Series published in 1985, by CaseIH |
Engine
Engine Detail — 238.8 ci / 3.9 L Diesel
Manufacturer | CaseIH D-239 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 238.8 ci
3.9 L |
Bore/Stroke | 3.875x5.06 inches
98 x 129 mm |
Power | 69 hp
51.5 kW |
Compression | 15:1 |
Rated RPM | 2300 |
Torque | 175.5 lb-ft
238.0 Nm |
Torque RPM | 1600 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
8-speed synchromesh | |
16-speed two-speed power shift |
Transmission — 8 forward and 4 reverse synchromesh
Type | synchromesh |
Gears | 8 forward and 4 reverse |
Clutch | 304mm dry disc |
Four synchronized gears in two ranges, plus reverse range. | |
 | |
Transmission — Torque Amplifier
Transmission | Torque Amplifier |
Type | two-speed power shift |
Gears | 16 forward and 8 reverse |
Clutch | 304mm dry disc |

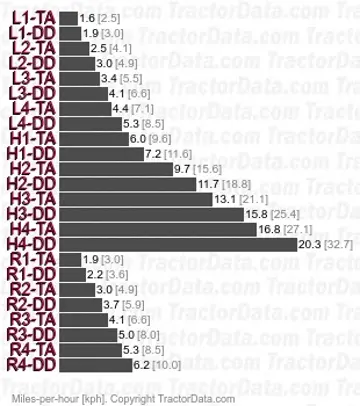

Four synchronized gears (1-4) in two ranges (low/high) plus reverse range. Two-speed torque amplifier provides an on-the-move shift to a lower speed. | |
 | |
Dimensions
CaseIH 685XL Tires | |
|---|---|
2WD Standard tires (ag) | Front: 10.00-16. Rear: 16.9-34 |
4WD Standard tires (ag) | Front: 12.4-24. Rear: 16.9-34 |
Dimensions | |
|---|---|
2WD Wheelbase | 88.2 inches
224 cm |
4WD Wheelbase | 85.4 inches
216 cm |
Length | 147.6 inches
374 cm |
Height (cab) | 104 inches
264 cm |
2WD Weight | 6700 lbs
3039 kg |
4WD Weight | 7200 lbs
3265 kg |
