CaseIH JX1070C

The CaseIH JX1070C is a tractor produced by Caseih. It is equipped with a 179 ci 2.9 L engine. The rated power output is 70 hp 52.2 kW. Transmission: 16 forward and reverse. Operating weight: 6085 to 6615 pounds.

Overview

	2004 - 2008 JXC SeriesUtility tractor
2004 - 2008
JXC Series
Utility tractor

Production
Manufacturer	CaseIH
Utility tractor
Built in Jesi, Italy

CaseIH JX1070C Engine
Iveco 2.9L 3-cyl diesel
Fuel tank	19.5 gal 73.8 L
Engine details ...

CaseIH JX1070C Power
Engine (gross)	70 hp 52.2 kW
PTO (claimed)	57 hp 42.5 kW
Drawbar (tested)	51.0 hp 38.0 kW
PTO (tested)	60.6 hp 45.2 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
Two-post folding ROPS. Cab optional.

Hydraulics
Type	open center
Pressure	2755 psi 190.0 bar
Valves	1 to 4
Pump flow	12.4 gpm 46.9 lpm
	16.9 gpm*Standard with cab, optional with ROPS. 64.0 lpm
Steering flow	7.4 gpm 28.0 lpm
	9.4 gpm*Standard with cab, optional with ROPS. 35.6 lpm

Tractor hitch
Rear Type	II
Control	mechanical lower-link draft sensing.
Rear lift	3960 lbs 1796 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	mechanical dry disc
Rear PTO Type	540 (1.375)

Dimensions & Tires
2WD Wheelbase	83.9 inches 213 cm
4WD Wheelbase	81.3 inches 206 cm
Weight	6085 to 6615 pounds
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	65
Cab Charging amps	85
Battery CCA	730
Battery volts	12

Engine

Engine Detail — 179 ci / 2.9 L Diesel

Manufacturer	Iveco
Configuration	turbocharged diesel, 3-cylinder, liquid-cooled
Displacement	179 ci 2.9 L
Bore/Stroke	4.094x4.528 inches 104 x 115 mm
Power (gross)	70 hp 52.2 kW
Fuel system	direct injection
Air cleaner	dual paper elements
Pre-heating	thermostart
Compression	18.0:1
Rated RPM	2300
Starter volts	12

Transmission

Transmission options
16-speed mechanical shuttle
16-speed power shuttle

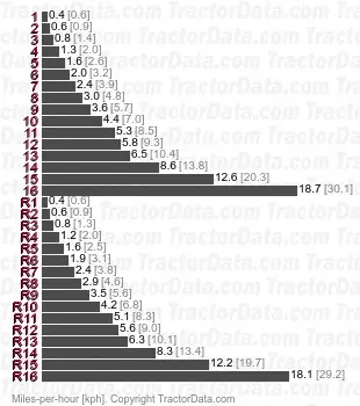

Transmission — 16 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	16 forward and reverse

Transmission — 16 forward and reverse power shuttle

Type	power shuttle
Gears	16 forward and reverse

Dimensions

CaseIH JX1070C Tires

Dimensions
2WD Wheelbase	83.9 inches 213 cm
4WD Wheelbase	81.3 inches 206 cm
2WD Length	155.7 inches 395 cm
4WD Length	154 inches 391 cm
Width	69.6 inches*Minimum width. 176 cm

CaseIH JX1070C Weight
Operating	6,085 lbs (2WD) 2760 kg
	6,615 lbs (4WD) 3000 kg
Ballasted	7,695 lbs 3490 kg

CaseIH JX1070C Height
ROPS	95.6 inches 242 cm
	75.6 inches (lowered) 192 cm
Cab	91.5 inches 232 cm

Tests

OCED Tractor Test 2162
Diesel 16-speed 4WD February 1 - May 1, 2004 Link: OCED Tractor Test 2162 file
PTO performance
Max power	60.6 hp 45.2 kW
Fuel use	3.9 gal/hour 14.8 l/hour
Power at rated engine speed	59.8 hp 44.6 kW
Fuel use	3.9 gal/hour 14.8 l/hour
Power at rated PTO speed	60.2 hp 44.9 kW
Fuel use	3.8 gal/hour 14.4 l/hour
Drawbar performance
Max power	51.0 hp 38.0 kW
Fuel use	3.7 gal/hour 14.0 l/hour
Gear 10 used for power test.

Photos

CaseIH JX1070C tractor photo
