CaseIH 234
The CaseIH 234 is a tractor produced by Caseih. It is equipped with a 51.8 ci 0.8 L engine. Transmission: infinite forward and reverse. Operating weight: 1400 lbs 635 kg.
Fuel & Capacities
Diesel
Transmission
infinite forward and reverse
Operating Weight
1400 lbs
635 kg
Caseih 234 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1985 - 1986
200 SeriesCompact Utility tractorMitsubishi built |
|---|---|
1985 - 1986 | |
200 Series | |
Compact Utility tractor | |
Mitsubishi built | |
1985 - 1986 | |
|---|---|
200 Series | |
Compact Utility tractor | |
Mitsubishi built |
Production | |
|---|---|
Distributor | CaseIH |
Manufacturer | Mitsubishi |
Compact Utility tractor | |
Original price was $7,100 in 1986 | |
CaseIH 234 Engine | |
|---|---|
Mitsubishi 0.8L 3-cyl diesel | |
Engine details ...  |
CaseIH 234 Power | |
|---|---|
PTO (claimed) | 15.2 hp
11.3 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive |
Tractor hitch | |
|---|---|
Rear Type | I |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Weight | 1400 lbs
635 kg |
Front tire | 4.5-10 |
Rear tire | 8-18 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
1985 Farm Equipment Buyer's Guide published by CaseIH |
Engine
| 1985 - 1986
200 SeriesCompact Utility tractorMitsubishi built |
|---|---|
1985 - 1986 | |
200 Series | |
Compact Utility tractor | |
Mitsubishi built | |
1985 - 1986 | |
|---|---|
200 Series | |
Compact Utility tractor | |
Mitsubishi built |
Engine Detail — 51.8 ci / 0.8 L Diesel
Manufacturer | Mitsubishi |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 51.8 ci
0.8 L |
Bore/Stroke | 2.68x3.07 inches
68 x 78 mm |
Rated RPM | 2700 |
Oil capacity | 3.2 qts
3.0 L |
Coolant capacity | 5.2 qts
4.9 L |
Transmission
| 1985 - 1986
200 SeriesCompact Utility tractorMitsubishi built |
|---|---|
1985 - 1986 | |
200 Series | |
Compact Utility tractor | |
Mitsubishi built | |
1985 - 1986 | |
|---|---|
200 Series | |
Compact Utility tractor | |
Mitsubishi built |
Transmission options | |
|---|---|
6-speed gear | |
hydrostatic |
Transmission — 6 forward and 2 reverse gear
Type | gear |
Gears | 6 forward and 2 reverse |
Oil capacity | 12.4 qts
11.7 L |
Three gears plus reverse with high and low ranges. | |
With 8.00-18 rear tires. | |
 | |
Transmission — infinite forward and reverse hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse |
Dimensions
| 1985 - 1986
200 SeriesCompact Utility tractorMitsubishi built |
|---|---|
1985 - 1986 | |
200 Series | |
Compact Utility tractor | |
Mitsubishi built | |
1985 - 1986 | |
|---|---|
200 Series | |
Compact Utility tractor | |
Mitsubishi built |
CaseIH 234 Tires | |
|---|---|
Ag front | 4.5-10 |
Ag rear | 8-18 |
Dimensions | |
|---|---|
Weight | 1400 lbs
635 kg |
Photos

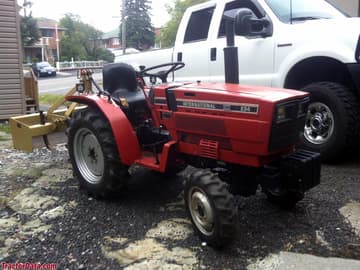

1985 Case IH 234 with 4x4.
1985 Case IH 234 with 4x4.
1985 Case IH 234 with 4x4.
