CaseIH 265

The CaseIH 265 is a tractor produced by Caseih. It is equipped with a 78.7 ci 1.3 L engine. The listed engine power is Diesel (net): 27 hp / 20.1 kW. Transmission: 9 forward and 3 reverse. Operating weight: 2810 lbs 1274 kg.

Engine Power
Diesel (net): 27 hp / 20.1 kW
Fuel & Capacities
5.3 gal 20.1 L
Transmission
9 forward and 3 reverse
Operating Weight
2810 lbs 1274 kg

Overview

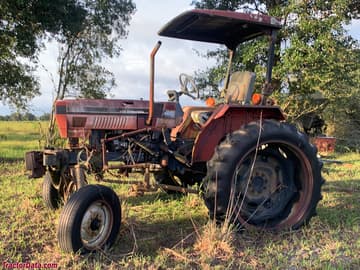

CaseIH 265 tractor photo
1987 - 1991 200 SeriesHigh-Clearance tractor 200 Series High-Clearance tractor
Production
Manufacturer
CaseIH
High-Clearance tractor
Original price was $13,000 in 1991
The Case International 265 offset was designed as a cultivating tractor for vegetable, tobacco, and nursery work. An optional high clearance front axle provided additional ground clearance and was used with 11.2-36 rear tires.
CaseIH 265 Engine
Mitsubishi 1.3L 3-cyl diesel
Engine details ...
CaseIH 265 Power
Engine (net)
27 hp 20.1 kW
PTO (claimed)
24 hp 17.9 kW
Mechanical
Two-wheel drive
Differential lock
mechanical rear
Steering
manual
power optional
Hydraulic wet disc brakes
Two-post folding ROPS.
Capacity
Fuel
5.3 gal 20.1 L
Hydraulic system
9.2 gal 34.8 L
Hydraulics
Type
open center
Capacity
9.2 gal 34.8 L
Valves
0 or 1
Pump flow
4.6 gpm 17.4 lpm
Tractor hitch
Rear Type
I
Rear lift
840 lbs 381 kg
Power Take-off (PTO)
Rear PTO
transmission
live OptOptional
Rear PTO Type
540/1150
Mid PTO Type
2400 OptOptional
Dimensions & Tires
Wheelbase
73.8 inches 187 cm
Weight
2810 lbs 1274 kg
Front tire
5.50-16
Rear tire
12.4-24
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
35
Battery volts
12
Battery AH
65
References
265 references literature
200 Series Tractor/Implement Model Fit-Up published in 1990, by Case IH
Case IH 200 Series tractor never have an off-season published in 1987, by CaseIH
265 Offset Tractor published by CaseIH

Engine

Engine Detail — 78.7 ci / 1.3 L Diesel

Manufacturer
Mitsubishi
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
78.7 ci 1.3 L
Bore/Stroke
3.07x3.54 inches 78 x 90 mm
Power (net)
27 hp 20.1 kW
Air cleaner
dry cyclone type
Rated RPM
2700
Idle RPM
900-2900
Starter volts
12
Oil capacity
4.4 qts 4.2 L
Coolant capacity
6.4 qts 6.1 L

Transmission

Transmission options
9-speed constant mesh
synchromesh

Transmission — 9 forward and 3 reverse constant mesh

Type
constant mesh
Gears
9 forward and 3 reverse
Oil capacity
36.8 qts 34.8 L
Three gears in each of high, medium, low, and reverse ranges.
With 12.4-24 rear tires.
265 constant mesh speeds

Dimensions

CaseIH 265 Tires
Ag front
5.50-16
Ag rear
12.4-24
Ag rear
12.4-24
11.2-28
11.2-36
Lawn/turf front
24x8.50-14
Lawn/turf rear
355/80D20
Dimensions
Wheelbase
73.8 inches 187 cm
Length
109.6 inches 278 cm
117.1 inches (with 3-point hitch) 297 cm
Width
56.6 inches*Minimum width. 143 cm
Height (steering wheel)
69.3 inches 176 cm
Height (ROPS)
90.2 inches 229 cm
Shipping weight
2810 lbs 1274 kg
Ground clearance
22.4 inches (frame) 56 cm
27.2 inches (frame with hi-clear axle) 69 cm
Front tread
42.9 to 66.1 inches 108 to 167 cm
Rear tread
44.0 to 66.6 inches 111 to 169 cm

Photos

CaseIH 265

CaseIH 265

Recommended Implements & Sizing Guide

Engineering recommendations for Caseih 265 based on its 27 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
5 ft (60 in)1.5 mMedium DutyPasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep
54 to 60 in135 - 150 cmMedium DutyThorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih 265.

Estimated Continuous Field Runtime: 3.8 hrs

Approximately 3.8 hours of continuous field operation at ~75% rated power on a full tank (5.3 gal / 20.1 L).

Estimated 75% Load Fuel Burn~1.4 gal/hr (5.3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Caseih 265 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Caseih 265.

Converted Equivalents:

Horsepower (HP)27 hp
Kilowatts (kW)20.1 kW
Metric Horsepower (PS / CV)27.4 PS

Direct Competitor Comparison

Compare CaseIH 265 against same-era industry alternatives in the same horsepower class.

Current Model
Caseih

CaseIH 265

Engine Power:Diesel (net): 27 hp / 20.1 kW
★ Baseline Reference
Massey FergusonMarket Competitor

Massey Ferguson 1225

Engine Power:24.3
Production Years:1999 - 2002
View Full Specs→
DeereMarket Competitor

Deere 3025D

Engine Power:24.4
Production Years:2019 - 2026
View Full Specs→
New HollandMarket Competitor

New Holland Workmaster 25

Engine Power:24.4
Production Years:2018 - 2026
View Full Specs→
AGCOMarket Competitor

AGCO ST25

Engine Power:24.3
Production Years:2001 - 2004
View Full Specs→
