CaseIH 3220

The CaseIH 3220 is a tractor produced by Caseih. It is equipped with a 179 ci 2.9 L engine. The listed engine power is Diesel (net): 50 hp / 37.3 kW; Diesel (gross): 53 hp / 39.5 kW. Transmission: 16 forward and 8 reverse. Operating weight: 5617 to 6327 pounds.

Overview

	1994 - 1997 3200 Utility SeriesUtility tractor 3200 Utility Series Utility tractor

Production
Manufacturer	CaseIH
Utility tractor
Built in Doncaster, England
Original price was $20,000 in 1997

CaseIH 3220 Engine
Case 2.9L 3-cyl diesel
Engine details ...

CaseIH 3220 Power
Engine (gross)	53 hp 39.5 kW
Engine (net)	50 hp 37.3 kW
PTO (claimed)	42 hp 31.3 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Differential lock	mechanical
Power steering
Hydraulic wet disc brakes
Two-post ROPS.

Capacity
Fuel	20 gal 75.7 L
2WD Hydraulic system	9 gal 34.1 L
4WD Hydraulic system	9.7 gal 36.7 L

Hydraulics
Type	open center
2WD Capacity	9 gal 34.1 L
4WD Capacity	9.7 gal 36.7 L
Pressure	2500 psi 172.4 bar
Valves	0 to 3
Total flow	14.7 gpm 55.6 lpm

Tractor hitch
Rear Type	II
Control	draft and position control
Rear lift	3,665 lbs 1662 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet disc
Rear PTO Type	540
	540/1000 (optional)

Dimensions & Tires
2WD Wheelbase	79.8 inches 202 cm
4WD Wheelbase	83.2 inches 211 cm
Weight	5617 to 6327 pounds
Front tire	7.50-16
2WD Rear tire	16.9-28
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	45
	60 (optional)
Battery CCA	650
	750 (optional)
Battery volts	12

References
New 3200 and 4200 Series Tractors published in 1994, by Case IH
3200/4200 Series Tractors published in 1994, by Case IH

Engine

Engine Detail — 179 ci / 2.9 L Diesel

Manufacturer	Case D179
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	179 ci 2.9 L
Power (net)	50 hp 37.3 kW
Power (gross)	53 hp 39.5 kW
Air cleaner	dry
Pre-heating	thermostart (optional)
	ether (optional)
Rated RPM	2180
Starter volts	12
Oil capacity	7.9 qts 7.5 L
Oil change	200 h
Coolant capacity	12 qts 11.4 L

Transmission

Transmission options
8-speed synchromesh
8-speed shuttle
16-speed partial power shift
16-speed synchromesh creeper

Transmission — 8 forward and 4 reverse synchromesh

Type	synchromesh
Gears	8 forward and 4 reverse
Clutch	11-inch dry cerametallic
	12-inch dry cerametallic (optional)
2WD Oil capacity	35.9 qts 34.0 L
4WD Oil capacity	38.6 qts 36.5 L
Four gears (1-4) in two ranges (L/H) plus reverse range.
With 13.6x28 rear tires.

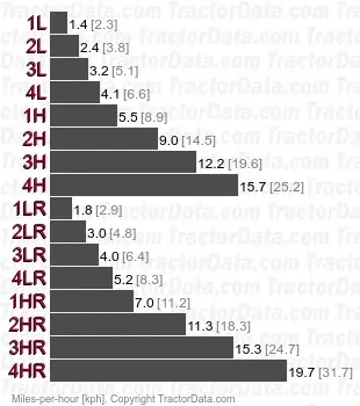

Transmission — 8 forward and reverse shuttle

Type	shuttle
Gears	8 forward and reverse
Clutch	11-inch dry cerametallic
	12-inch dry cerametallic (optional)
2WD Oil capacity	35.9 qts 34.0 L
4WD Oil capacity	38.6 qts 36.5 L
With 13.6x28 rear tires.

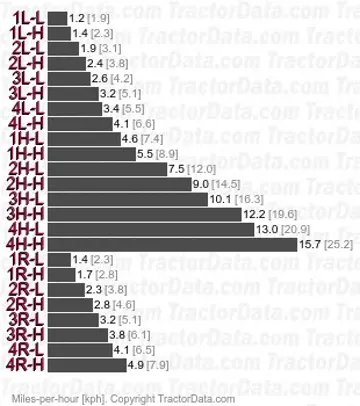

Transmission — 16 forward and 8 reverse partial power shift

Type	partial power shift
Gears	16 forward and 8 reverse
Clutch	11-inch dry cerametallic
	12-inch dry cerametallic (optional)
2WD Oil capacity	35.9 qts 34.0 L
4WD Oil capacity	38.6 qts 36.5 L
Four gears (1-4) in two ranges (L/H) plus reverse with high-low (rabbit/turtle) power-shift activated by dashboard toggle switch.
With 13.6x28 rear tires.

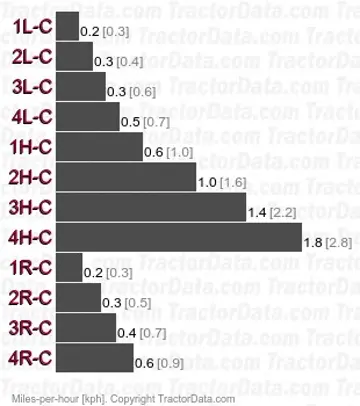

Transmission — 16 forward and 8 reverse synchromesh creeper

Type	synchromesh creeper
Gears	16 forward and 8 reverse
Clutch	11-inch dry cerametallic
	12-inch dry cerametallic (optional)
2WD Oil capacity	35.9 qts 34.0 L
4WD Oil capacity	38.6 qts 36.5 L
Adds creeper range to the standard synchromesh gear box. Four gears (1-4) in two ranges (L/H) plus reverse in normal and creeper modes.
With 13.6x28 rear tires. Speeds in direct mode same as regular synchromesh transmission.

Dimensions

CaseIH 3220 Tires
2WD Standard tires (ag)	Front: 7.50-16. Rear: 16.9-28
4WD Standard tires (ag)	Front: 8.3-24. Rear: 16.9-28

Dimensions
2WD Wheelbase	79.8 inches 202 cm
4WD Wheelbase	83.2 inches 211 cm
Front tread	52 to 77 inches 132 to 195 cm (2WD straight)
Front tread	48 to 80 inches 121 to 203 cm (2WD sweptback)
Front tread	52 to 80 inches 132 to 203 cm (2WD low)
Front tread	52 to 77 inches 132 to 195 cm (2WD low-low)
Front tread	88 to 96 inches 223 to 243 cm (tobacco)

CaseIH 3220 Weight
2WD Shipping	5617 lbs 2547 kg
4WD Shipping	6327 lbs 2869 kg
Max capacity	10150 lbs 4604 kg

Photos

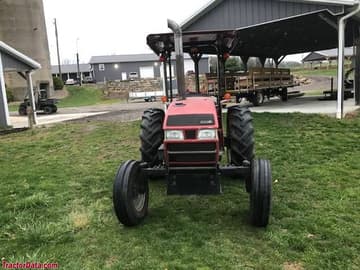

CaseIH 3220

CaseIH 3220

CaseIH 3220

CaseIH 3220
